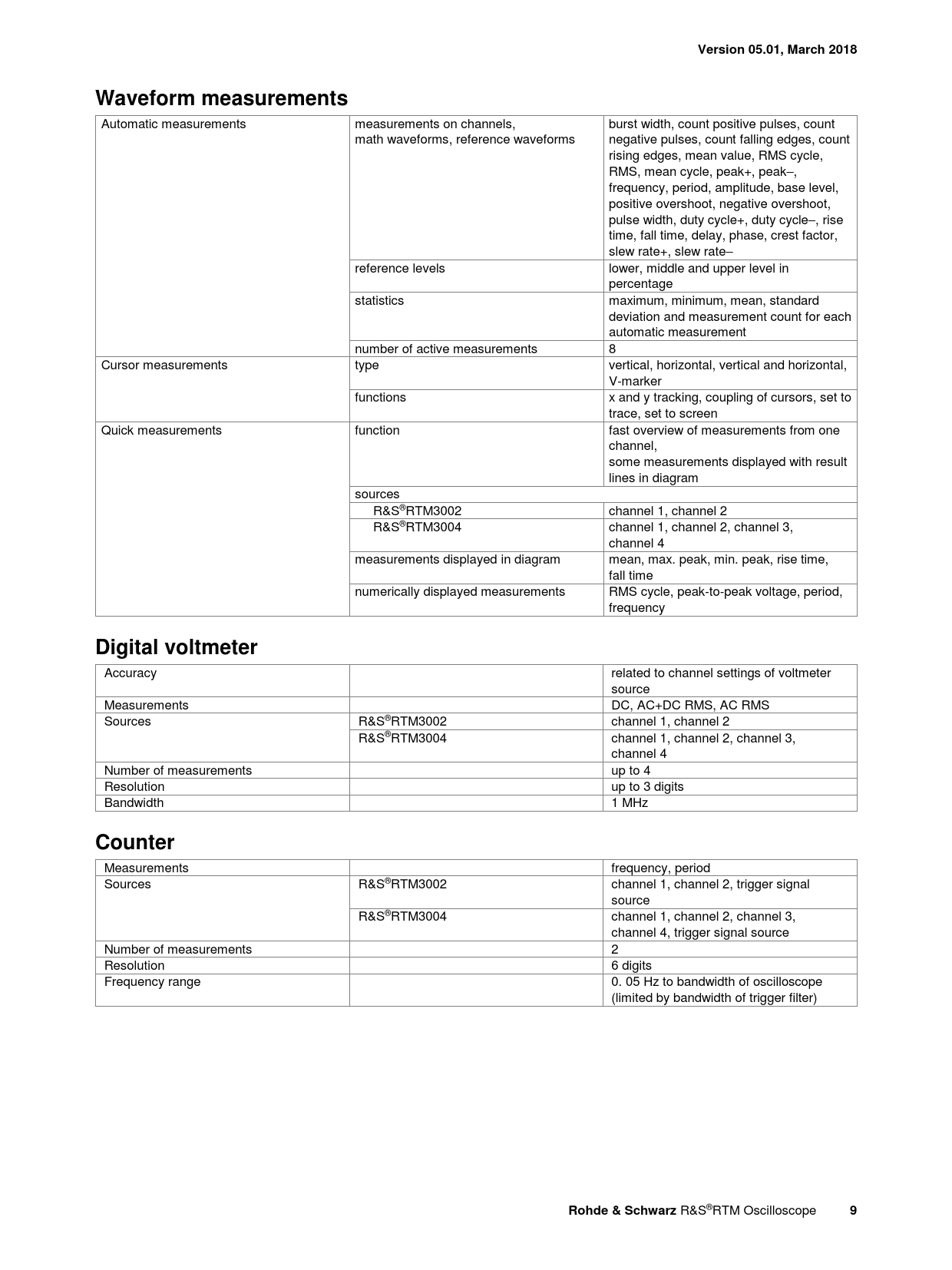

Version 05.01, March 2018. Waveform measurements. Digital voltmeter. Counter. Rohde & Schwarz
Text Version of Document
Version 05.01, March 2018 Waveform measurements
Automatic measurements measurements on channels, burst width, count positive pulses, count math waveforms, reference waveforms negative pulses, count falling edges, count rising edges, mean value, RMS cycle, RMS, mean cycle, peak+, peak–, frequency, period, amplitude, base level, positive overshoot, negative overshoot, pulse width, duty cycle+, duty cycle–, rise time, fall time, delay, phase, crest factor, slew rate+, slew rate– reference levels lower, middle and upper level in percentage statistics maximum, minimum, mean, standard deviation and measurement count for each automatic measurement number of active measurements 8 Cursor measurements type vertical, horizontal, vertical and horizontal, V-marker functions x and y tracking, coupling of cursors, set to trace, set to screen Quick measurements function fast overview of measurements from one channel, some measurements displayed with result lines in diagram sources R&S®RTM3002 channel 1, channel 2 R&S®RTM3004 channel 1, channel 2, channel 3, channel 4 measurements displayed in diagram mean, max. peak, min. peak, rise time, fall time numerically displayed measurements RMS cycle, peak-to-peak voltage, period, frequency
Digital voltmeter
Accuracy related to channel settings of voltmeter source Measurements DC, AC+DC RMS, AC RMS Sources R&S®RTM3002 channel 1, channel 2 R&S®RTM3004 channel 1, channel 2, channel 3, channel 4 Number of measurements up to 4 Resolution up to 3 digits Bandwidth 1 MHz
Counter
Measurements frequency, period Sources R&S®RTM3002 channel 1, channel 2, trigger signal source R&S®RTM3004 channel 1, channel 2, channel 3, channel 4, trigger signal source Number of measurements 2 Resolution 6 digits Frequency range 0. 05 Hz to bandwidth of oscilloscope (limited by bandwidth of trigger filter)
