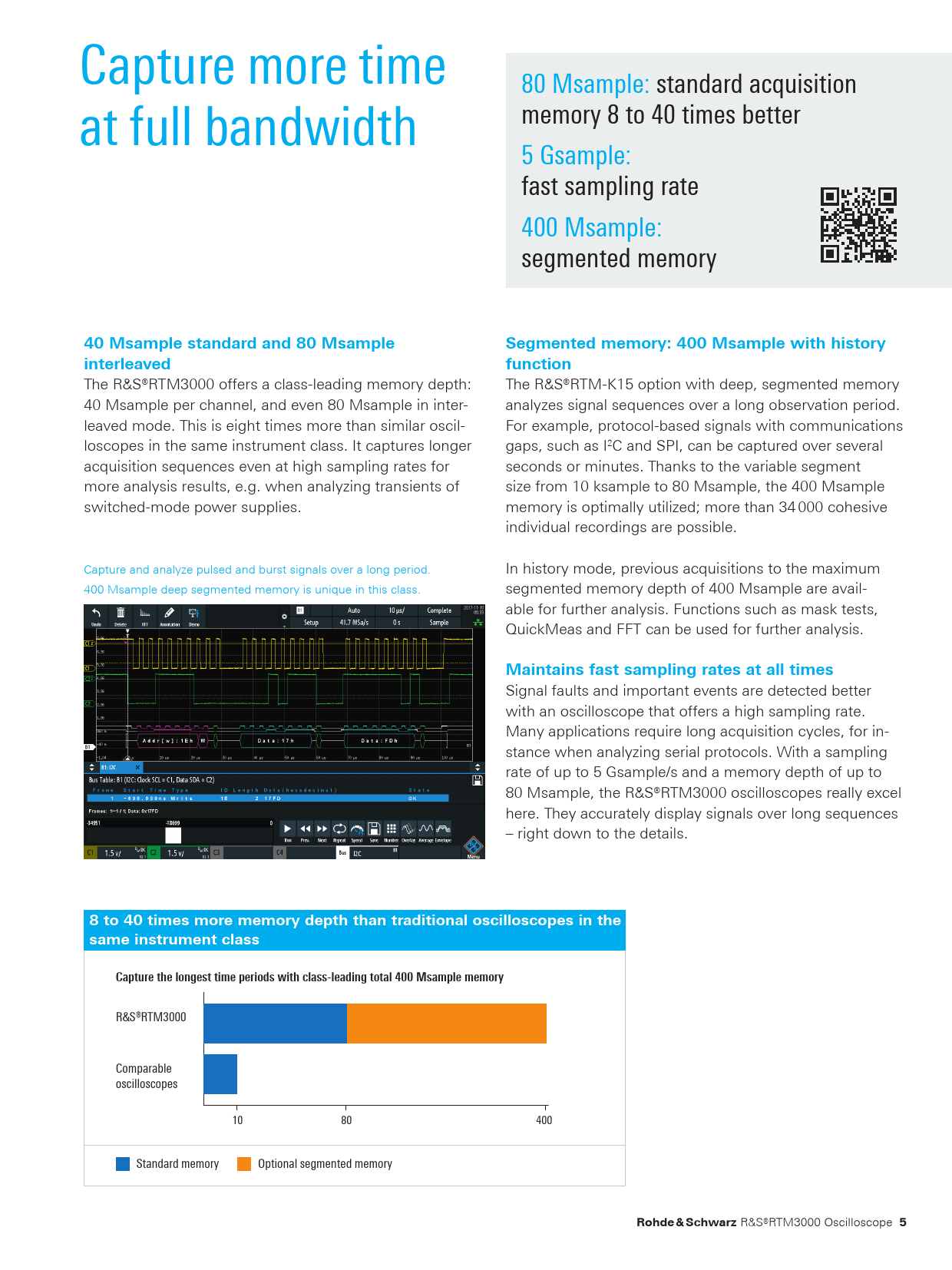

40 Msample standard and 80 Msample. Segmented memory: 400 Msample with history. interleaved. function
Text Version of Document
Capture more time 80 Msample: standard acquisition at full bandwidth memory 8 to 40 times better 5 Gsample: fast sampling rate 400 Msample: segmented memory
40 Msample standard and 80 Msample Segmented memory: 400 Msample with history interleaved function
The R&S®RTM3000 offers a class-leading memory depth: The R&S®RTM-K15 option with deep, segmented memory 40 Msample per channel, and even 80 Msample in inter- analyzes signal sequences over a long observation period. leaved mode. This is eight times more than similar oscil- For example, protocol-based signals with communications loscopes in the same instrument class. It captures longer gaps, such as I2C and SPI, can be captured over several acquisition sequences even at high sampling rates for seconds or minutes. Thanks to the variable segment more analysis results, e.g. when analyzing transients of size from 10 ksample to 80 Msample, the 400 Msample switched-mode power supplies. memory is optimally utilized; more than 34 000 cohesive individual recordings are possible. Capture and analyze pulsed and burst signals over a long period. In history mode, previous acquisitions to the maximum 400 Msample deep segmented memory is unique in this class. segmented memory depth of 400 Msample are avail- able for further analysis. Functions such as mask tests, QuickMeas and FFT can be used for further analysis.
Maintains fast sampling rates at all times
Signal faults and important events are detected better with an oscilloscope that offers a high sampling rate. Many applications require long acquisition cycles, for in- stance when analyzing serial protocols. With a sampling rate of up to 5 Gsample/s and a memory depth of up to 80 Msample, the R&S®RTM3000 oscilloscopes really excel here. They accurately display signals over long sequences – right down to the details.
8 to 40 times more memory depth than traditional oscilloscopes in the same instrument class Capture the longest time periods with class-leading total 400 Msample memory
¸RTM3000 Comparable oscilloscopes 10 80 400 Standard memory Optional segmented memory
