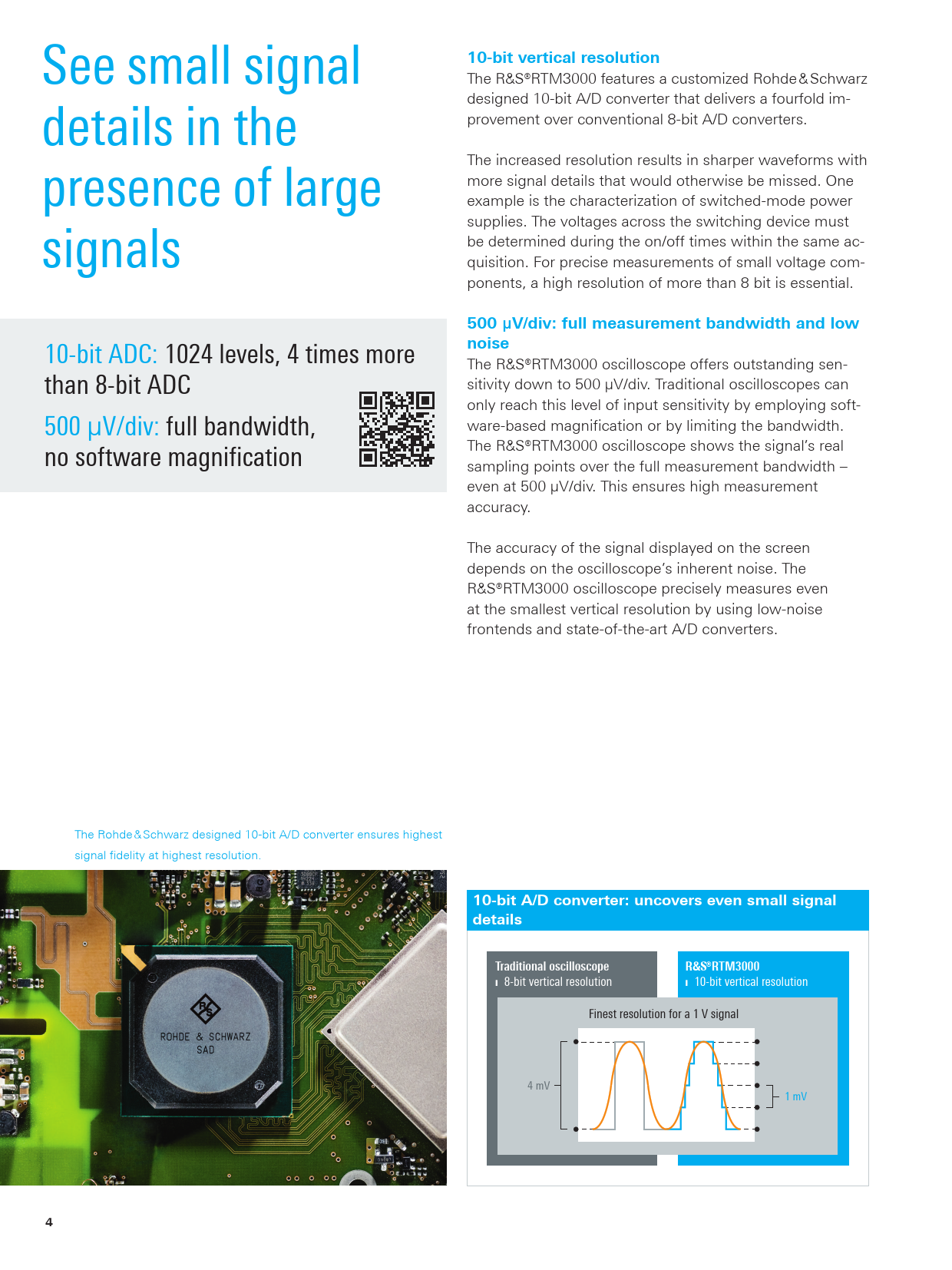

10-bit vertical resolution. 500 µV/div: full measurement bandwidth and low noise
Text Version of Document
10-bit vertical resolution
See small signal The R&S®RTM3000 features a customized Rohde & Schwarz designed 10-bit A/D converter that delivers a fourfold im- provement over conventional 8-bit A/D converters. details in the The increased resolution results in sharper waveforms with more signal details that would otherwise be missed. One presence of large example is the characterization of switched-mode power supplies. The voltages across the switching device must be determined during the on/off times within the same ac- signals quisition. For precise measurements of small voltage com- ponents, a high resolution of more than 8 bit is essential.
500 µV/div: full measurement bandwidth and low noise
10-bit ADC: 1024 levels, 4 times more The R&S®RTM3000 oscilloscope offers outstanding sen- sitivity down to 500 µV/div. Traditional oscilloscopes can than 8-bit ADC only reach this level of input sensitivity by employing soft- ware-based magnification or by limiting the bandwidth. 500 µV/div: full bandwidth, The R&S®RTM3000 oscilloscope shows the signal’s real no software magnification sampling points over the full measurement bandwidth – even at 500 µV/div. This ensures high measurement accuracy. The accuracy of the signal displayed on the screen depends on the oscilloscope’s inherent noise. The R&S®RTM3000 oscilloscope precisely measures even at the smallest vertical resolution by using low-noise frontends and state-of-the-art A/D converters. The Rohde & Schwarz designed 10-bit A/D converter ensures highest signal fidelity at highest resolution.
10-bit A/D converter: uncovers even small signal details Traditional oscilloscope ¸RTM3000
❙ 8-bit vertical resolution ❙ 10-bit vertical resolution Finest resolution for a 1 V signal 4 mV 1 mV
