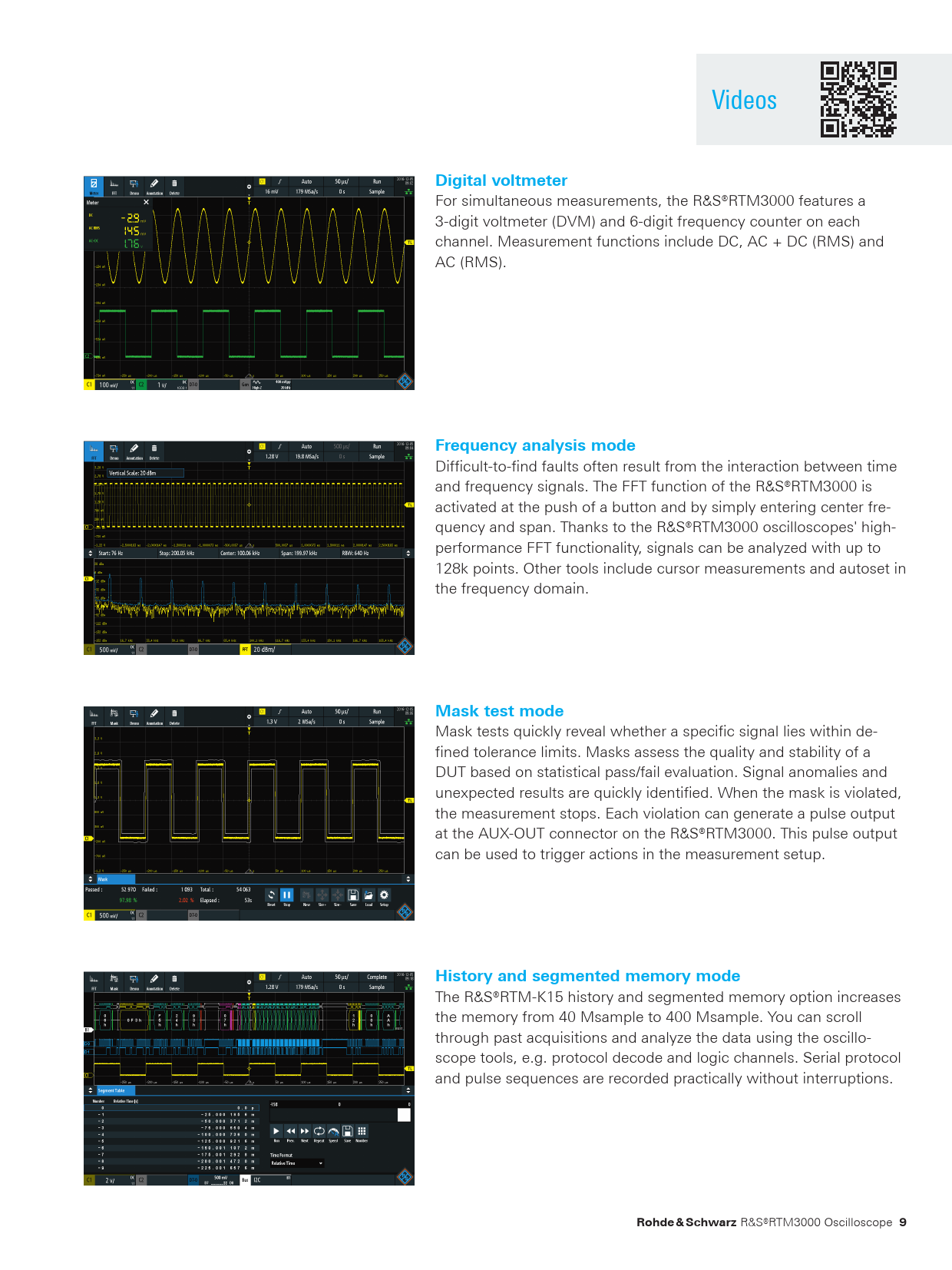

Digital voltmeter. Frequency analysis mode. Mask test mode. History and segmented memory mode. Rohde & Schwarz
Text Version of Document
Videos
Digital voltmeter
For simultaneous measurements, the R&S®RTM3000 features a 3-digit voltmeter (DVM) and 6-digit frequency counter on each channel. Measurement functions include DC, AC + DC (RMS) and AC (RMS).
Frequency analysis mode
Difficult-to-find faults often result from the interaction between time and frequency signals. The FFT function of the R&S®RTM3000 is activated at the push of a button and by simply entering center fre- quency and span. Thanks to the R&S®RTM3000 oscilloscopes' high- performance FFT functionality, signals can be analyzed with up to 128k points. Other tools include cursor measurements and autoset in the frequency domain.
Mask test mode
Mask tests quickly reveal whether a specific signal lies within de- fined tolerance limits. Masks assess the quality and stability of a DUT based on statistical pass/fail evaluation. Signal anomalies and unexpected results are quickly identified. When the mask is violated, the measurement stops. Each violation can generate a pulse output at the AUX-OUT connector on the R&S®RTM3000. This pulse output can be used to trigger actions in the measurement setup.
History and segmented memory mode
The R&S®RTM-K15 history and segmented memory option increases the memory from 40 Msample to 400 Msample. You can scroll through past acquisitions and analyze the data using the oscillo- scope tools, e.g. protocol decode and logic channels. Serial protocol and pulse sequences are recorded practically without interruptions.
Rohde & Schwarz
R&S®RTM3000 Oscilloscope
9
RTM3000_bro_en_5214-9144-12_v0402.indd 9 01.03.2018 08:46:06
