Protocol aware triggering and decoding for serial buses. Segmented memory for long time captures
Text Version of Document
Protocol analysis: efficiently debug serial buses
Protocol aware triggering and decoding for serial buses
Counting 1s and 0s to decode a serial bus is tedious and error-prone. The R&S®RTA4000 automates this process by decoding the waveforms into a specific protocol. In addi- tion, protocol aware triggering directly triggers on specific parts of a packet or frame.
Segmented memory for long time captures
Standard segmented memory is ideal for serial protocols. It allows you to capture only relevant packets/frames and ignore the long idle time in between packets. With 1 Gsample of segmented memory available, you can cap- ture more than 87 000 timestamped packets/frames.
Table view of packets/frames
A table view allows you to see a high-level representation of all captured packets. You can also export the table.
Supported buses

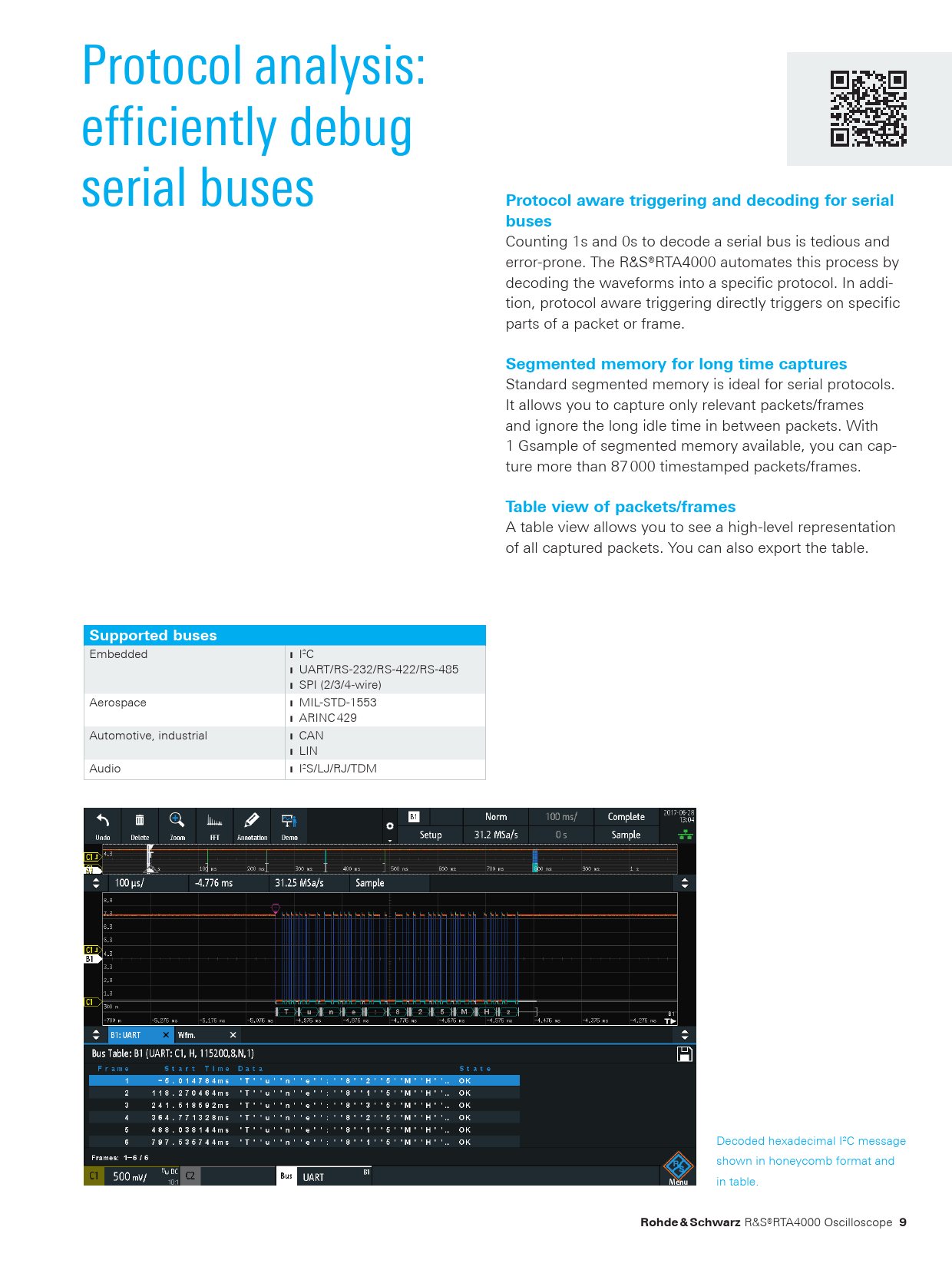

Embedded ❙ I2C ❙ UART/RS-232/RS-422/RS-485 ❙ SPI (2/3/4-wire) Aerospace ❙ MIL-STD-1553 ❙ ARINC 429 Automotive, industrial ❙ CAN ❙ LIN Audio ❙ I2S/LJ/RJ/TDM Decoded hexadecimal I²C message shown in honeycomb format and in table.
