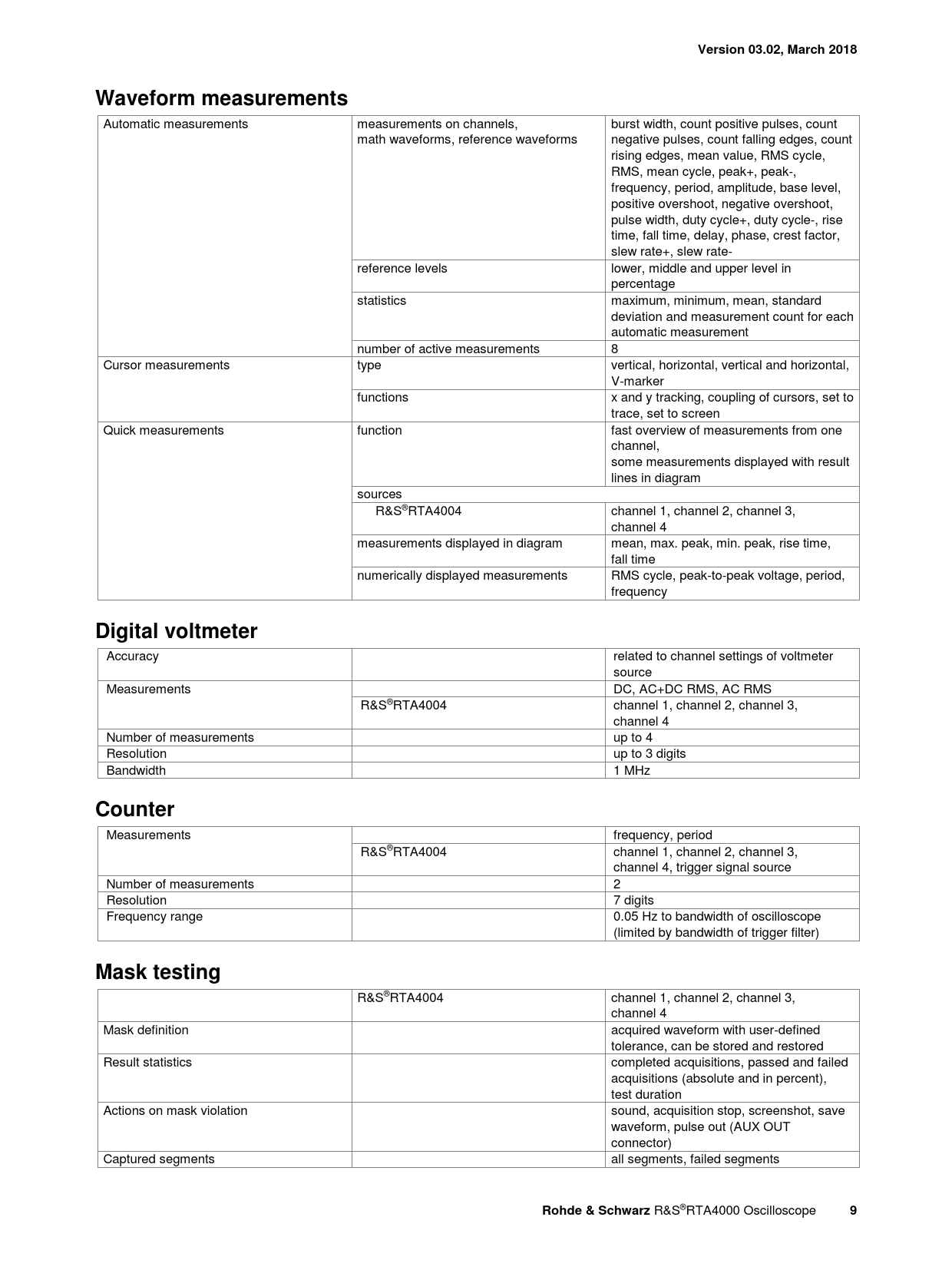

Version 03.02, March 2018. Waveform measurements. Digital voltmeter. Counter. Mask testing. Rohde & Schwarz
Text Version of Document
Version 03.02, March 2018 Waveform measurements
Automatic measurements measurements on channels, burst width, count positive pulses, count math waveforms, reference waveforms negative pulses, count falling edges, count rising edges, mean value, RMS cycle, RMS, mean cycle, peak+, peak-, frequency, period, amplitude, base level, positive overshoot, negative overshoot, pulse width, duty cycle+, duty cycle-, rise time, fall time, delay, phase, crest factor, slew rate+, slew rate- reference levels lower, middle and upper level in percentage statistics maximum, minimum, mean, standard deviation and measurement count for each automatic measurement number of active measurements 8 Cursor measurements type vertical, horizontal, vertical and horizontal, V-marker functions x and y tracking, coupling of cursors, set to trace, set to screen Quick measurements function fast overview of measurements from one channel, some measurements displayed with result lines in diagram sources R&S®RTA4004 channel 1, channel 2, channel 3, channel 4 measurements displayed in diagram mean, max. peak, min. peak, rise time, fall time numerically displayed measurements RMS cycle, peak-to-peak voltage, period, frequency
Digital voltmeter
Accuracy related to channel settings of voltmeter source Measurements DC, AC+DC RMS, AC RMS R&S®RTA4004 channel 1, channel 2, channel 3, channel 4 Number of measurements up to 4 Resolution up to 3 digits Bandwidth 1 MHz
Counter
Measurements frequency, period R&S®RTA4004 channel 1, channel 2, channel 3, channel 4, trigger signal source Number of measurements 2 Resolution 7 digits Frequency range 0.05 Hz to bandwidth of oscilloscope (limited by bandwidth of trigger filter)
Mask testing
R&S®RTA4004 channel 1, channel 2, channel 3, channel 4 Mask definition acquired waveform with user-defined tolerance, can be stored and restored Result statistics completed acquisitions, passed and failed acquisitions (absolute and in percent), test duration Actions on mask violation sound, acquisition stop, screenshot, save waveform, pulse out (AUX OUT connector) Captured segments all segments, failed segments
