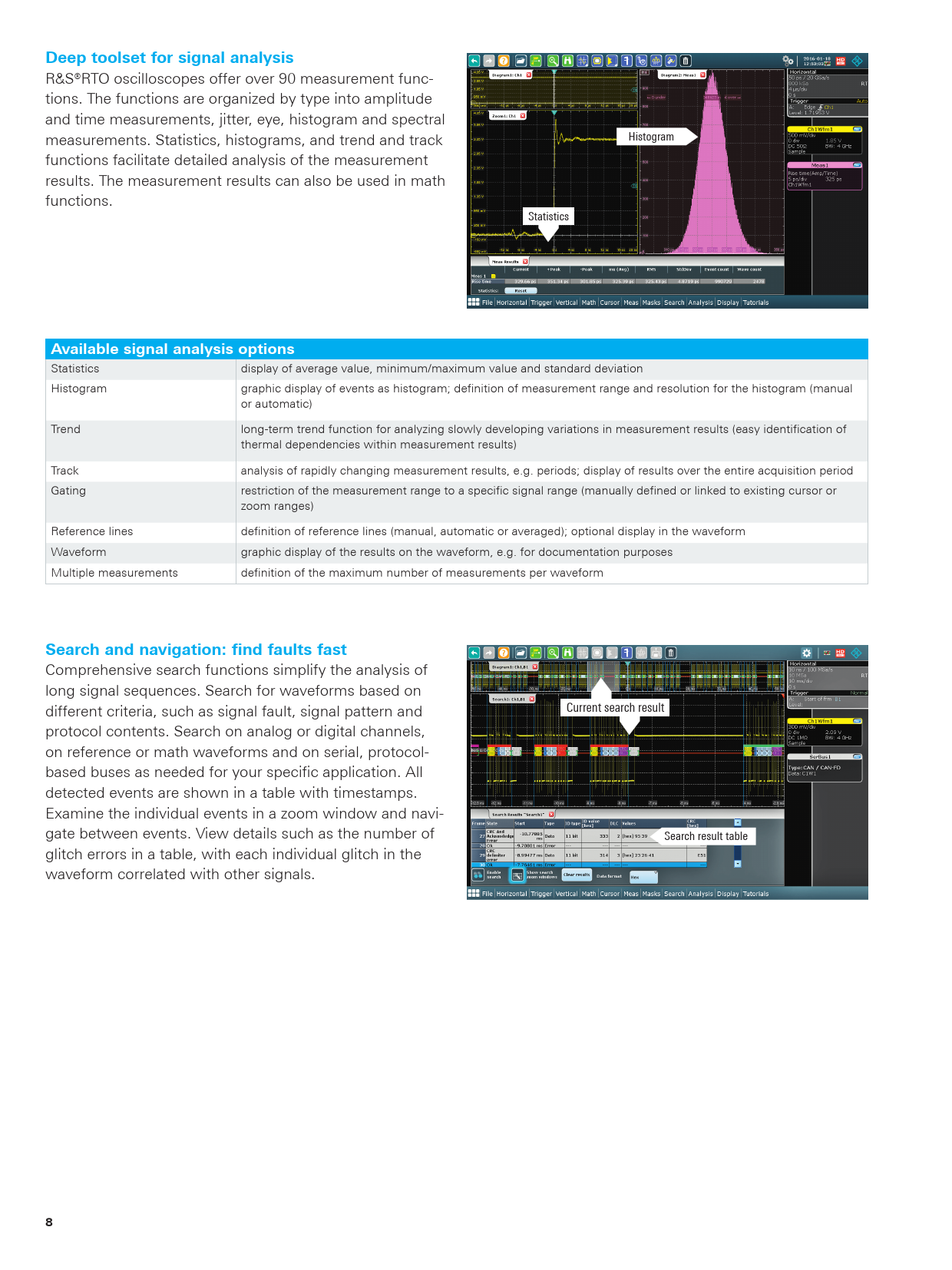

Deep toolset for signal analysis. Available signal analysis options. Search and navigation: find faults fast
Text Version of Document
Deep toolset for signal analysis
R&S®RTO oscilloscopes offer over 90 measurement func- tions. The functions are organized by type into amplitude and time measurements, jitter, eye, histogram and spectral Histogram measurements. Statistics, histograms, and trend and track functions facilitate detailed analysis of the measurement results. The measurement results can also be used in math functions. Statistics
Available signal analysis options
Statistics display of average value, minimum/maximum value and standard deviation Histogram graphic display of events as histogram; definition of measurement range and resolution for the histogram (manual or automatic) Trend long-term trend function for analyzing slowly developing variations in measurement results (easy identification of thermal dependencies within measurement results) Track analysis of rapidly changing measurement results, e.g. periods; display of results over the entire acquisition period Gating restriction of the measurement range to a specific signal range (manually defined or linked to existing cursor or zoom ranges) Reference lines definition of reference lines (manual, automatic or averaged); optional display in the waveform Waveform graphic display of the results on the waveform, e.g. for documentation purposes Multiple measurements definition of the maximum number of measurements per waveform
Search and navigation: find faults fast
Comprehensive search functions simplify the analysis of long signal sequences. Search for waveforms based on Current search result different criteria, such as signal fault, signal pattern and protocol contents. Search on analog or digital channels, on reference or math waveforms and on serial, protocol- based buses as needed for your specific application. All detected events are shown in a table with timestamps. Examine the individual events in a zoom window and navi- gate between events. View details such as the number of Search result table glitch errors in a table, with each individual glitch in the waveform correlated with other signals.
8
RTO2000_bro_en_3607-2684-12_v0901.indd 8 23.11.2017 14:54:13
