Datasheet FSW-K106, FSV-K106, FPS-K106, VSE-K106 Narrowband IoT (Rohde&Schwarz) - 5
| Manufacturer | Rohde&Schwarz |
| Description | EUTRA/LTE NB-IoT Measurement Application |
| Pages / Page | 8 / 5 — Version 03.01, October 2017. Measurement parameters downlink |
| Revision | 03.01 |
| File Format / Size | PDF / 1.5 Mb |
| Document Language | English |

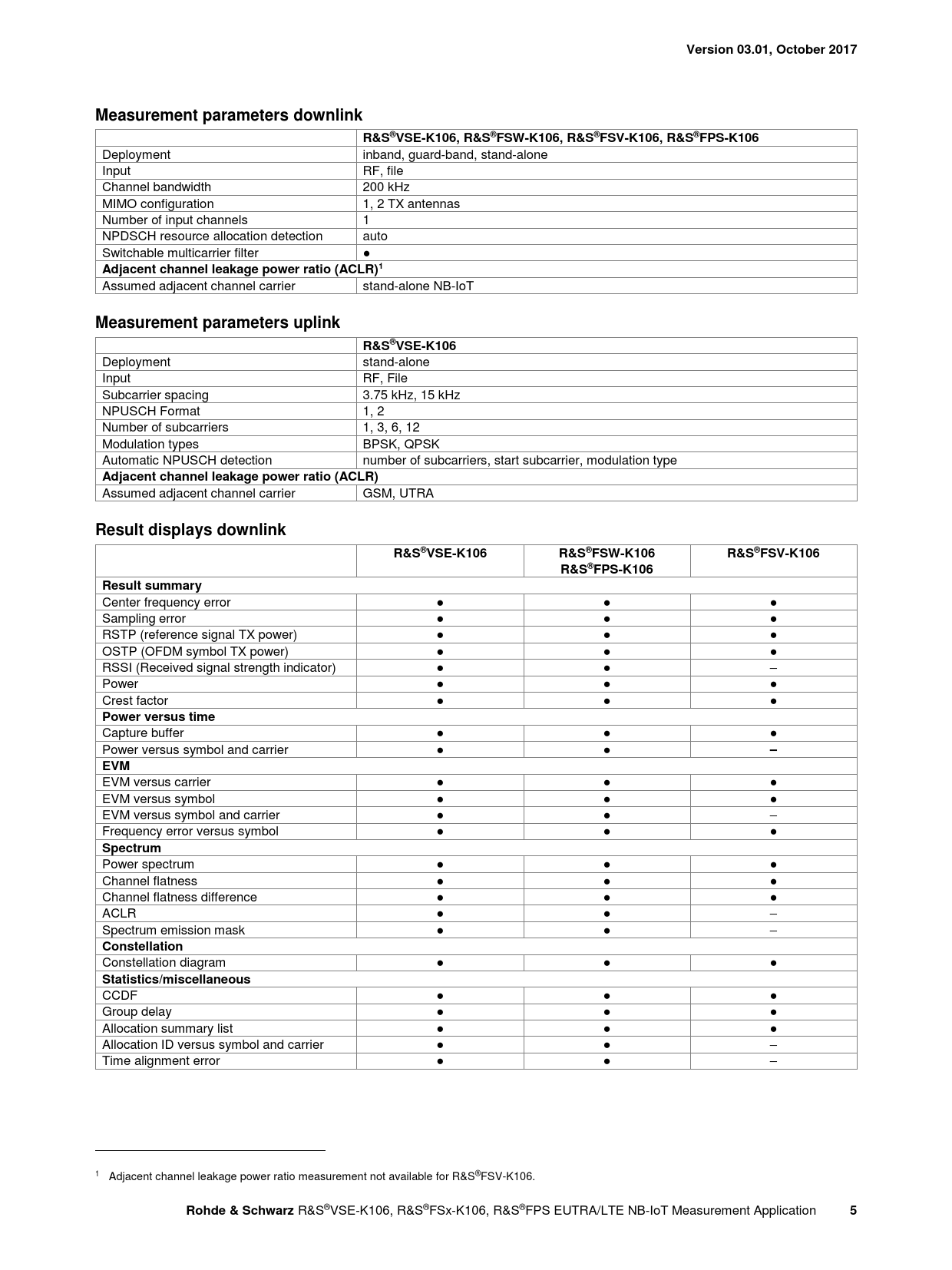

Version 03.01, October 2017. Measurement parameters downlink
Text Version of Document
Version 03.01, October 2017 Measurement parameters downlink R&S®VSE-K106, R&S®FSW-K106, R&S®FSV-K106, R&S®FPS-K106
Deployment inband, guard-band, stand-alone Input RF, file Channel bandwidth 200 kHz MIMO configuration 1, 2 TX antennas Number of input channels 1 NPDSCH resource allocation detection auto Switchable multicarrier filter ●
Adjacent channel leakage power ratio (ACLR)1
Assumed adjacent channel carrier stand-alone NB-IoT
Measurement parameters uplink R&S®VSE-K106
Deployment stand-alone Input RF, File Subcarrier spacing 3.75 kHz, 15 kHz NPUSCH Format 1, 2 Number of subcarriers 1, 3, 6, 12 Modulation types BPSK, QPSK Automatic NPUSCH detection number of subcarriers, start subcarrier, modulation type
Adjacent channel leakage power ratio (ACLR)
Assumed adjacent channel carrier GSM, UTRA
Result displays downlink R&S®VSE-K106 R&S®FSW-K106 R&S®FSV-K106 R&S®FPS-K106 Result summary
Center frequency error ● ● ● Sampling error ● ● ● RSTP (reference signal TX power) ● ● ● OSTP (OFDM symbol TX power) ● ● ● RSSI (Received signal strength indicator) ● ● – Power ● ● ● Crest factor ● ● ●
Power versus time
Capture buffer
● ● ●
Power versus symbol and carrier
● ● – EVM
EVM versus carrier ● ● ● EVM versus symbol ● ● ● EVM versus symbol and carrier ● ● – Frequency error versus symbol ● ● ●
Spectrum
Power spectrum ● ● ● Channel flatness ● ● ● Channel flatness difference ● ● ● ACLR ● ● – Spectrum emission mask ● ● –
Constellation
Constellation diagram ● ● ●
Statistics/miscellaneous
CCDF ● ● ● Group delay ● ● ● Allocation summary list ● ● ● Allocation ID versus symbol and carrier ● ● – Time alignment error ● ● – 1 Adjacent channel leakage power ratio measurement not available for R&S®FSV-K106.
