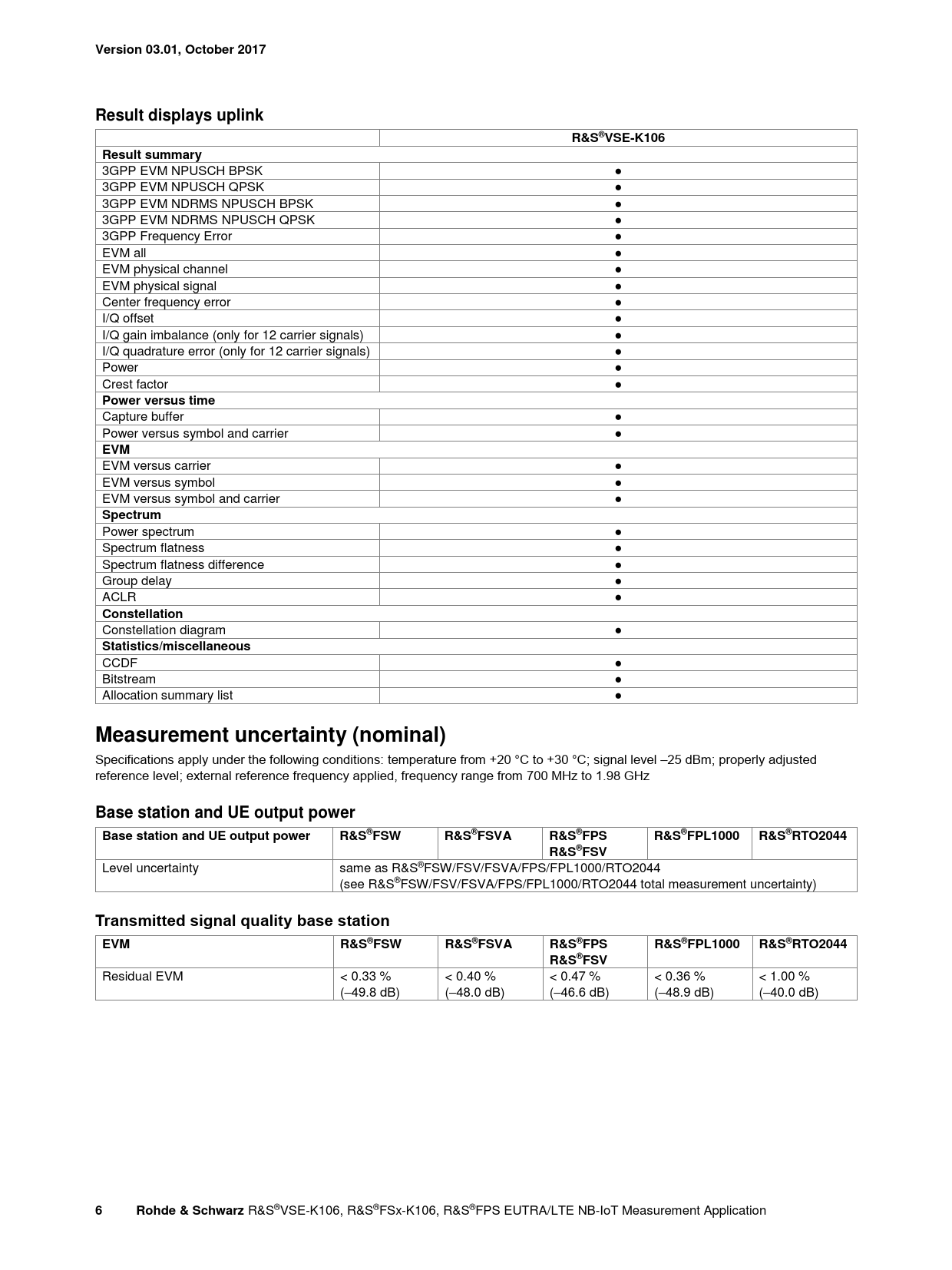

Version 03.01, October 2017. Result displays uplink. R&S®VSE-K106. Result summary. Power versus time. EVM. Spectrum
Text Version of Document
Version 03.01, October 2017 Result displays uplink R&S®VSE-K106 Result summary
3GPP EVM NPUSCH BPSK ● 3GPP EVM NPUSCH QPSK ● 3GPP EVM NDRMS NPUSCH BPSK ● 3GPP EVM NDRMS NPUSCH QPSK ● 3GPP Frequency Error ● EVM all ● EVM physical channel ● EVM physical signal ● Center frequency error ● I/Q offset ● I/Q gain imbalance (only for 12 carrier signals) ● I/Q quadrature error (only for 12 carrier signals) ● Power ● Crest factor ●
Power versus time
Capture buffer
●
Power versus symbol and carrier
● EVM
EVM versus carrier ● EVM versus symbol ● EVM versus symbol and carrier ●
Spectrum
Power spectrum ● Spectrum flatness ● Spectrum flatness difference ● Group delay ● ACLR ●
Constellation
Constellation diagram ●
Statistics/miscellaneous
CCDF ● Bitstream ● Allocation summary list ●
Measurement uncertainty (nominal)
Specifications apply under the following conditions: temperature from +20 °C to +30 °C; signal level –25 dBm; properly adjusted reference level; external reference frequency applied, frequency range from 700 MHz to 1.98 GHz
Base station and UE output power Base station and UE output power R&S®FSW R&S®FSVA R&S®FPS R&S®FPL1000 R&S®RTO2044 R&S®FSV
Level uncertainty same as R&S®FSW/FSV/FSVA/FPS/FPL1000/RTO2044 (see R&S®FSW/FSV/FSVA/FPS/FPL1000/RTO2044 total measurement uncertainty)
Transmitted signal quality base station EVM R&S®FSW R&S®FSVA R&S®FPS R&S®FPL1000 R&S®RTO2044 R&S®FSV
Residual EVM < 0.33 % < 0.40 % < 0.47 % < 0.36 % < 1.00 % (–49.8 dB) (–48.0 dB) (–46.6 dB) (–48.9 dB) (–40.0 dB)
