R&S. RT-ZF1. Connections and Switches. 3.1. Oscilloscope Connections
Text Version of Document
link to page 10
R&S
®
RT-ZF1 Connections and Switches
Signal Quality Board 3 Connections and Switches
3.1 Oscilloscope Connections

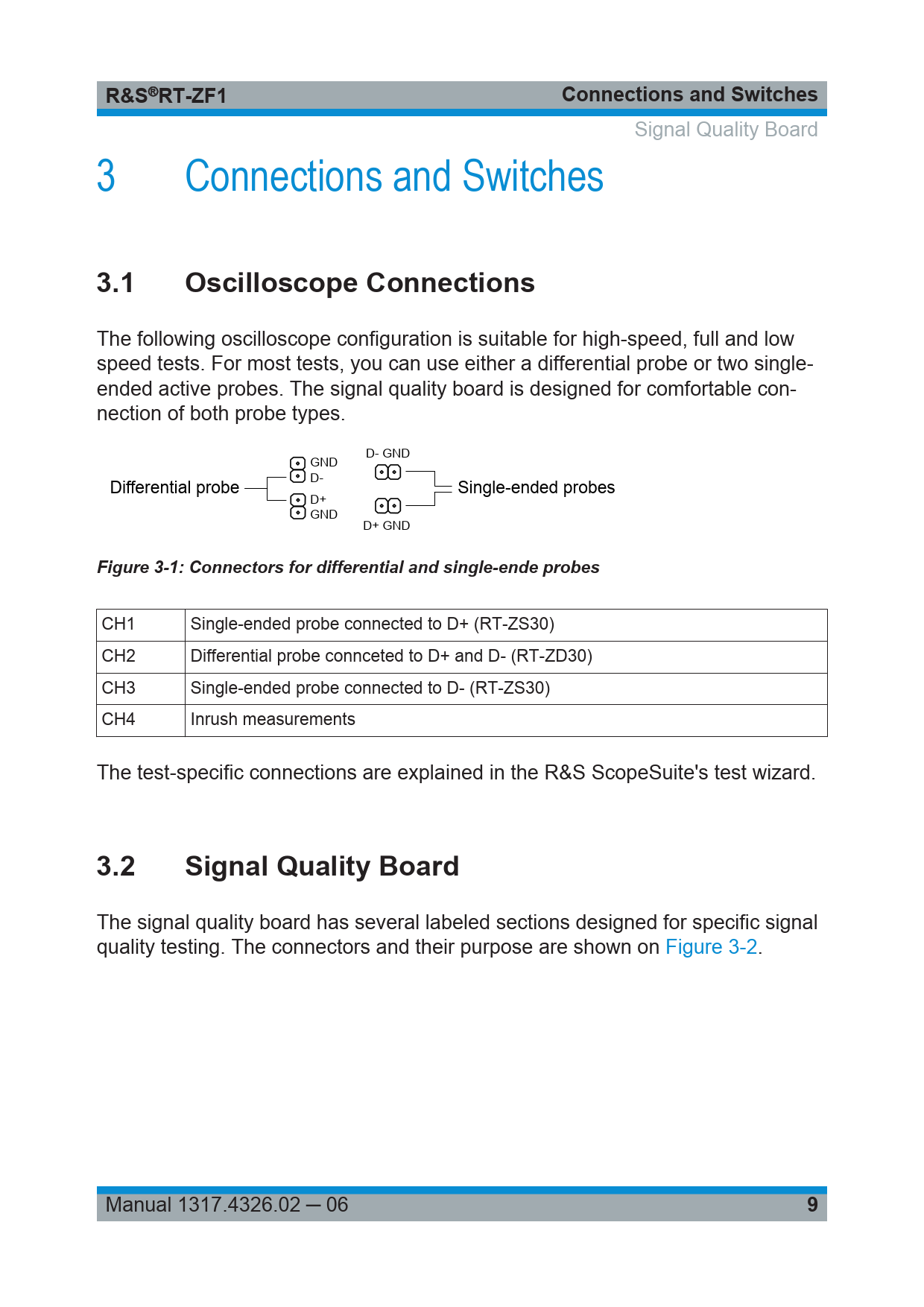

The following oscilloscope configuration is suitable for high-speed, full and low speed tests. For most tests, you can use either a differential probe or two single- ended active probes. The signal quality board is designed for comfortable con- nection of both probe types. D- GND GND D- Differential probe Single-ended probes D+ GND D+ GND
Figure 3-1: Connectors for differential and single-ende probes
CH1 Single-ended probe connected to D+ (RT-ZS30) CH2 Differential probe connceted to D+ and D- (RT-ZD30) CH3 Single-ended probe connected to D- (RT-ZS30) CH4 Inrush measurements The test-specific connections are explained in the R&S ScopeSuite's test wizard.
3.2 Signal Quality Board
The signal quality board has several labeled sections designed for specific signal quality testing. The connectors and their purpose are shown on Figure 3-2. Manual 1317.4326.02 ─ 06
9
