User manual RT-ZF1 USB 2.0 Compliance Test Fixture Set (Rohde&Schwarz) - 8
| Manufacturer | Rohde&Schwarz |
| Description | RT-ZF1 USB 2.0 Compliance Test Fixture Set Manual |
| Pages / Page | 19 / 8 — R&S. RT-ZF1. Product Description. 2.3. Specifications |
| Revision | 06.00 |
| File Format / Size | PDF / 6.7 Mb |
| Document Language | English |

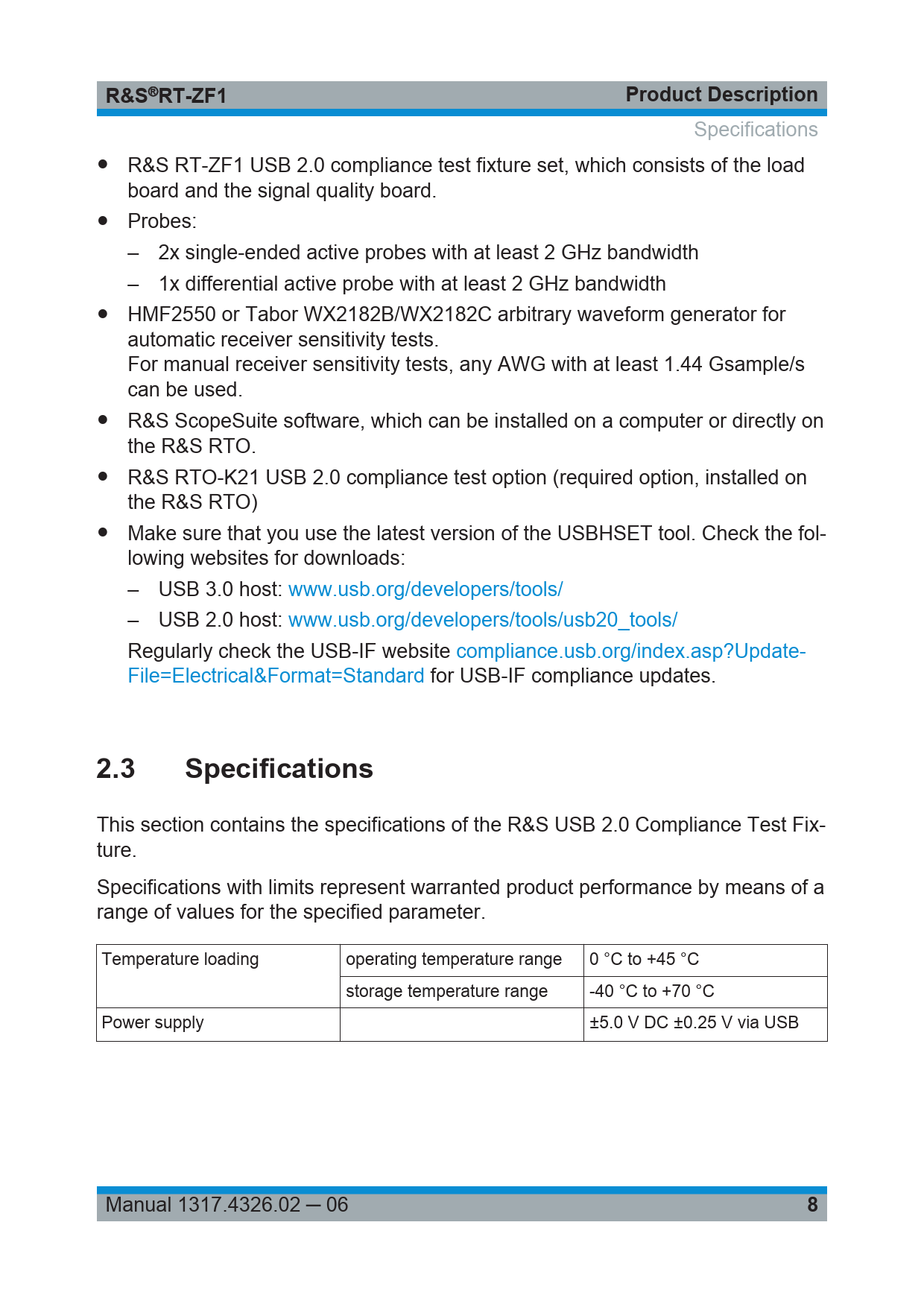

R&S. RT-ZF1. Product Description. 2.3. Specifications
Text Version of Document
R&S
®
RT-ZF1 Product Description
Specifications ● R&S RT-ZF1 USB 2.0 compliance test fixture set, which consists of the load board and the signal quality board. ● Probes: – 2x single-ended active probes with at least 2 GHz bandwidth – 1x differential active probe with at least 2 GHz bandwidth ● HMF2550 or Tabor WX2182B/WX2182C arbitrary waveform generator for automatic receiver sensitivity tests. For manual receiver sensitivity tests, any AWG with at least 1.44 Gsample/s can be used. ● R&S ScopeSuite software, which can be installed on a computer or directly on the R&S RTO. ● R&S RTO-K21 USB 2.0 compliance test option (required option, installed on the R&S RTO) ● Make sure that you use the latest version of the USBHSET tool. Check the fol- lowing websites for downloads: – USB 3.0 host: www.usb.org/developers/tools/ – USB 2.0 host: www.usb.org/developers/tools/usb20_tools/ Regularly check the USB-IF website compliance.usb.org/index.asp?Update- File=Electrical&Format=Standard for USB-IF compliance updates.
2.3 Specifications
This section contains the specifications of the R&S USB 2.0 Compliance Test Fix- ture. Specifications with limits represent warranted product performance by means of a range of values for the specified parameter. Temperature loading operating temperature range 0 °C to +45 °C storage temperature range -40 °C to +70 °C Power supply ±5.0 V DC ±0.25 V via USB Manual 1317.4326.02 ─ 06
8
