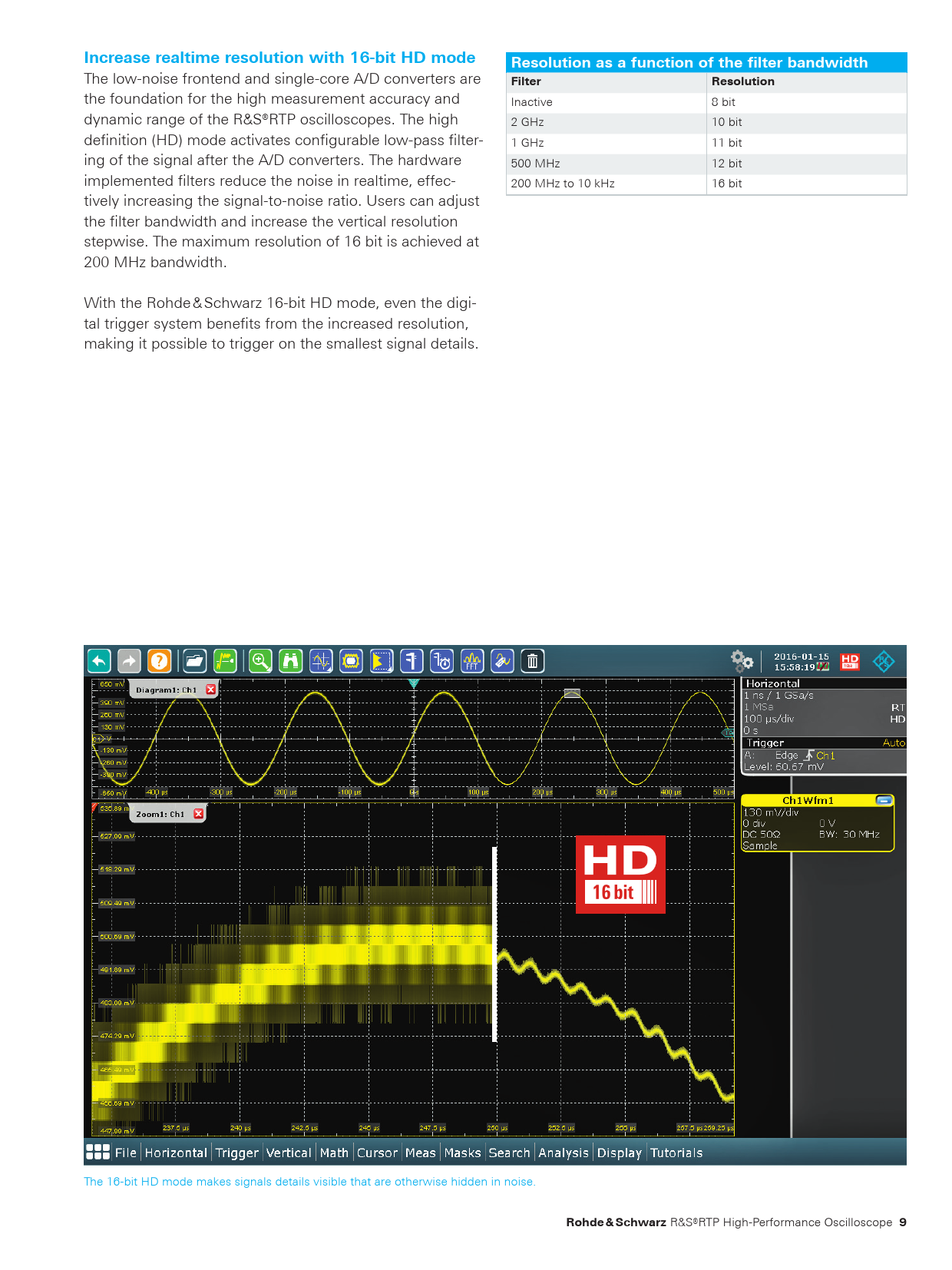

Increase realtime resolution with 16-bit HD mode. Resolution as a function of the filter bandwidth. Filter. Resolution
Text Version of Document
Increase realtime resolution with 16-bit HD mode Resolution as a function of the filter bandwidth
The low-noise frontend and single-core A/D converters are
Filter Resolution
the foundation for the high measurement accuracy and Inactive 8 bit dynamic range of the R&S®RTP oscilloscopes. The high 2 GHz 10 bit definition (HD) mode activates configurable low-pass filter- 1 GHz 11 bit ing of the signal after the A/D converters. The hardware 500 MHz 12 bit implemented filters reduce the noise in realtime, effec- 200 MHz to 10 kHz 16 bit tively increasing the signal-to-noise ratio. Users can adjust the filter bandwidth and increase the vertical resolution stepwise. The maximum resolution of 16 bit is achieved at 200 MHz bandwidth. With the Rohde & Schwarz 16-bit HD mode, even the digi- tal trigger system benefits from the increased resolution, making it possible to trigger on the smallest signal details. The 16-bit HD mode makes signals details visible that are otherwise hidden in noise.
Rohde & Schwarz
R&S®RTP High-Performance Oscilloscope
9
