Quickly find signal faults with approx. 1 million waveforms/s. Fast eye mask test and histogram
Text Version of Document

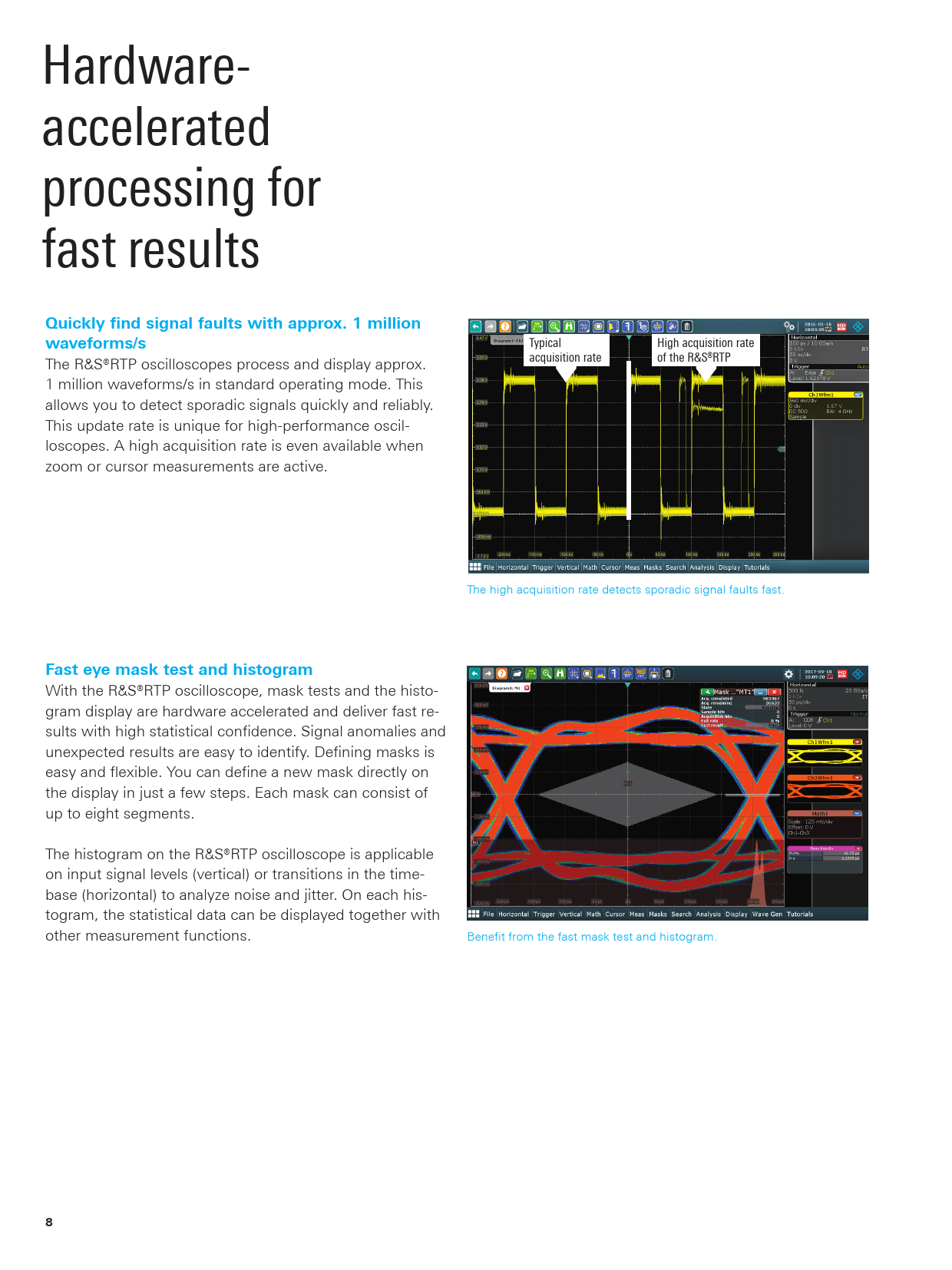

Hardware- accelerated processing for fast results
Quickly find signal faults with approx. 1 million waveforms/s
Typical High acquisition rate acquisition rate of the R&S®RTP The R&S®RTP oscilloscopes process and display approx. 1 million waveforms/s in standard operating mode. This allows you to detect sporadic signals quickly and reliably. This update rate is unique for high-performance oscil- loscopes. A high acquisition rate is even available when zoom or cursor measurements are active. The high acquisition rate detects sporadic signal faults fast.
Fast eye mask test and histogram
With the R&S®RTP oscilloscope, mask tests and the histo- gram display are hardware accelerated and deliver fast re- sults with high statistical confidence. Signal anomalies and unexpected results are easy to identify. Defining masks is easy and flexible. You can define a new mask directly on the display in just a few steps. Each mask can consist of up to eight segments. The histogram on the R&S®RTP oscilloscope is applicable on input signal levels (vertical) or transitions in the time- base (horizontal) to analyze noise and jitter. On each his- togram, the statistical data can be displayed together with other measurement functions. Benefit from the fast mask test and histogram.
8
