Datasheet Full Pinout Nicla Sense ME (Arduino) - 6
| Manufacturer | Arduino |
| Description | The Nicla Sense ME houses 4 low power sensors in a small footprint enabling powerful data fusion capabilities on the edge. |
| Pages / Page | 7 / 6 — STORE.ARDUINO.CC/NICLA-SENSE-ME. BOTTOM. Battery. U1 SAMD11. Connector. … |
| File Format / Size | PDF / 610 Kb |
| Document Language | English |
STORE.ARDUINO.CC/NICLA-SENSE-ME. BOTTOM. Battery. U1 SAMD11. Connector. PA08. P0.09. GND. U9 BQ25120AYFPR. PA31/SWDIO. NTC. PA30/SWCLK. BAT. VBAT
Text Version of Document

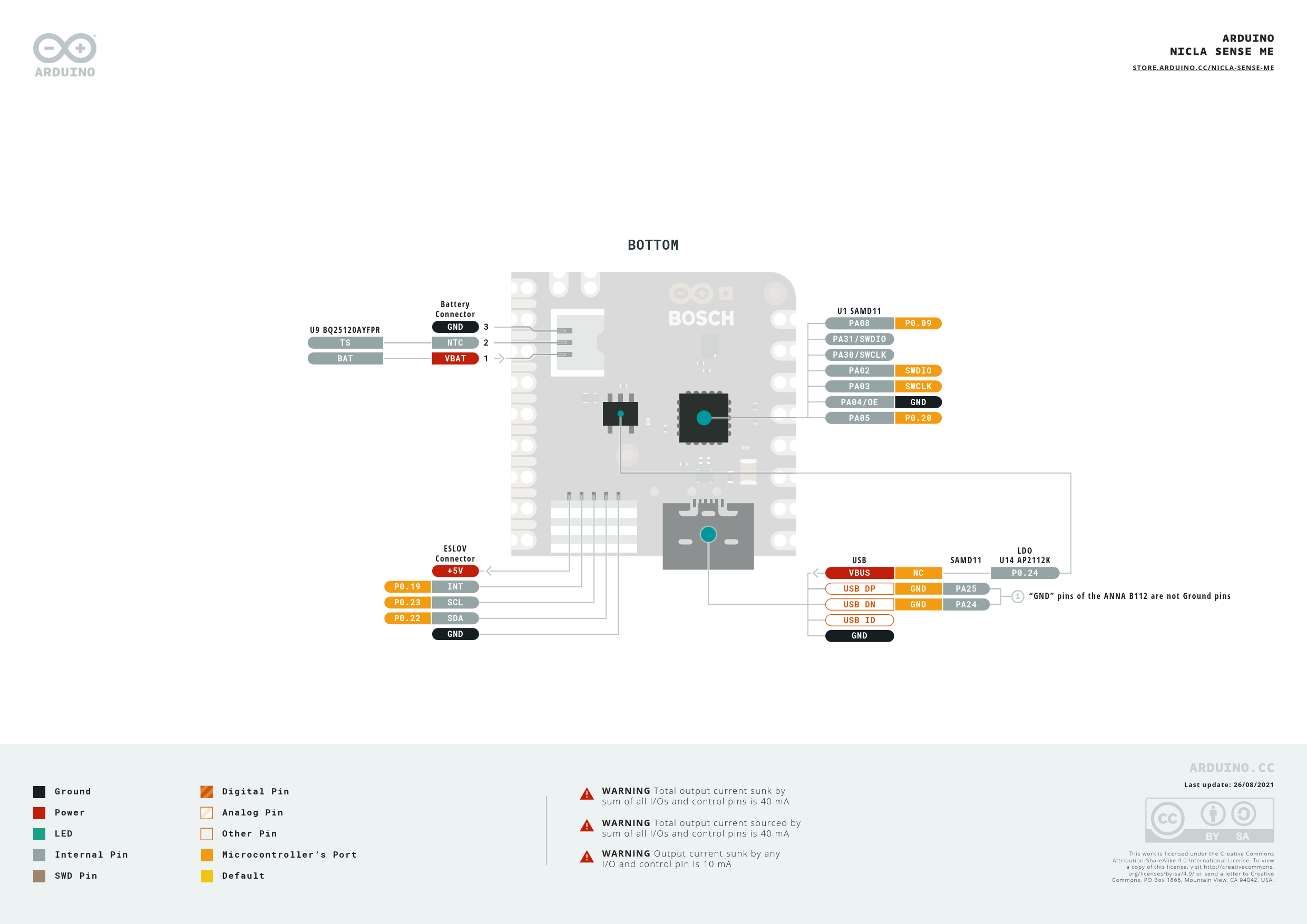

STORE.ARDUINO.CC/NICLA-SENSE-ME BOTTOM Battery U1 SAMD11 Connector PA08 P0.09 GND 3 U9 BQ25120AYFPR PA31/SWDIO TS NTC 2 PA30/SWCLK BAT VBAT 1 PA02 SWDIO PA03 SWCLK PA04/OE GND PA05 P0.20 ESLOV LDO Connector USB SAMD11 U14 AP2112K +5V VBUS NC P0.24 P0.19 INT USB DP GND PA25 i “GND” pins of the ANNA B112 are not Ground pins P0.23 SCL USB DN GND PA24 P0.22 SDA USB ID GND GND Last update: 26/08/2021 Ground Digital Pin WARNING
Total output current sunk by sum of all I/Os and control pins is 40 mA
Power Analog Pin WARNING
Total output current sourced by
LED Other Pin
sum of all I/Os and control pins is 40 mA
WARNING
Output current sunk by any This work is licensed under the Creative Commons
Internal Pin Microcontroller’s Port
Attribution-ShareAlike 4.0 International License. To view I/O and control pin is 10 mA a copy of this license, visit http://creativecommons. org/licenses/by-sa/4.0/ or send a letter to Creative
SWD Pin Default
Commons, PO Box 1866, Mountain View, CA 94042, USA.
