| Manufacturer | Analog Devices |
| Description | Dual Picoampere Input Current Bipolar Op Amp |
| Pages / Page | 13 / 10 — AD706. OUTLINE DIMENSIONS. 8-Lead Standard Small Outline Package [SOIC]. … |
| Revision | G |
| File Format / Size | PDF / 251 Kb |
| Document Language | English |

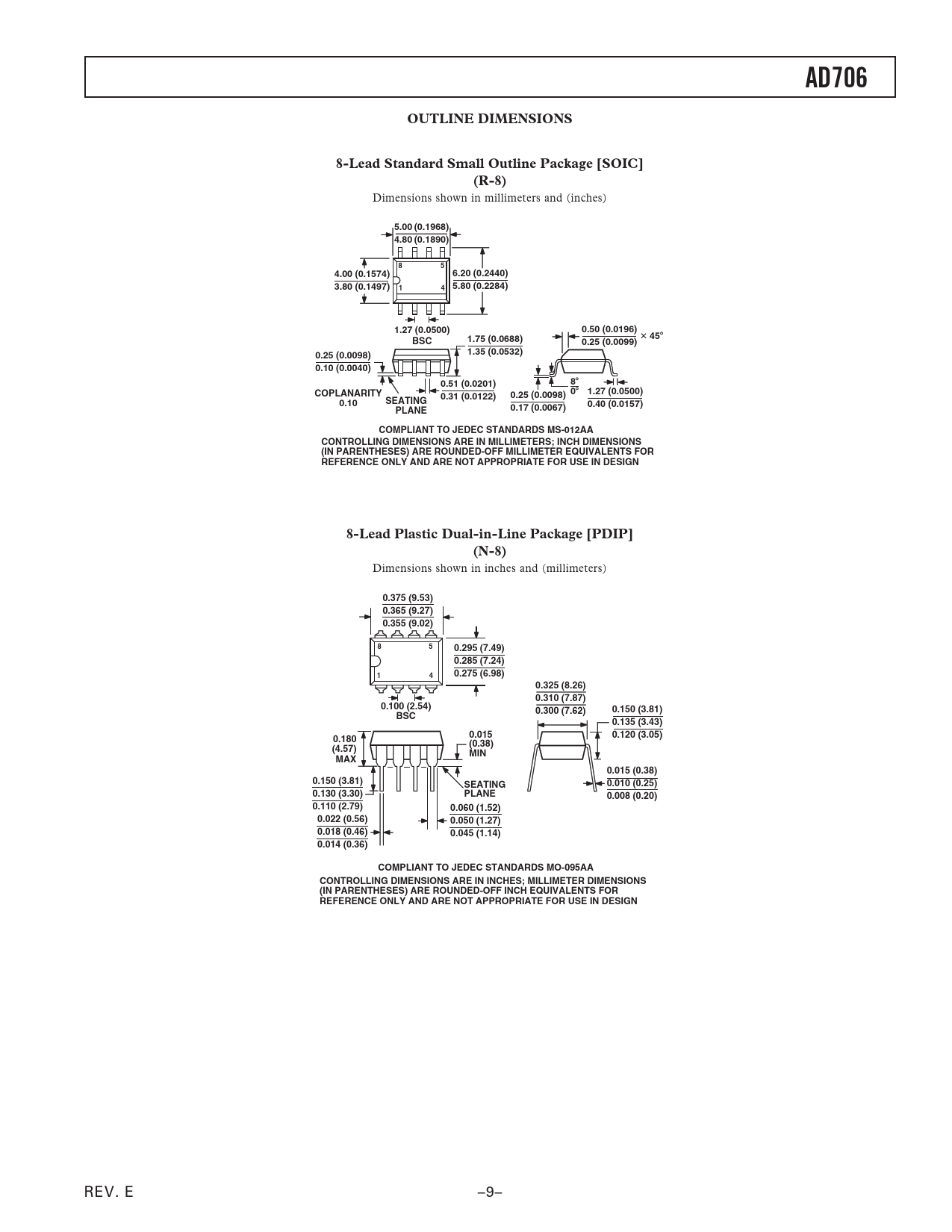

AD706. OUTLINE DIMENSIONS. 8-Lead Standard Small Outline Package [SOIC]. (R-8). 5.00 (0.1968) 4.80 (0.1890). 4.00 (0.1574)
Text Version of Document
AD706 OUTLINE DIMENSIONS 8-Lead Standard Small Outline Package [SOIC] (R-8)
Dimensions shown in millimeters and (inches)
5.00 (0.1968) 4.80 (0.1890) 8 5 4.00 (0.1574) 6.20 (0.2440) 3.80 (0.1497) 1 4 5.80 (0.2284) 1.27 (0.0500) 0.50 (0.0196) 1.75 (0.0688) 45 BSC 0.25 (0.0099) 1.35 (0.0532) 0.25 (0.0098) 0.10 (0.0040) 8 0.51 (0.0201) COPLANARITY 0.31 (0.0122) 0.25 (0.0098) 0 1.27 (0.0500) SEATING 0.10 0.17 (0.0067) 0.40 (0.0157) PLANE COMPLIANT TO JEDEC STANDARDS MS-012AA CONTROLLING DIMENSIONS ARE IN MILLIMETERS; INCH DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF MILLIMETER EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN 8-Lead Plastic Dual-in-Line Package [PDIP] (N-8)
Dimensions shown in inches and (millimeters)
0.375 (9.53) 0.365 (9.27) 0.355 (9.02) 8 5 0.295 (7.49) 0.285 (7.24) 1 4 0.275 (6.98) 0.325 (8.26) 0.310 (7.87) 0.100 (2.54) 0.300 (7.62) 0.150 (3.81) BSC 0.135 (3.43) 0.015 0.120 (3.05) 0.180 (0.38) (4.57) MIN MAX 0.015 (0.38) 0.150 (3.81) SEATING 0.010 (0.25) 0.130 (3.30) PLANE 0.008 (0.20) 0.110 (2.79) 0.060 (1.52) 0.022 (0.56) 0.050 (1.27) 0.018 (0.46) 0.045 (1.14) 0.014 (0.36) COMPLIANT TO JEDEC STANDARDS MO-095AA CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN
