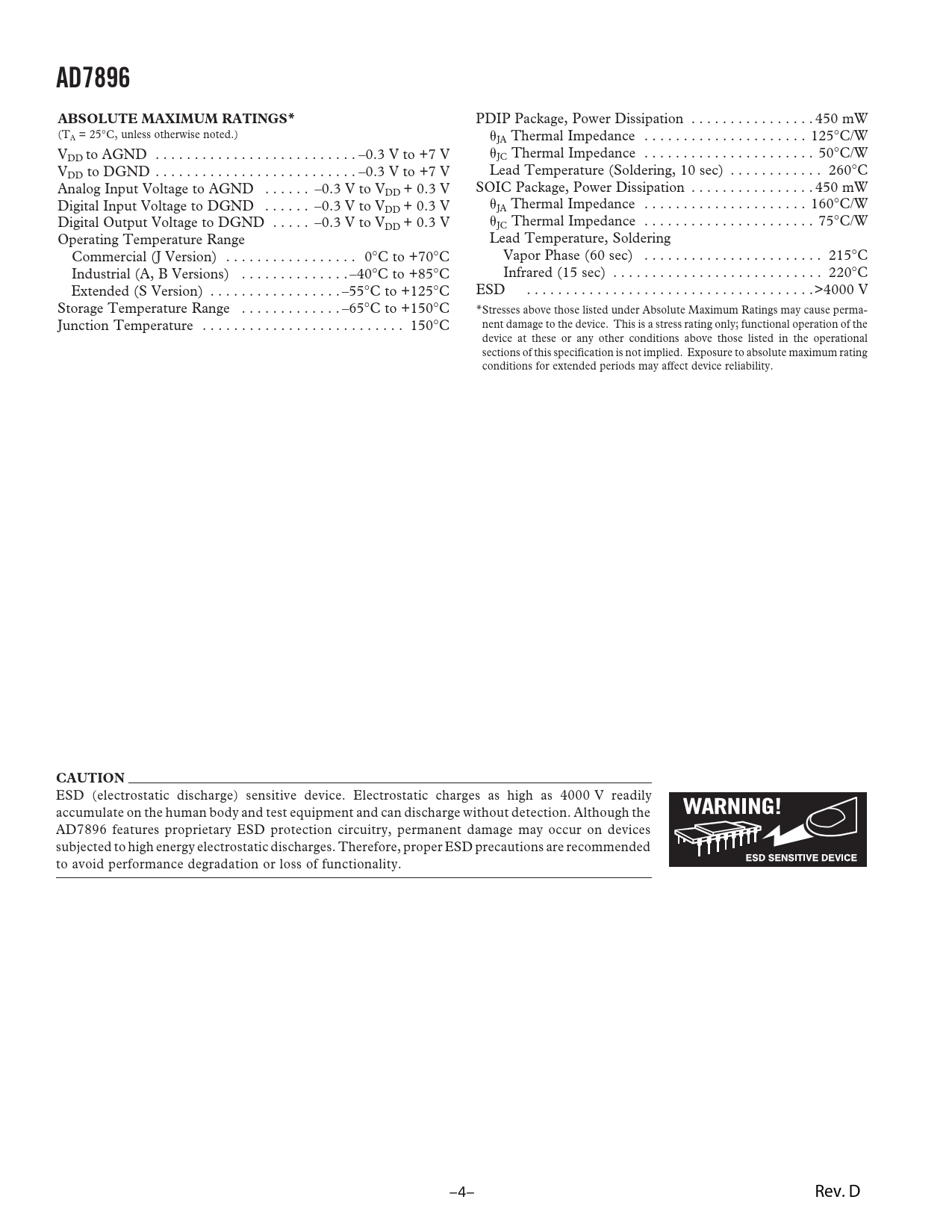

AD7896 ABSOLUTE MAXIMUM RATINGS*
PDIP Package, Power Dissipation . 450 mW (TA = 25°C, unless otherwise noted.) ␪JA Thermal Impedance . 125°C/W V ␪ DD to AGND . –0.3 V to +7 V JC Thermal Impedance . 50°C/W V Lead Temperature (Soldering, 10 sec) . 260°C DD to DGND . –0.3 V to +7 V Analog Input Voltage to AGND . –0.3 V to V SOIC Package, Power Dissipation . 450 mW DD + 0.3 V Digital Input Voltage to DGND . –0.3 V to V ␪ DD + 0.3 V JA Thermal Impedance . 160°C/W Digital Output Voltage to DGND . –0.3 V to V ␪ DD + 0.3 V JC Thermal Impedance . 75°C/W Operating Temperature Range Lead Temperature, Soldering Commercial (J Version) . 0°C to +70°C Vapor Phase (60 sec) . 215°C Industrial (A, B Versions) . –40°C to +85°C Infrared (15 sec) . 220°C Extended (S Version) . –55°C to +125°C ESD . .>4000 V Storage Temperature Range . –65°C to +150°C *Stresses above those listed under Absolute Maximum Ratings may cause perma- Junction Temperature . 150°C nent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although the AD7896 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degradation or loss of functionality. –4– Rev. D Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS SPECIFICATIONS TIMING CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION PIN FUNCTION DESCRIPTIONS TERMINOLOGY Relative Accuracy Differential Nonlinearity Unipolar Offset Error Positive Full-Scale Error Track-and-Hold Acquisition Time Signal-to-(Noise + Distortion) Ratio Total Harmonic Distortion Peak Harmonic or Spurious Noise Intermodulation Distortion CONVERTER DETAILS CIRCUIT DESCRIPTION Analog Input Section Track-and-Hold Section Timing and Control OPERATING MODES Mode 1 Operation (High Sampling Performance) Mode 2 Operation (Auto Sleep after Conversion) Serial Interface MICROPROCESSOR/MICROCONTROLLER INTERFACE AD7896–8051 Interface AD7896–68HC11/L11 Interface AD7896–ADSP-2103/ADSP-2105 Interface AD7896–DSP56002/L002 Interface AD7896 PERFORMANCE Linearity Noise Dynamic Performance (Mode 1 Only) Effective Number of Bits Power Considerations OUTLINE DIMENSIONS ORDERING GUIDE Revision History
