Datasheet ADA4805-2 (Analog Devices) - 10

ManufacturerAnalog Devices
DescriptionDual, 0.2 µV/°C Offset Drift, 105 MHz Low Power, Low Noise, Rail-to-Rail Amplifier
Pages / Page17 / 10 — DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/16621
File Format / SizePDF / 104 Kb
Document LanguageEnglish

DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/16621

DLA LAND AND MARITIME COLUMBUS, OHIO 16236 V62/16621

Model Line for this Datasheet

Text Version of Document

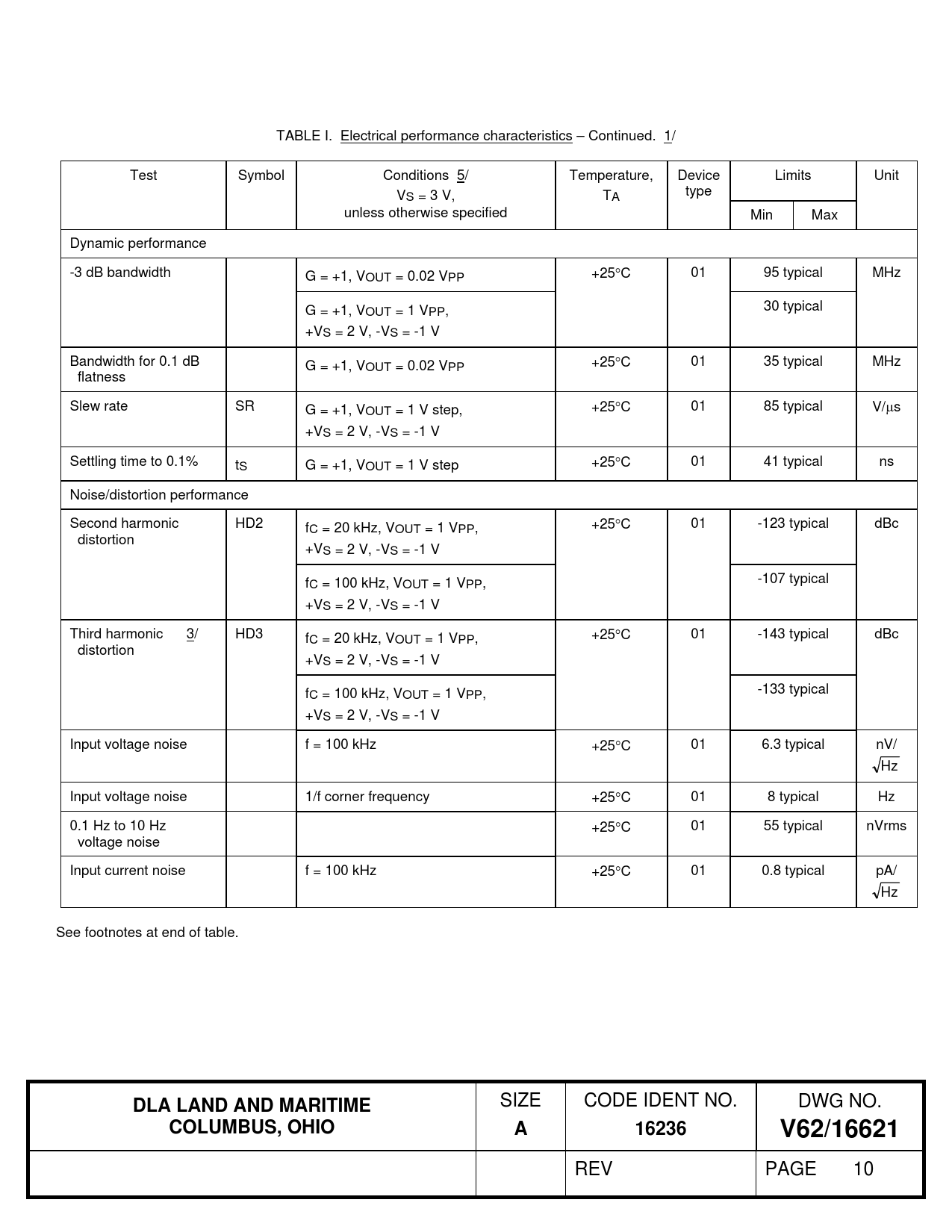

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions 5/ Temperature, Device Limits Unit VS = 3 V, TA type unless otherwise specified Min Max Dynamic performance -3 dB bandwidth G = +1, VOUT = 0.02 VPP +25C 01 95 typical MHz G = +1, VOUT = 1 VPP, 30 typical +VS = 2 V, -VS = -1 V Bandwidth for 0.1 dB G = +1, VOUT = 0.02 VPP +25C 01 35 typical MHz flatness Slew rate SR G = +1, VOUT = 1 V step, +25C 01 85 typical V/s +VS = 2 V, -VS = -1 V Settling time to 0.1% tS G = +1, VOUT = 1 V step +25C 01 41 typical ns Noise/distortion performance Second harmonic HD2 fC = 20 kHz, VOUT = 1 VPP, +25C 01 -123 typical dBc distortion +VS = 2 V, -VS = -1 V fC = 100 kHz, VOUT = 1 VPP, -107 typical +VS = 2 V, -VS = -1 V Third harmonic 3/ HD3 fC = 20 kHz, VOUT = 1 VPP, +25C 01 -143 typical dBc distortion +VS = 2 V, -VS = -1 V fC = 100 kHz, VOUT = 1 VPP, -133 typical +VS = 2 V, -VS = -1 V Input voltage noise f = 100 kHz +25C 01 6.3 typical nV/ Hz Input voltage noise 1/f corner frequency +25C 01 8 typical Hz 0.1 Hz to 10 Hz +25C 01 55 typical nVrms voltage noise Input current noise f = 100 kHz +25C 01 0.8 typical pA/ Hz See footnotes at end of table.
DLA LAND AND MARITIME
SIZE

CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16621
REV PAGE 10
