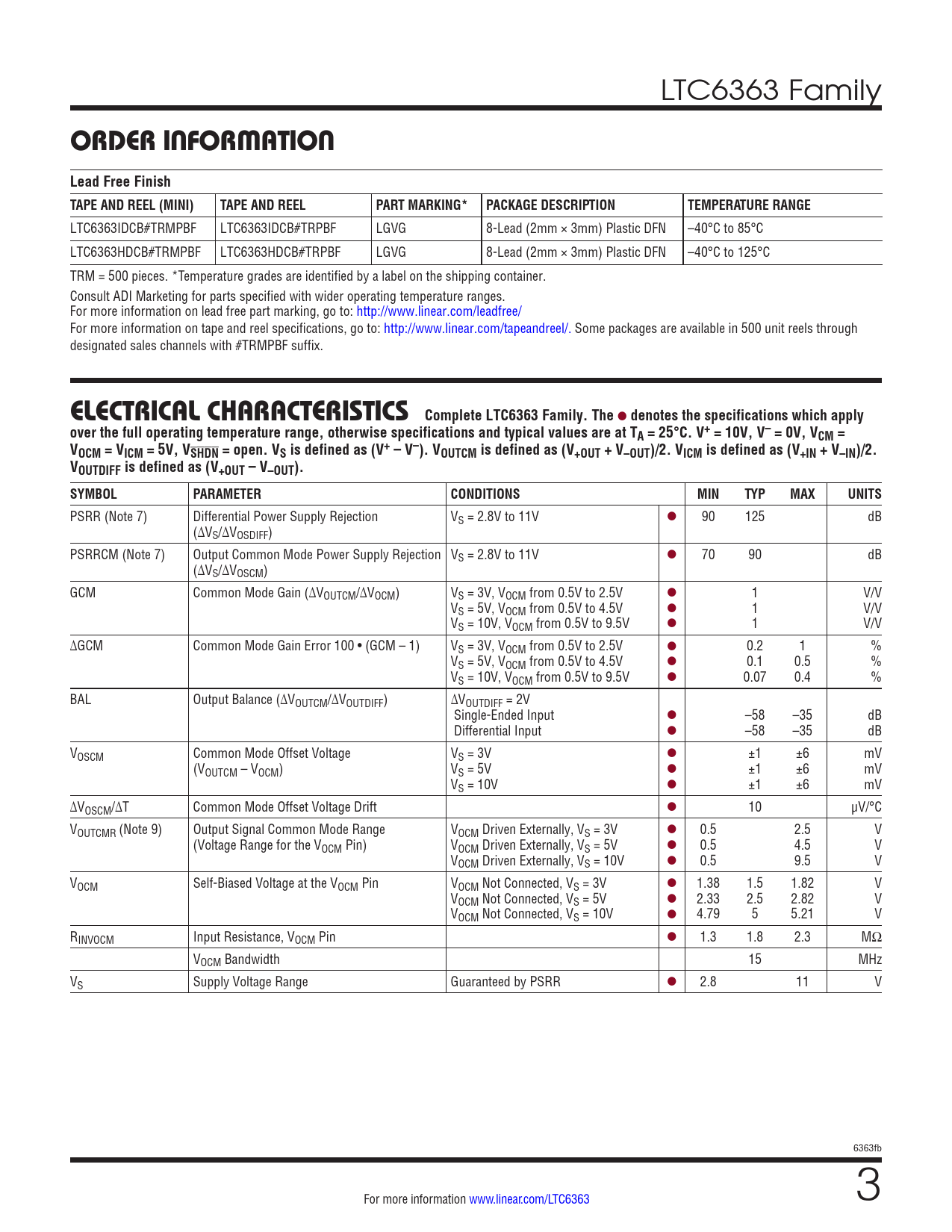

LTC6363 Family ORDER INFORMATION
Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC6363IDCB#TRMPBF LTC6363IDCB#TRPBF LGVG 8-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LTC6363HDCB#TRMPBF LTC6363HDCB#TRPBF LGVG 8-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult ADI Marketing for parts specified with wider operating temperature ranges. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. ELECTRICAL CHARACTERISTICS
Complete LTC6363 Family. The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications and typical values are at TA = 25°C. V+ = 10V, V– = 0V, VCM = VOCM = VICM = 5V, VSHDN = open. VS is defined as (V+ – V–). VOUTCM is defined as (V+OUT + V–OUT)/2. VICM is defined as (V+IN + V–IN)/2. VOUTDIFF is defined as (V+OUT – V–OUT). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
PSRR (Note 7) Differential Power Supply Rejection VS = 2.8V to 11V l 90 125 dB (∆VS/∆VOSDIFF) PSRRCM (Note 7) Output Common Mode Power Supply Rejection VS = 2.8V to 11V l 70 90 dB (∆VS/∆VOSCM) GCM Common Mode Gain (∆VOUTCM/∆VOCM) VS = 3V, VOCM from 0.5V to 2.5V l 1 V/V VS = 5V, VOCM from 0.5V to 4.5V l 1 V/V VS = 10V, VOCM from 0.5V to 9.5V l 1 V/V ∆GCM Common Mode Gain Error 100 • (GCM – 1) VS = 3V, VOCM from 0.5V to 2.5V l 0.2 1 % VS = 5V, VOCM from 0.5V to 4.5V l 0.1 0.5 % VS = 10V, VOCM from 0.5V to 9.5V l 0.07 0.4 % BAL Output Balance (∆VOUTCM/∆VOUTDIFF) ∆VOUTDIFF = 2V Single-Ended Input l –58 –35 dB Differential Input l –58 –35 dB VOSCM Common Mode Offset Voltage VS = 3V l ±1 ±6 mV (VOUTCM – VOCM) VS = 5V l ±1 ±6 mV VS = 10V l ±1 ±6 mV ∆VOSCM/∆T Common Mode Offset Voltage Drift l 10 μV/°C VOUTCMR (Note 9) Output Signal Common Mode Range VOCM Driven Externally, VS = 3V l 0.5 2.5 V (Voltage Range for the VOCM Pin) VOCM Driven Externally, VS = 5V l 0.5 4.5 V VOCM Driven Externally, VS = 10V l 0.5 9.5 V VOCM Self-Biased Voltage at the VOCM Pin VOCM Not Connected, VS = 3V l 1.38 1.5 1.82 V VOCM Not Connected, VS = 5V l 2.33 2.5 2.82 V VOCM Not Connected, VS = 10V l 4.79 5 5.21 V RINVOCM Input Resistance, VOCM Pin l 1.3 1.8 2.3 MΩ VOCM Bandwidth 15 MHz VS Supply Voltage Range Guaranteed by PSRR l 2.8 11 V 6363fb For more information www.linear.com/LTC6363 3
