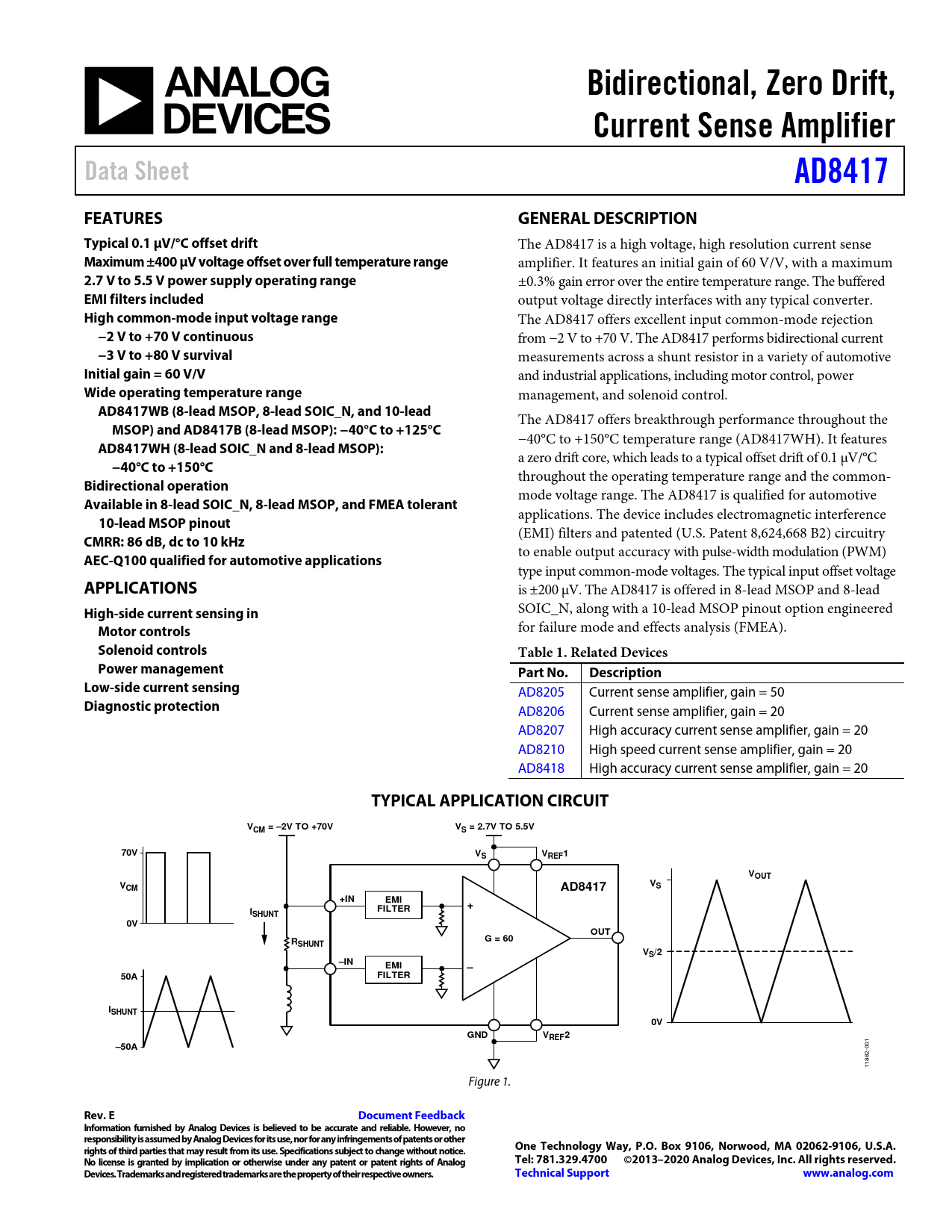

Bidirectional, Zero Drift, Current Sense Amplifier Data Sheet AD8417 FEATURES GENERAL DESCRIPTION Typical 0.1 µV/°C offset drift
The AD8417 is a high voltage, high resolution current sense
Maximum ±400 µV voltage offset over full temperature range
amplifier. It features an initial gain of 60 V/V, with a maximum
2.7 V to 5.5 V power supply operating range
±0.3% gain error over the entire temperature range. The buffered
EMI filters included
output voltage directly interfaces with any typical converter.
High common-mode input voltage range
The AD8417 offers excel ent input common-mode rejection
−2 V to +70 V continuous
from −2 V to +70 V. The AD8417 performs bidirectional current
−3 V to +80 V survival
measurements across a shunt resistor in a variety of automotive
Initial gain = 60 V/V
and industrial applications, including motor control, power
Wide operating temperature range
management, and solenoid control.
AD8417WB (8-lead MSOP, 8-lead SOIC_N, and 10-lead
The AD8417 offers breakthrough performance throughout the
MSOP) and AD8417B (8-lead MSOP): −40°C to +125°C
−40°C to +150°C temperature range (AD8417WH). It features
AD8417WH (8-lead SOIC_N and 8-lead MSOP):
a zero drift core, which leads to a typical offset drift of 0.1 µV/°C
−40°C to +150°C
throughout the operating temperature range and the common-
Bidirectional operation
mode voltage range. The AD8417 is qualified for automotive
Available in 8-lead SOIC_N, 8-lead MSOP, and FMEA tolerant
applications. The device includes electromagnetic interference
10-lead MSOP pinout
(EMI) filters and patented (U.S. Patent 8,624,668 B2) circuitry
CMRR: 86 dB, dc to 10 kHz
to enable output accuracy with pulse-width modulation (PWM)
AEC-Q100 qualified for automotive applications
type input common-mode voltages. The typical input offset voltage
APPLICATIONS
is ±200 µV. The AD8417 is offered in 8-lead MSOP and 8-lead
High-side current sensing in
SOIC_N, along with a 10-lead MSOP pinout option engineered
Motor controls
for failure mode and effects analysis (FMEA).
Solenoid controls Table 1. Related Devices Power management Part No. Description Low-side current sensing
AD8205 Current sense amplifier, gain = 50
Diagnostic protection
AD8206 Current sense amplifier, gain = 20 AD8207 High accuracy current sense amplifier, gain = 20 AD8210 High speed current sense amplifier, gain = 20 AD8418 High accuracy current sense amplifier, gain = 20
TYPICAL APPLICATION CIRCUIT VCM = –2V TO +70V VS = 2.7V TO 5.5V 70V V V S REF1 VOUT V V S CM AD8417 +IN EMI + I FILTER SHUNT 0V OUT G = 60 RSHUNT VS/2 –IN EMI – 50A FILTER ISHUNT 0V GND VREF2 –50A
001 1882- 1 Figure 1.
