Datasheet AD8417 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Bidirectional, Zero Drift, Current Sense Amplifier |
| Pages / Page | 17 / 3 — Data Sheet. AD8417. SPECIFICATIONS. Table 2. Parameter. Test … |
| Revision | E |
| File Format / Size | PDF / 352 Kb |
| Document Language | English |

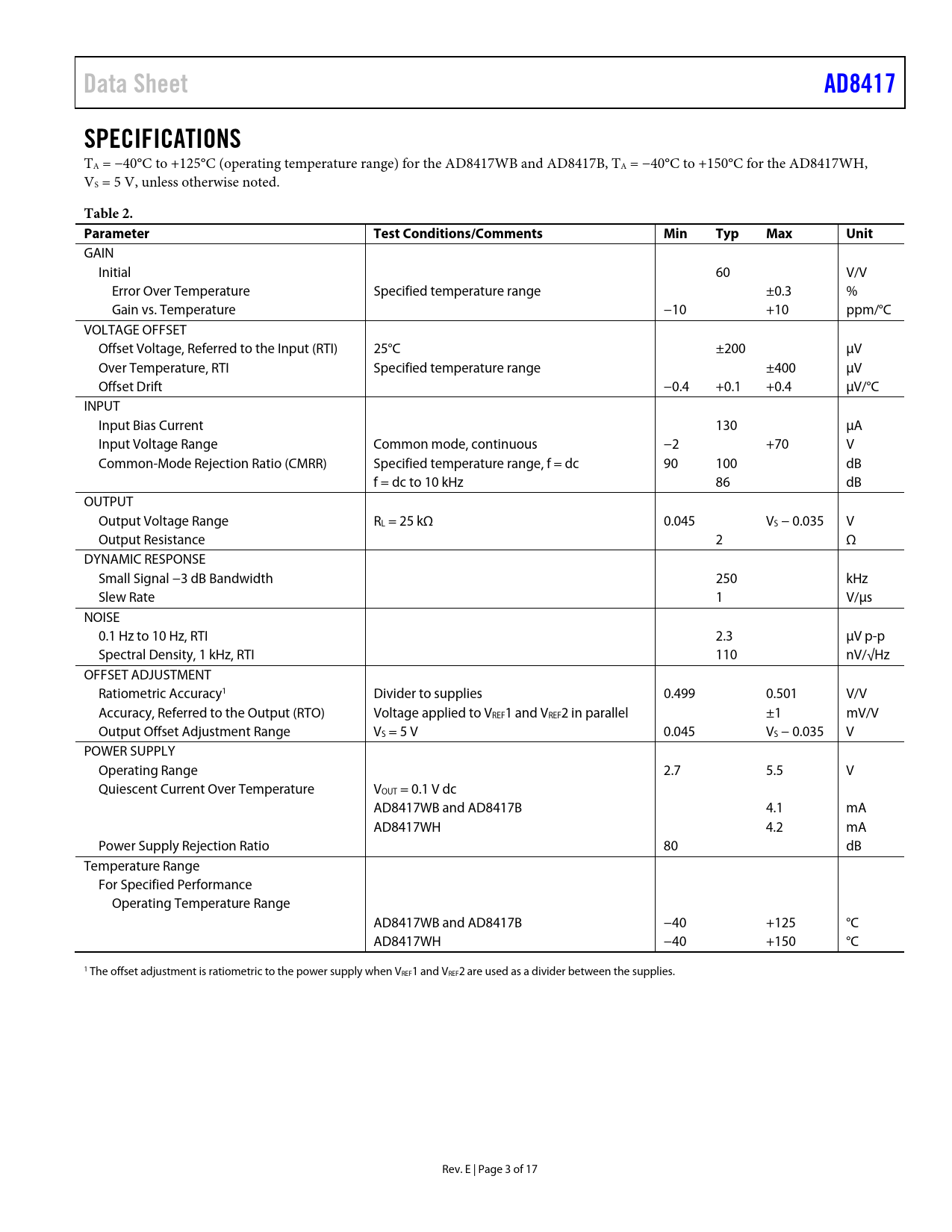

Data Sheet. AD8417. SPECIFICATIONS. Table 2. Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8417 SPECIFICATIONS
TA = −40°C to +125°C (operating temperature range) for the AD8417WB and AD8417B, TA = −40°C to +150°C for the AD8417WH, VS = 5 V, unless otherwise noted.
Table 2. Parameter Test Conditions/Comments Min Typ Max Unit
GAIN Initial 60 V/V Error Over Temperature Specified temperature range ±0.3 % Gain vs. Temperature −10 +10 ppm/°C VOLTAGE OFFSET Offset Voltage, Referred to the Input (RTI) 25°C ±200 µV Over Temperature, RTI Specified temperature range ±400 µV Offset Drift −0.4 +0.1 +0.4 µV/°C INPUT Input Bias Current 130 µA Input Voltage Range Common mode, continuous −2 +70 V Common-Mode Rejection Ratio (CMRR) Specified temperature range, f = dc 90 100 dB f = dc to 10 kHz 86 dB OUTPUT Output Voltage Range RL = 25 kΩ 0.045 VS − 0.035 V Output Resistance 2 Ω DYNAMIC RESPONSE Small Signal −3 dB Bandwidth 250 kHz Slew Rate 1 V/µs NOISE 0.1 Hz to 10 Hz, RTI 2.3 µV p-p Spectral Density, 1 kHz, RTI 110 nV/√Hz OFFSET ADJUSTMENT Ratiometric Accuracy1 Divider to supplies 0.499 0.501 V/V Accuracy, Referred to the Output (RTO) Voltage applied to VREF1 and VREF2 in parallel ±1 mV/V Output Offset Adjustment Range VS = 5 V 0.045 VS − 0.035 V POWER SUPPLY Operating Range 2.7 5.5 V Quiescent Current Over Temperature VOUT = 0.1 V dc AD8417WB and AD8417B 4.1 mA AD8417WH 4.2 mA Power Supply Rejection Ratio 80 dB Temperature Range For Specified Performance Operating Temperature Range AD8417WB and AD8417B −40 +125 °C AD8417WH −40 +150 °C 1 The offset adjustment is ratiometric to the power supply when VREF1 and VREF2 are used as a divider between the supplies. Rev. E | Page 3 of 17 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATION CIRCUIT REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OUTPUT OFFSET ADJUSTMENT UNIDIRECTIONAL OPERATION Ground Referenced Output Mode VS Referenced Output Mode BIDIRECTIONAL OPERATION EXTERNAL REFERENCED OUTPUT SPLITTING THE SUPPLY SPLITTING AN EXTERNAL REFERENCE APPLICATIONS INFORMATION MOTOR CONTROL 3-Phase Motor Control H-Bridge Motor Control SOLENOID CONTROL High-Side Current Sense with a Low-Side Switch High-Side Current Sense with a High-Side Switch High Rail Current Sensing PINOUT OPTION ENGINEERED FOR FMEA OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
