| Description | Low Offset, Low Power Quad Op Amp |
| Pages / Page | 16 / 3 — Data Sheet. OP400. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. … |
| Revision | I |
| File Format / Size | PDF / 342 Kb |
| Document Language | English |
Data Sheet. OP400. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. OP400A/E. OP400F. OP400G/H. Parameter. Symbol. Conditions. Min. Typ
Model Line for this Datasheet
Text Version of Document
link to page 3 link to page 3 link to page 3 link to page 3 link to page 3

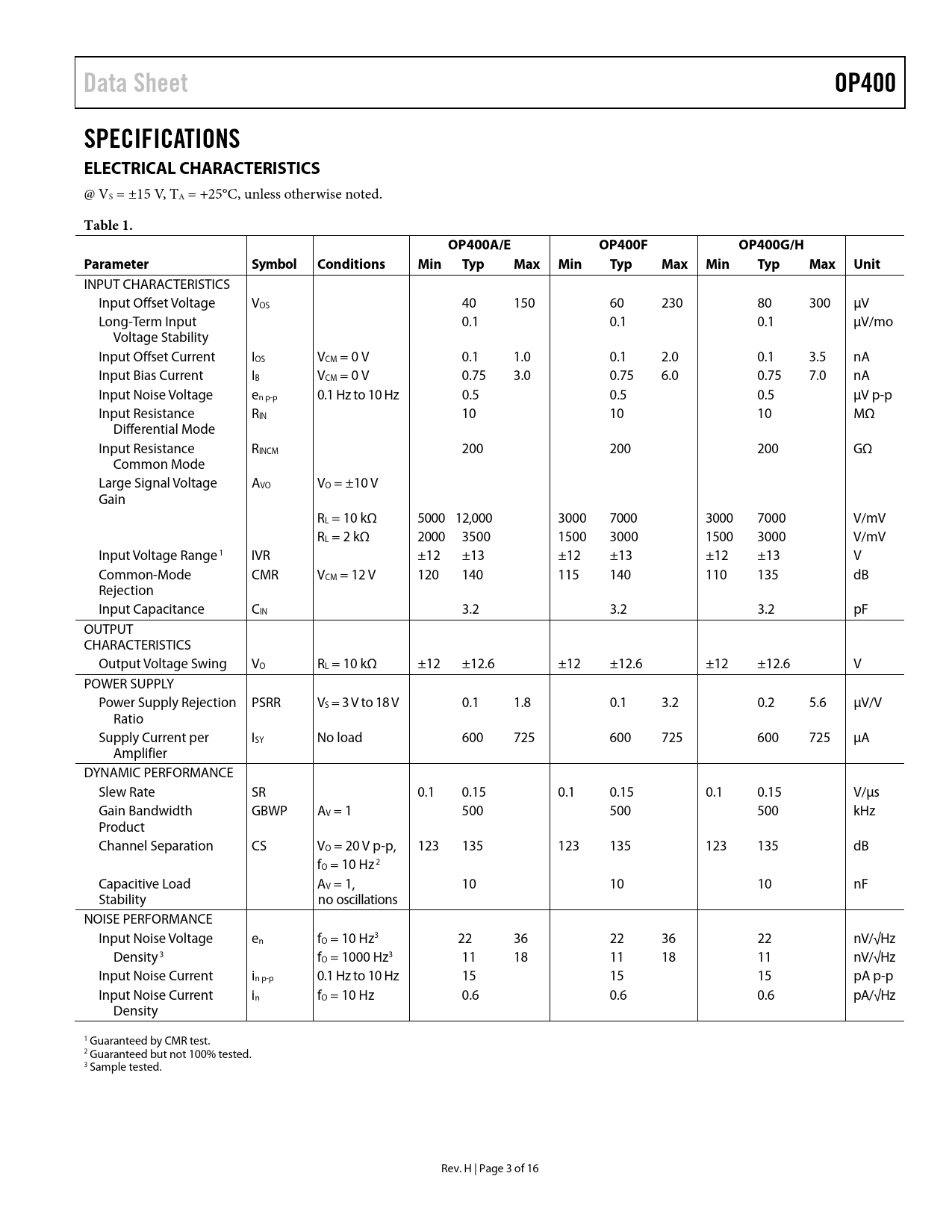

Data Sheet OP400 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
