Datasheet ADA4610-1, ADA4610-2, ADA4610-4 (Analog Devices) - 7

ManufacturerAnalog Devices
DescriptionLow Noise, Precision, Rail-to-Rail Output, JFET Single Op Amp
Pages / Page25 / 7 — Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. PIN CONFIGURATIONS AND …
RevisionI
File Format / SizePDF / 761 Kb
Document LanguageEnglish

Data Sheet. ADA4610-1/ADA4610-2/ADA4610-4. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. NIC 1. 8 NIC. –IN 2 ADA4610-1 7 V+. +IN 3

Data Sheet ADA4610-1/ADA4610-2/ADA4610-4 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NIC 1 8 NIC –IN 2 ADA4610-1 7 V+ +IN 3

Text Version of Document

Data Sheet ADA4610-1/ADA4610-2/ADA4610-4 PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS NIC 1 8 NIC –IN 2 ADA4610-1 7 V+ +IN 3 TOP VIEW 6 OUT (Not to Scale) V– 4 5 NIC
1 10
NOTES 1. NIC = NOT INTERNALLY CONNECTED.

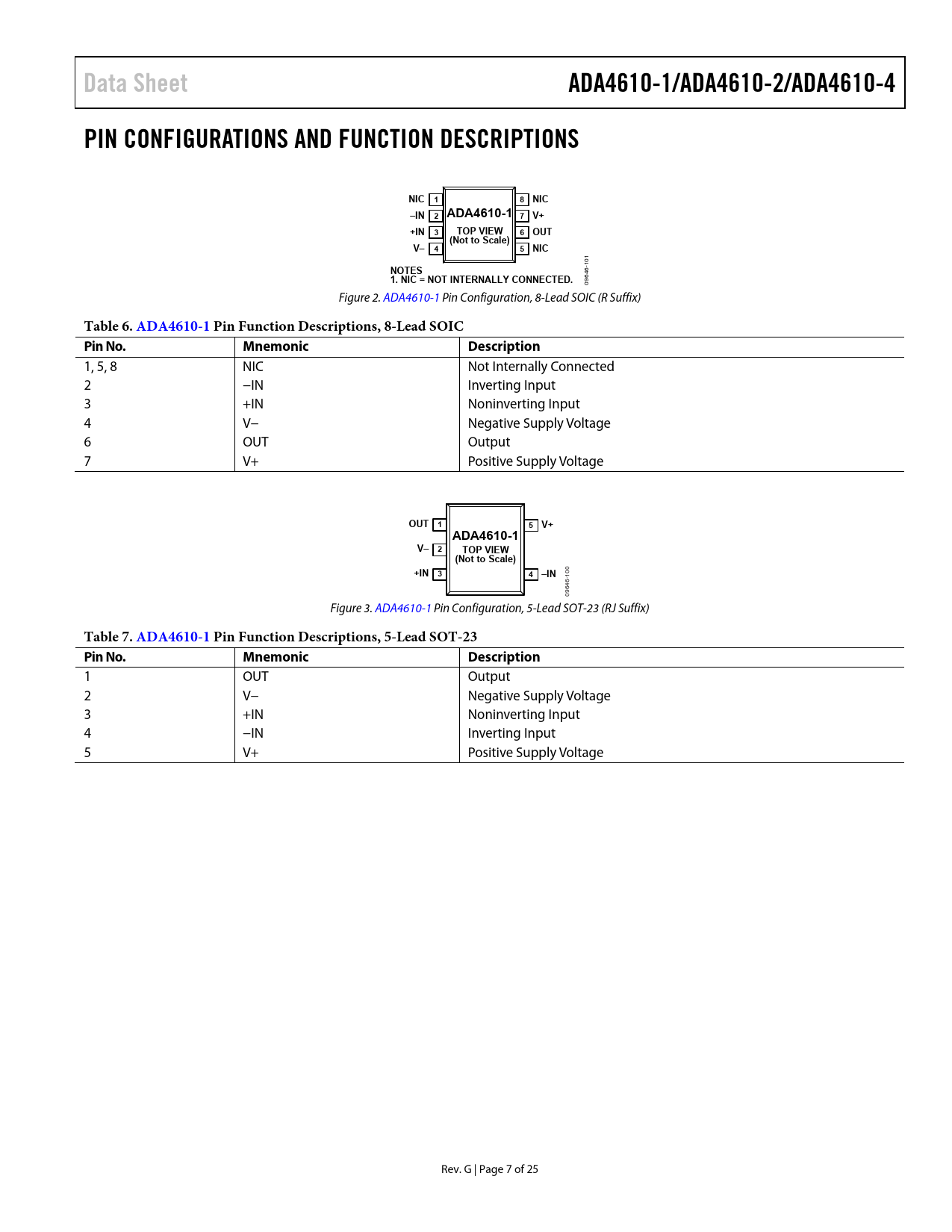

9646- 0 Figure 2. ADA4610-1 Pin Configuration, 8-Lead SOIC (R Suffix)
Table 6. ADA4610-1 Pi n Function Descriptions, 8-Lead SOIC Pin No. Mnemonic Description
1, 5, 8 NIC Not Internally Connected 2 −IN Inverting Input 3 +IN Noninverting Input 4 V− Negative Supply Voltage 6 OUT Output 7 V+ Positive Supply Voltage
OUT 1 5 V+ ADA4610-1 V– 2 TOP VIEW (Not to Scale)
0
+IN 3 4 –IN
10 9646- 0 Figure 3. ADA4610-1 Pin Configuration, 5-Lead SOT-23 (RJ Suffix)
Table 7. ADA4610-1 Pi n Function Descriptions, 5-Lead SOT-23 Pin No. Mnemonic Description
1 OUT Output 2 V− Negative Supply Voltage 3 +IN Noninverting Input 4 −IN Inverting Input 5 V+ Positive Supply Voltage Rev. G | Page 7 of 25 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS COMPARATIVE VOLTAGE AND VARIABLE VOLTAGE GRAPHS FUNCTIONAL DESCRIPTION APPLICATIONS INFORMATION INPUT OVERVOLTAGE PROTECTION PEAK DETECTOR CURRENT TO VOLTAGE (I TO V) CONVERSION APPLICATIONS Photodiode Circuits COMPARATOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
