Datasheet SFH 213 FA (OSRAM) - 3
| Manufacturer | OSRAM |
| Description | Silicon PIN Photodiode |
| Pages / Page | 9 / 3 — Version 1.3. SFH 213 FA. Parameter. Symbol. Values. Unit. Relative … |
| File Format / Size | PDF / 274 Kb |
| Document Language | English |
Version 1.3. SFH 213 FA. Parameter. Symbol. Values. Unit. Relative Spectral Sensitivity. Photocurrent / Open-Circuit Voltage
Model Line for this Datasheet
Text Version of Document
link to page 8 link to page 8

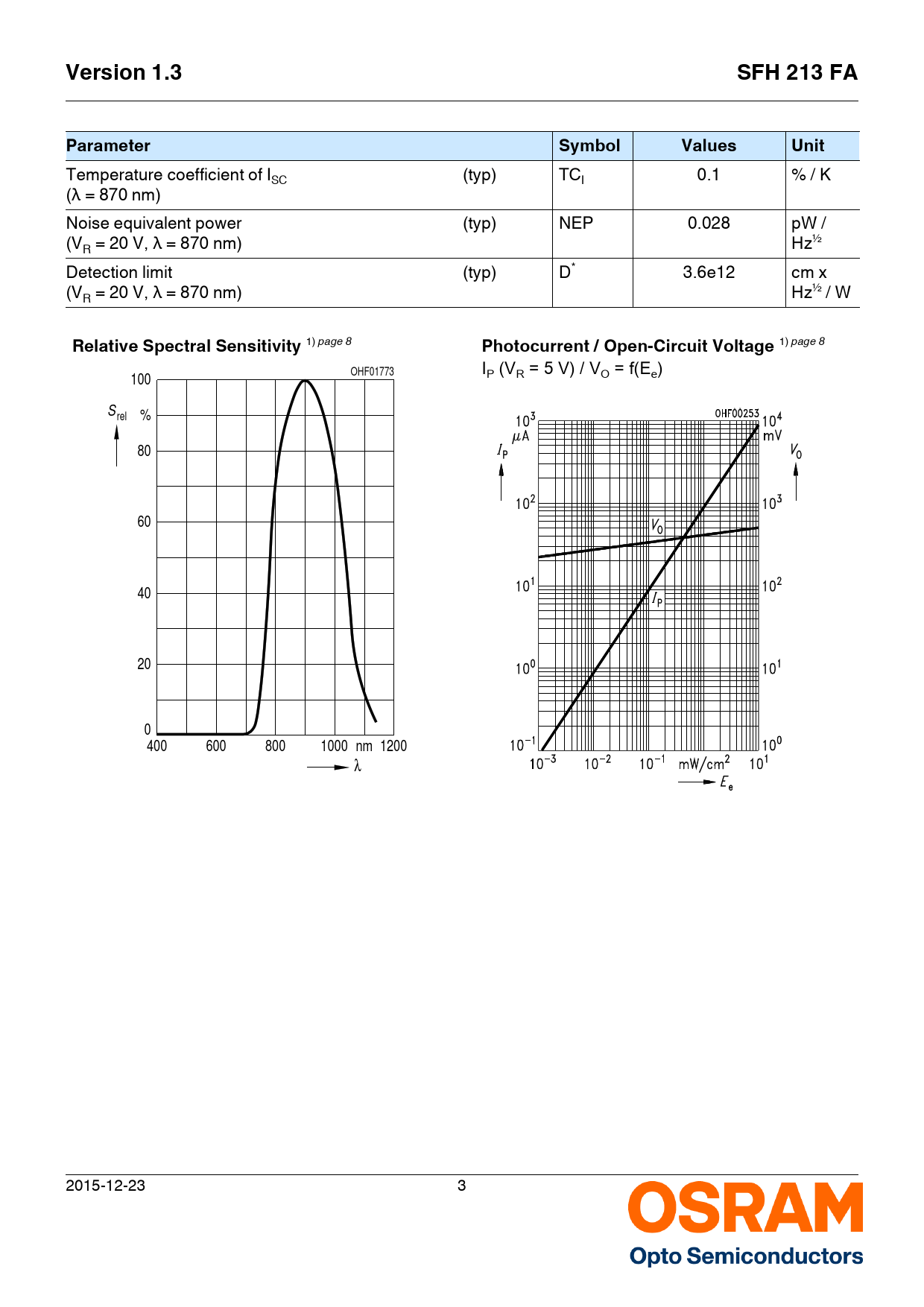

Version 1.3 SFH 213 FA Parameter Symbol Values Unit
Temperature coefficient of ISC (typ) TCI 0.1 % / K (λ = 870 nm) Noise equivalent power (typ) NEP 0.028 pW / (V = 20 V, λ = 870 nm) Hz½ R Detection limit (typ) D* 3.6e12 cm x (VR = 20 V, λ = 870 nm) Hz½ / W
Relative Spectral Sensitivity
1) page 8
Photocurrent / Open-Circuit Voltage
1) page 8 OHF01773 IP (VR = 5 V) / VO = f(Ee) 100 Srel % 80 60 40 20 0 400 600 800 1000 nm 1200 λ 2015-12-23 3 Document Outline Features: Applications Ordering Information Maximum Ratings Characteristics Relative Spectral Sensitivity Photocurrent / Open-Circuit Voltage Dark Current Capacitance Dark Current Directional Characteristics Package Outline Disclaimer Glossary
