Datasheet LT6108-1, LT6108-2 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | High Side Current Sense Amplifier with Reference and Comparator |
| Pages / Page | 30 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| File Format / Size | PDF / 361 Kb |
| Document Language | English |
ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. SPECIFIED TEMPERATURE RANGE
Model Line for this Datasheet
- LT6108AHMS8-1#PBF LT6108AHMS8-1#PBF LT6108AHMS8-1#TRPBF LT6108AHMS8-1#TRPBF LT6108AHMS8-2#PBF LT6108AHMS8-2#PBF LT6108AHMS8-2#TRPBF LT6108AHMS8-2#TRPBF LT6108AIMS8-1#PBF LT6108AIMS8-1#PBF LT6108AIMS8-1#TRPBF LT6108AIMS8-1#TRPBF LT6108AIMS8-2#PBF LT6108AIMS8-2#PBF LT6108AIMS8-2#TRPBF LT6108AIMS8-2#TRPBF LT6108HDCB-1#PBF LT6108HDCB-1#TRMPBF LT6108HDCB-1#TRMPBF LT6108HDCB-1#TRPBF LT6108HDCB-1#TRPBF LT6108HDCB-2#PBF LT6108HDCB-2#TRMPBF LT6108HDCB-2#TRMPBF LT6108HDCB-2#TRPBF LT6108HDCB-2#TRPBF LT6108HMS8-1#PBF LT6108HMS8-1#PBF LT6108HMS8-1#TRPBF LT6108HMS8-1#TRPBF LT6108HMS8-2#PBF LT6108HMS8-2#PBF LT6108HMS8-2#TRPBF LT6108HMS8-2#TRPBF LT6108IDCB-1#PBF LT6108IDCB-1#TRMPBF LT6108IDCB-1#TRMPBF LT6108IDCB-1#TRPBF LT6108IDCB-1#TRPBF LT6108IDCB-2#PBF LT6108IDCB-2#TRMPBF LT6108IDCB-2#TRMPBF LT6108IDCB-2#TRPBF LT6108IDCB-2#TRPBF LT6108IMS8-1#PBF LT6108IMS8-1#PBF LT6108IMS8-1#TRPBF LT6108IMS8-1#TRPBF LT6108IMS8-2#PBF LT6108IMS8-2#PBF LT6108IMS8-2#TRPBF LT6108IMS8-2#TRPBF
Text Version of Document
LT6108-1/LT6108-2

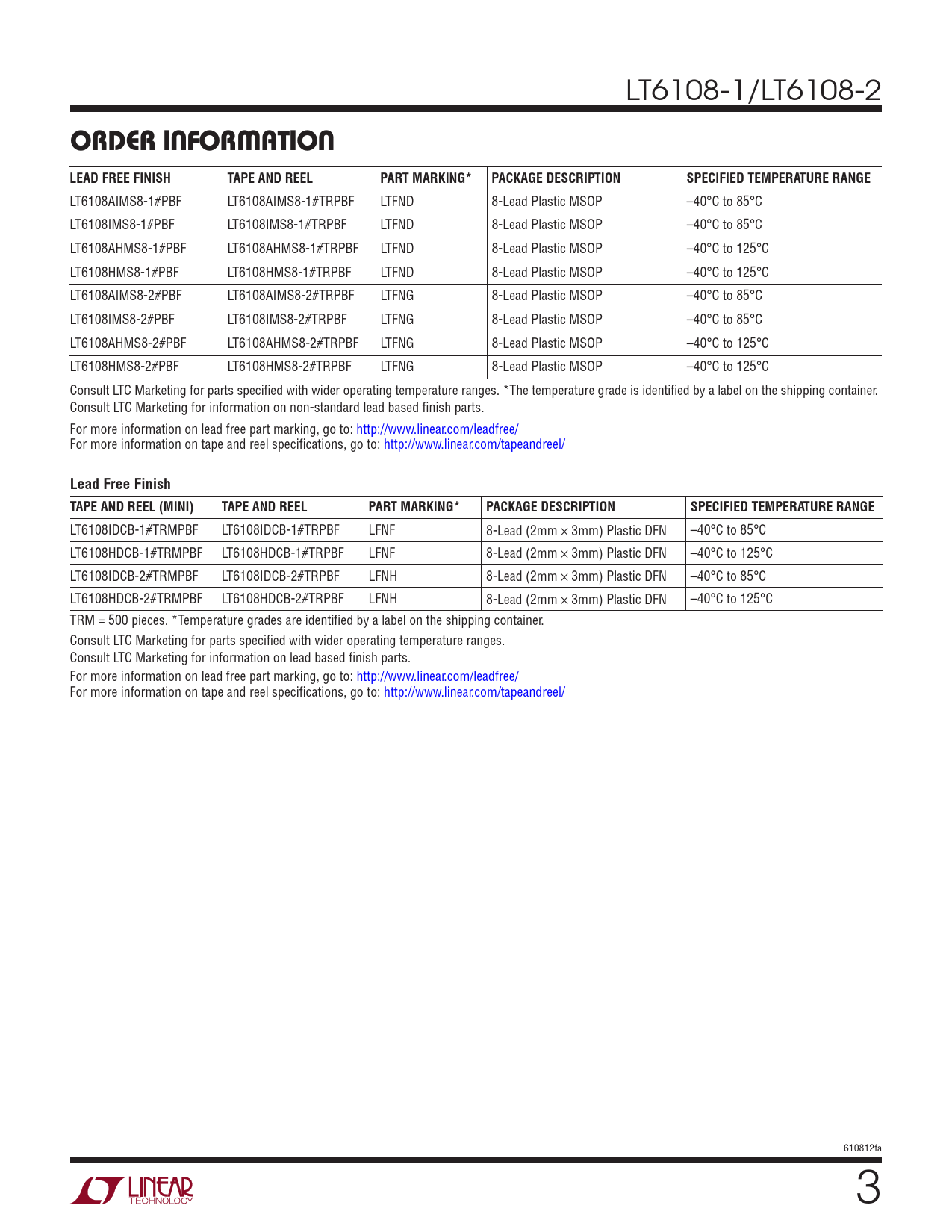

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6108AIMS8-1#PBF LT6108AIMS8-1#TRPBF LTFND 8-Lead Plastic MSOP –40°C to 85°C LT6108IMS8-1#PBF LT6108IMS8-1#TRPBF LTFND 8-Lead Plastic MSOP –40°C to 85°C LT6108AHMS8-1#PBF LT6108AHMS8-1#TRPBF LTFND 8-Lead Plastic MSOP –40°C to 125°C LT6108HMS8-1#PBF LT6108HMS8-1#TRPBF LTFND 8-Lead Plastic MSOP –40°C to 125°C LT6108AIMS8-2#PBF LT6108AIMS8-2#TRPBF LTFNG 8-Lead Plastic MSOP –40°C to 85°C LT6108IMS8-2#PBF LT6108IMS8-2#TRPBF LTFNG 8-Lead Plastic MSOP –40°C to 85°C LT6108AHMS8-2#PBF LT6108AHMS8-2#TRPBF LTFNG 8-Lead Plastic MSOP –40°C to 125°C LT6108HMS8-2#PBF LT6108HMS8-2#TRPBF LTFNG 8-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/
Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6108IDCB-1#TRMPBF LT6108IDCB-1#TRPBF LFNF 8-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LT6108HDCB-1#TRMPBF LT6108HDCB-1#TRPBF LFNF 8-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LT6108IDCB-2#TRMPBF LT6108IDCB-2#TRPBF LFNH 8-Lead (2mm × 3mm) Plastic DFN –40°C to 85°C LT6108HDCB-2#TRMPBF LT6108HDCB-2#TRPBF LFNH 8-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Consult LTC Marketing for parts specified with wider operating temperature ranges. Consult LTC Marketing for information on lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 610812fa 3 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
