Datasheet LT6700, LT6700HV (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Micropower, Low Voltage, Dual Comparator with 400mV Reference |
| Pages / Page | 20 / 8 — ELECTRICAL CHARACTERISTICS. The |
| File Format / Size | PDF / 461 Kb |
| Document Language | English |
ELECTRICAL CHARACTERISTICS. The
Model Line for this Datasheet
- LT6700CDCB-1#TRMPBF LT6700CDCB-1#TRPBF LT6700CDCB-2#TRMPBF LT6700CDCB-2#TRPBF LT6700CDCB-3#TRMPBF LT6700CDCB-3#TRPBF LT6700CS6-1#TRMPBF LT6700CS6-1#TRPBF LT6700CS6-2#TRMPBF LT6700CS6-2#TRPBF LT6700CS6-3#TRMPBF LT6700CS6-3#TRPBF LT6700HDCB-1#TRMPBF LT6700HDCB-1#TRPBF LT6700HDCB-2#TRMPBF LT6700HDCB-2#TRPBF LT6700HDCB-3#TRMPBF LT6700HDCB-3#TRPBF LT6700HS6-1#PBF LT6700HS6-1#TRMPBF LT6700HS6-1#TRPBF LT6700HS6-1#WTRPBF LT6700HS6-2#TRMPBF LT6700HS6-2#TRPBF LT6700HS6-3#TRMPBF LT6700HS6-3#TRPBF LT6700HVCS6-1#TRMPBF LT6700HVCS6-1#TRPBF LT6700HVCS6-2#TRMPBF LT6700HVCS6-2#TRPBF LT6700HVCS6-3#TRMPBF LT6700HVCS6-3#TRPBF LT6700HVHS6-1#TRMPBF LT6700HVHS6-1#TRPBF LT6700HVHS6-2#TRMPBF LT6700HVHS6-2#TRPBF LT6700HVHS6-3#TRMPBF LT6700HVHS6-3#TRPBF LT6700HVIS6-1#TRMPBF LT6700HVIS6-1#TRPBF LT6700HVIS6-2#TRMPBF LT6700HVIS6-2#TRPBF LT6700HVIS6-3#TRMPBF LT6700HVIS6-3#TRPBF LT6700IDCB-1#TRMPBF LT6700IDCB-1#TRPBF LT6700IDCB-2#TRMPBF LT6700IDCB-2#TRPBF LT6700IDCB-3#TRMPBF LT6700IDCB-3#TRPBF LT6700IS6-1#TRMPBF LT6700IS6-1#TRPBF LT6700IS6-2#TRMPBF LT6700IS6-2#TRPBF LT6700IS6-3#TRMPBF LT6700IS6-3#TRPBF LT6700MPDCB-1#TRMPBF LT6700MPDCB-1#TRPBF LT6700MPDCB-2#PBF LT6700MPDCB-2#TRMPBF LT6700MPDCB-2#TRPBF LT6700MPDCB-3#PBF LT6700MPDCB-3#TRMPBF LT6700MPDCB-3#TRPBF LT6700MPS6-1#TRMPBF LT6700MPS6-1#TRPBF LT6700MPS6-2#TRMPBF LT6700MPS6-2#TRPBF LT6700MPS6-3#TRMPBF LT6700MPS6-3#TRPBF
- LT6700CDCB-1#PBF LT6700CDCB-1#TRMPBF LT6700CDCB-1#TRPBF LT6700CS6-1#PBF LT6700CS6-1#TRMPBF LT6700CS6-1#TRPBF LT6700HDCB-1#PBF LT6700HDCB-1#TRMPBF LT6700HDCB-1#TRPBF LT6700HS6-1#PBF LT6700HS6-1#TRMPBF LT6700HS6-1#TRPBF LT6700IDCB-1#PBF LT6700IDCB-1#TRMPBF LT6700IDCB-1#TRPBF LT6700IS6-1#PBF LT6700IS6-1#TRMPBF LT6700IS6-1#TRPBF LT6700MPDCB-1#PBF LT6700MPDCB-1#TRMPBF LT6700MPDCB-1#TRPBF LT6700MPS6-1#PBF LT6700MPS6-1#TRMPBF LT6700MPS6-1#TRPBF
- LT6700CDCB-2#PBF LT6700CDCB-2#TRMPBF LT6700CDCB-2#TRPBF LT6700CS6-2#PBF LT6700CS6-2#TRMPBF LT6700CS6-2#TRPBF LT6700HDCB-2#PBF LT6700HDCB-2#TRMPBF LT6700HDCB-2#TRPBF LT6700HS6-2#PBF LT6700HS6-2#TRMPBF LT6700HS6-2#TRPBF LT6700IDCB-2#PBF LT6700IDCB-2#TRMPBF LT6700IDCB-2#TRPBF LT6700IS6-2#PBF LT6700IS6-2#TRMPBF LT6700IS6-2#TRPBF LT6700MPDCB-2#PBF LT6700MPDCB-2#TRMPBF LT6700MPDCB-2#TRPBF LT6700MPS6-2#PBF LT6700MPS6-2#TRMPBF LT6700MPS6-2#TRPBF
- LT6700CDCB-3#PBF LT6700CDCB-3#TRMPBF LT6700CDCB-3#TRPBF LT6700CS6-3#PBF LT6700CS6-3#TRMPBF LT6700CS6-3#TRPBF LT6700HDCB-3#PBF LT6700HDCB-3#TRMPBF LT6700HDCB-3#TRPBF LT6700HS6-3#PBF LT6700HS6-3#TRMPBF LT6700HS6-3#TRPBF LT6700IDCB-3#PBF LT6700IDCB-3#TRMPBF LT6700IDCB-3#TRPBF LT6700IS6-3#PBF LT6700IS6-3#TRMPBF LT6700IS6-3#TRPBF LT6700MPDCB-3#PBF LT6700MPDCB-3#TRMPBF LT6700MPDCB-3#TRPBF LT6700MPS6-3#PBF LT6700MPS6-3#TRMPBF LT6700MPS6-3#TRPBF
- LT6700HVCS6-1#PBF LT6700HVCS6-1#TRMPBF LT6700HVCS6-1#TRPBF LT6700HVHS6-1#PBF LT6700HVHS6-1#TRMPBF LT6700HVHS6-1#TRPBF LT6700HVIS6-1#PBF LT6700HVIS6-1#TRMPBF LT6700HVIS6-1#TRPBF
Text Version of Document

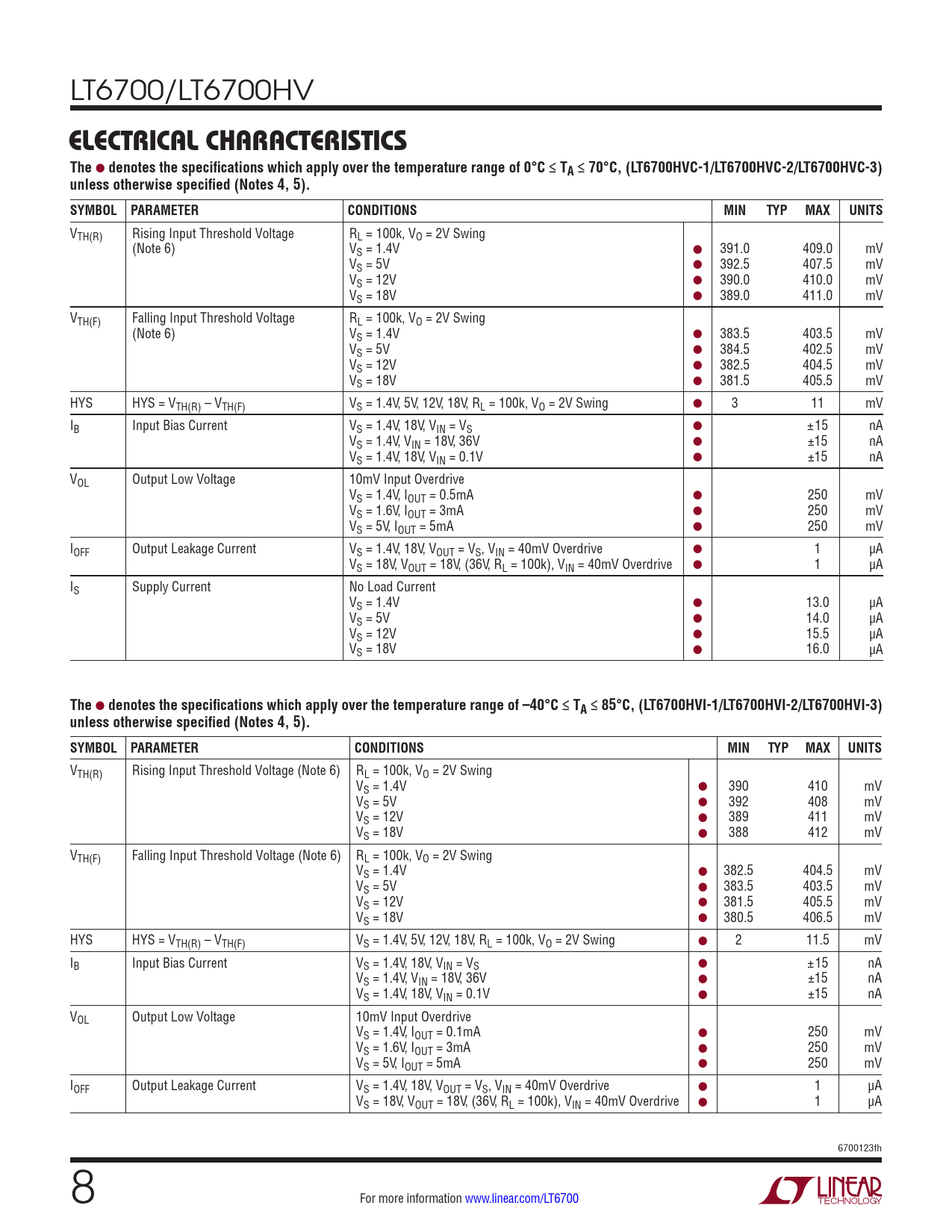

LT6700/LT6700HV
