Datasheet LT6703-2, LT6703-3, LT6703HV-2, LT6703HV-3 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Micropower, Low Voltage Comparator with 400mV Reference |
| Pages / Page | 14 / 8 — TYPICAL PERFORMANCE CHARACTERISTICS. Hysteresis vs Temperature. … |
| File Format / Size | PDF / 186 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Hysteresis vs Temperature. Hysteresis vs Supply Voltage. Quiescent Supply Current
Model Line for this Datasheet
- LT6703CDC-2#TRMPBF LT6703CDC-2#TRPBF LT6703CDC-3#TRMPBF LT6703CDC-3#TRPBF LT6703HDC-2#TRMPBF LT6703HDC-2#TRPBF LT6703HDC-3#TRMPBF LT6703HDC-3#TRPBF LT6703HVCS5-2#TRMPBF LT6703HVCS5-2#TRPBF LT6703HVCS5-3#TRMPBF LT6703HVCS5-3#TRPBF LT6703HVHS5-2#TRMPBF LT6703HVHS5-2#TRPBF LT6703HVHS5-3#TRMPBF LT6703HVHS5-3#TRPBF LT6703HVIS5-2#TRMPBF LT6703HVIS5-2#TRPBF LT6703HVIS5-3#TRMPBF LT6703HVIS5-3#TRPBF LT6703IDC-2#TRMPBF LT6703IDC-2#TRPBF LT6703IDC-3#TRMPBF LT6703IDC-3#TRPBF
- LT6703CDC-2#PBF LT6703CDC-2#TRMPBF LT6703CDC-2#TRPBF LT6703HDC-2#PBF LT6703HDC-2#TRMPBF LT6703HDC-2#TRPBF LT6703IDC-2#PBF LT6703IDC-2#TRMPBF LT6703IDC-2#TRPBF
- LT6703CDC-3#PBF LT6703CDC-3#TRMPBF LT6703CDC-3#TRPBF LT6703HDC-3#PBF LT6703HDC-3#TRMPBF LT6703HDC-3#TRPBF LT6703IDC-3#PBF LT6703IDC-3#TRMPBF LT6703IDC-3#TRPBF
Text Version of Document
LT6703-2/LT6703-3 LT6703HV-2/LT6703HV-3

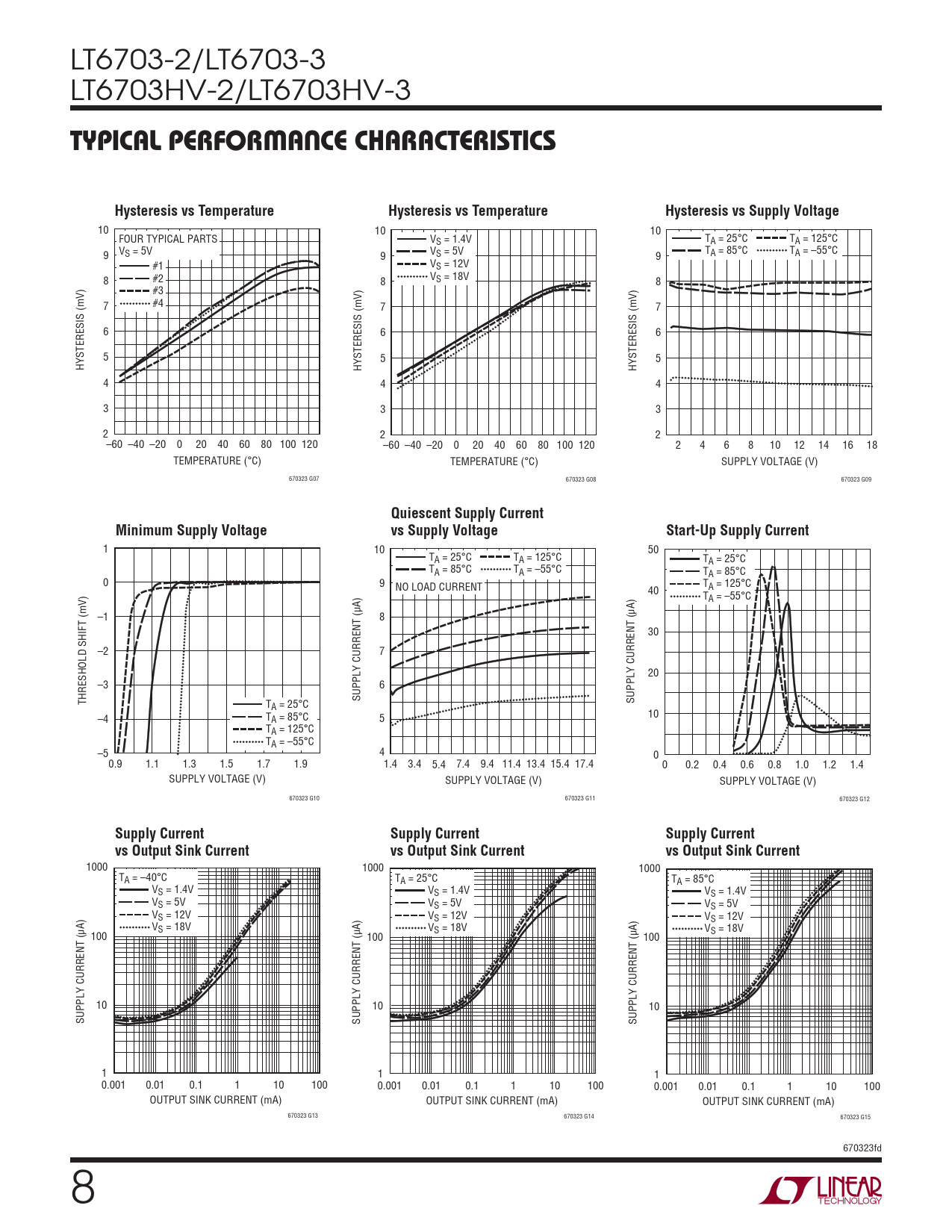

TYPICAL PERFORMANCE CHARACTERISTICS Hysteresis vs Temperature Hysteresis vs Temperature Hysteresis vs Supply Voltage
10 10 10 FOUR TYPICAL PARTS VS = 1.4V TA = 25°C TA = 125°C 9 VS = 5V T T 9 VS = 5V 9 A = 85°C A = –55°C #1 VS = 12V 8 #2 V 8 S = 18V 8 #3 7 #4 7 7 6 6 6 5 5 5 HYSTERESIS (mV) HYSTERESIS (mV) HYSTERESIS (mV) 4 4 4 3 3 3 2 2 2 –60 –40 –20 0 20 40 60 80 100 120 –60 –40 –20 0 20 40 60 80 100 120 2 4 6 8 10 12 14 16 18 TEMPERATURE (°C) TEMPERATURE (°C) SUPPLY VOLTAGE (V) 670323 G07 670323 G08 670323 G09
Quiescent Supply Current Minimum Supply Voltage vs Supply Voltage Start-Up Supply Current
1 10 50 TA = 25°C TA = 125°C TA = 25°C TA = 85°C TA = –55°C TA = 85°C 0 9 NO LOAD CURRENT T 40 A = 125°C TA = –55°C –1 8 30 –2 7 20 –3 6 THRESHOLD SHIFT (mV) SUPPLY CURRENT (μA) T SUPPLY CURRENT (μA) A = 25°C 10 –4 TA = 85°C 5 TA = 125°C TA = –55°C –5 4 0 0.9 1.1 1.3 1.5 1.7 1.9 1.4 3.4 5.4 7.4 9.4 11.4 13.4 15.4 17.4 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 SUPPLY VOLTAGE (V) SUPPLY VOLTAGE (V) SUPPLY VOLTAGE (V) 670323 G10 670323 G11 670323 G12
Supply Current Supply Current Supply Current vs Output Sink Current vs Output Sink Current vs Output Sink Current
1000 1000 1000 TA = –40°C TA = 25°C TA = 85°C VS = 1.4V VS = 1.4V VS = 1.4V VS = 5V VS = 5V VS = 5V VS = 12V VS = 12V VS = 12V VS = 18V VS = 18V V 100 S = 18V 100 100 10 10 10 SUPPLY CURRENT (μA) SUPPLY CURRENT (μA) SUPPLY CURRENT (μA) 1 1 1 0.001 0.01 0.1 1 10 100 0.001 0.01 0.1 1 10 100 0.001 0.01 0.1 1 10 100 OUTPUT SINK CURRENT (mA) OUTPUT SINK CURRENT (mA) OUTPUT SINK CURRENT (mA) 670323 G13 670323 G14 670323 G15 670323fd 8
