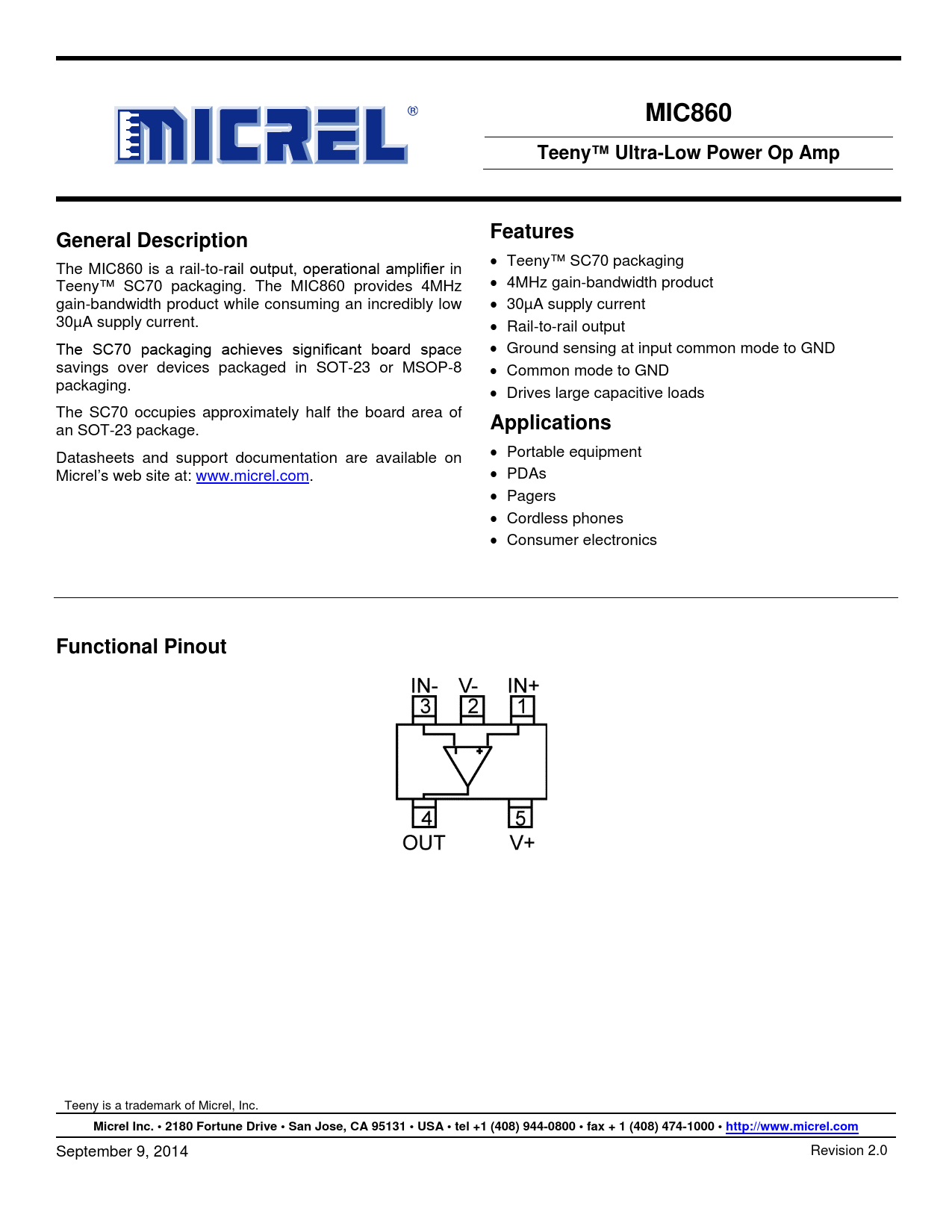

MIC860. Teeny™ Ultra-Low Power Op Amp General Description Features The SC70 packaging achieves significant board space
Model Line for this Datasheet
Text Version of Document
MIC860
Teeny™ Ultra-Low Power Op Amp General Description Features The SC70 packaging achieves significant board space
savings over devices packaged in SOT-23 or MSOP-8
packaging. •
•
•
•
•
•
• The SC70 occupies approximately half the board area of
an SOT-23 package. Applications The MIC860 is a rail-to-rail output, operational amplifier in
Teeny™ SC70 packaging. The MIC860 provides 4MHz
gain-bandwidth product while consuming an incredibly low
30µA supply current. Datasheets and support documentation are available on
Micrel’s web site at: www.micrel.com. •
•
•
•
• Teeny™ SC70 packaging
4MHz gain-bandwidth product
30µA supply current
Rail-to-rail output
Ground sensing at input common mode to GND
Common mode to GND
Drives large capacitive loads Portable equipment
PDAs
Pagers
Cordless phones
Consumer electronics Functional Pinout Teeny is a trademark of Micrel, Inc.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com September 9, 2014 Revision 2.0
