Datasheet MIC860 (Microchip) - 2
| Manufacturer | Microchip |
| Description | The MIC860 is a rail-to-rail output, operational amplifier in Teeny™ SC70 packaging |
| Pages / Page | 13 / 2 — Micrel, Inc. MIC860 Ordering Information |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
Micrel, Inc. MIC860 Ordering Information
Model Line for this Datasheet
Text Version of Document

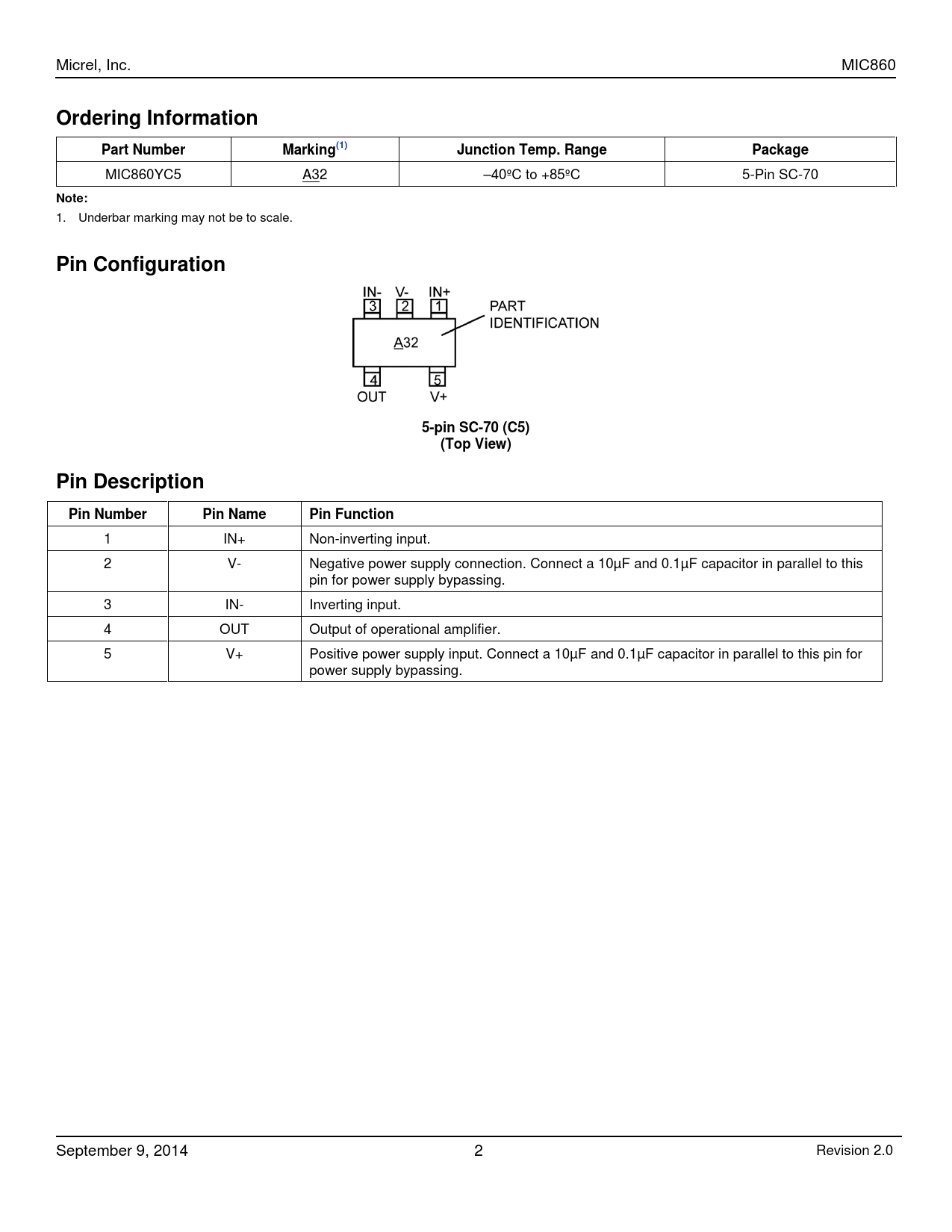

Micrel, Inc. MIC860 Ordering Information
Part Number Marking(1) Junction Temp. Range Package MIC860YC5 A32 –40ºC to +85ºC 5-Pin SC-70 Note:
1. Underbar marking may not be to scale. Pin Configuration 5-pin SC-70 (C5)
(Top View) Pin Description
Pin Number Pin Name 1 IN+ Non-inverting input. 2 V-Negative power supply connection. Connect a 10µF and 0.1µF capacitor in parallel to this
pin for power supply bypassing. 3 IN-Inverting input. 4 OUT 5 V+ September 9, 2014 Pin Function Output of operational amplifier.
Positive power supply input. Connect a 10µF and 0.1µF capacitor in parallel to this pin for
power supply bypassing. 2 Revision 2.0
Part Number Marking(1) Junction Temp. Range Package MIC860YC5 A32 –40ºC to +85ºC 5-Pin SC-70 Note:
1. Underbar marking may not be to scale. Pin Configuration 5-pin SC-70 (C5)
(Top View) Pin Description
Pin Number Pin Name 1 IN+ Non-inverting input. 2 V-Negative power supply connection. Connect a 10µF and 0.1µF capacitor in parallel to this
pin for power supply bypassing. 3 IN-Inverting input. 4 OUT 5 V+ September 9, 2014 Pin Function Output of operational amplifier.
Positive power supply input. Connect a 10µF and 0.1µF capacitor in parallel to this pin for
power supply bypassing. 2 Revision 2.0
