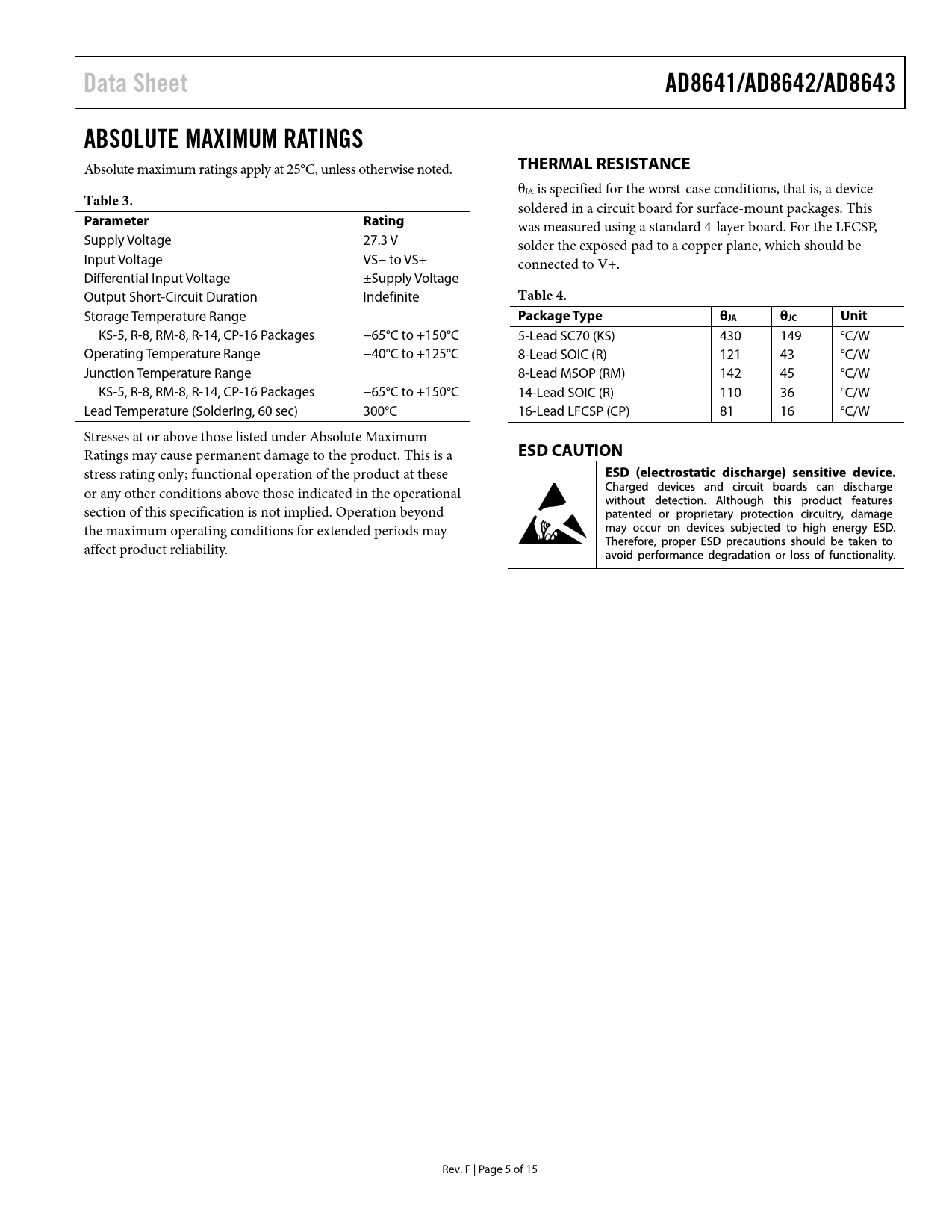

Data Sheet. AD8641/AD8642/AD8643. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating. Table 4. Package Type. θJA. θJC
Model Line for this Datasheet
Text Version of Document
Data Sheet AD8641/AD8642/AD8643 ABSOLUTE MAXIMUM RATINGS
Absolute maximum ratings apply at 25°C, unless otherwise noted.
THERMAL RESISTANCE
θ
Table 3.
JA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. This
Parameter Rating
was measured using a standard 4-layer board. For the LFCSP, Supply Voltage 27.3 V solder the exposed pad to a copper plane, which should be Input Voltage VS− to VS+ connected to V+. Differential Input Voltage ±Supply Voltage Output Short-Circuit Duration Indefinite
Table 4.
Storage Temperature Range
Package Type θJA θJC Unit
KS-5, R-8, RM-8, R-14, CP-16 Packages −65°C to +150°C 5-Lead SC70 (KS) 430 149 °C/W Operating Temperature Range −40°C to +125°C 8-Lead SOIC (R) 121 43 °C/W Junction Temperature Range 8-Lead MSOP (RM) 142 45 °C/W KS-5, R-8, RM-8, R-14, CP-16 Packages −65°C to +150°C 14-Lead SOIC (R) 110 36 °C/W Lead Temperature (Soldering, 60 sec) 300°C 16-Lead LFCSP (CP) 81 16 °C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
