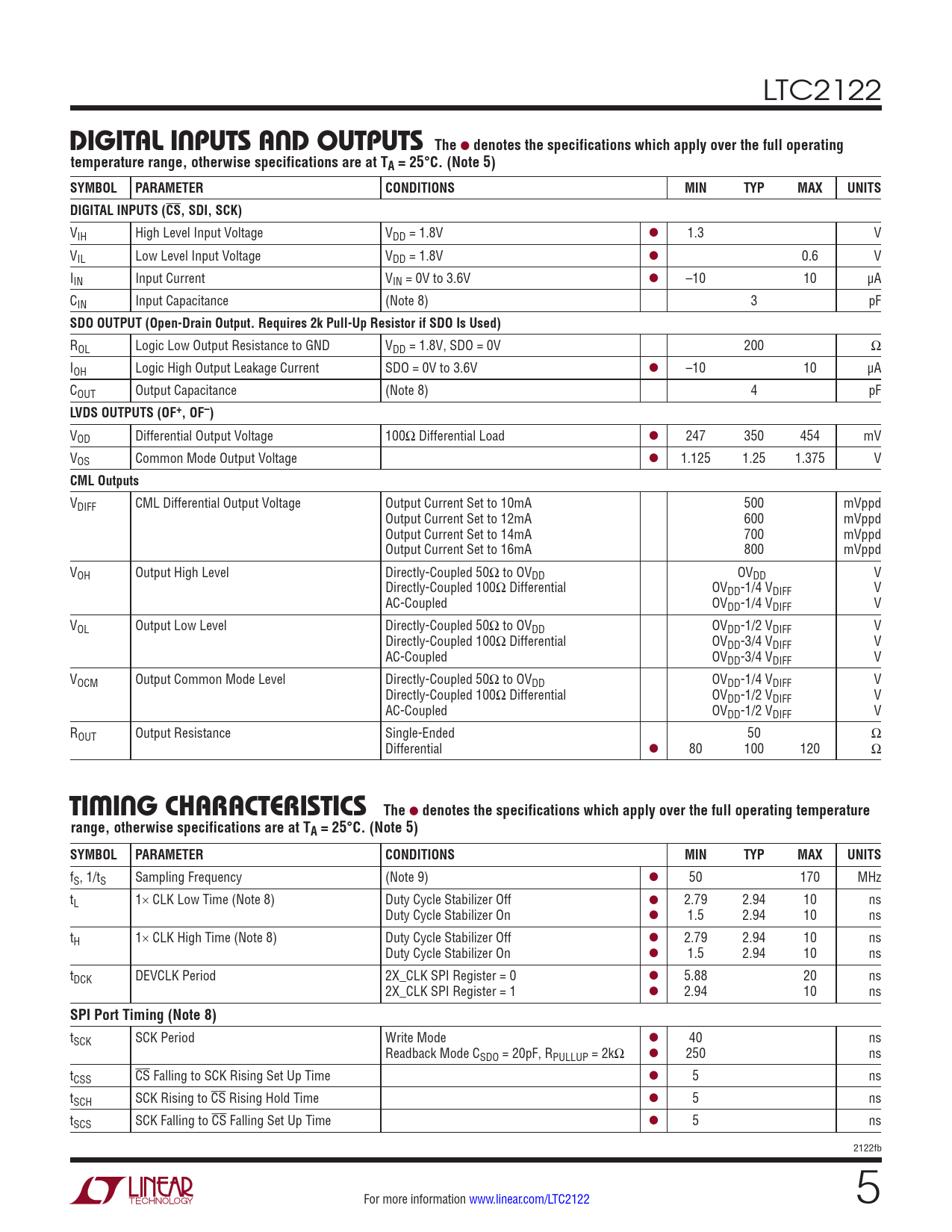

DIGITAL INPUTS AND OUTPUTS. The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC2122
DIGITAL INPUTS AND OUTPUTS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. (Note 5) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS DIGITAL INPUTS (CS, SDI, SCK)
VIH High Level Input Voltage VDD = 1.8V l 1.3 V VIL Low Level Input Voltage VDD = 1.8V l 0.6 V IIN Input Current VIN = 0V to 3.6V l –10 10 µA CIN Input Capacitance (Note 8) 3 pF
SDO OUTPUT (Open-Drain Output. Requires 2k Pull-Up Resistor if SDO Is Used)
ROL Logic Low Output Resistance to GND VDD = 1.8V, SDO = 0V 200 Ω IOH Logic High Output Leakage Current SDO = 0V to 3.6V l –10 10 µA COUT Output Capacitance (Note 8) 4 pF
LVDS OUTPUTS (OF+, OF–)
VOD Differential Output Voltage 100Ω Differential Load l 247 350 454 mV VOS Common Mode Output Voltage l 1.125 1.25 1.375 V
CML Outputs
VDIFF CML Differential Output Voltage Output Current Set to 10mA 500 mVppd Output Current Set to 12mA 600 mVppd Output Current Set to 14mA 700 mVppd Output Current Set to 16mA 800 mVppd VOH Output High Level Directly-Coupled 50Ω to OVDD OVDD V Directly-Coupled 100Ω Differential OVDD-1/4 VDIFF V AC-Coupled OVDD-1/4 VDIFF V VOL Output Low Level Directly-Coupled 50Ω to OVDD OVDD-1/2 VDIFF V Directly-Coupled 100Ω Differential OVDD-3/4 VDIFF V AC-Coupled OVDD-3/4 VDIFF V VOCM Output Common Mode Level Directly-Coupled 50Ω to OVDD OVDD-1/4 VDIFF V Directly-Coupled 100Ω Differential OVDD-1/2 VDIFF V AC-Coupled OVDD-1/2 VDIFF V ROUT Output Resistance Single-Ended 50 Ω Differential l 80 100 120 Ω
