Datasheet LTC2310-12 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 12-Bit + Sign, 2Msps Differential Input ADC with Wide Input Common Mode Range |
| Pages / Page | 24 / 10 — FuncTional block DiagraM. CMOS I/O Mode. LVDS I/O Mode |
| File Format / Size | PDF / 742 Kb |
| Document Language | English |

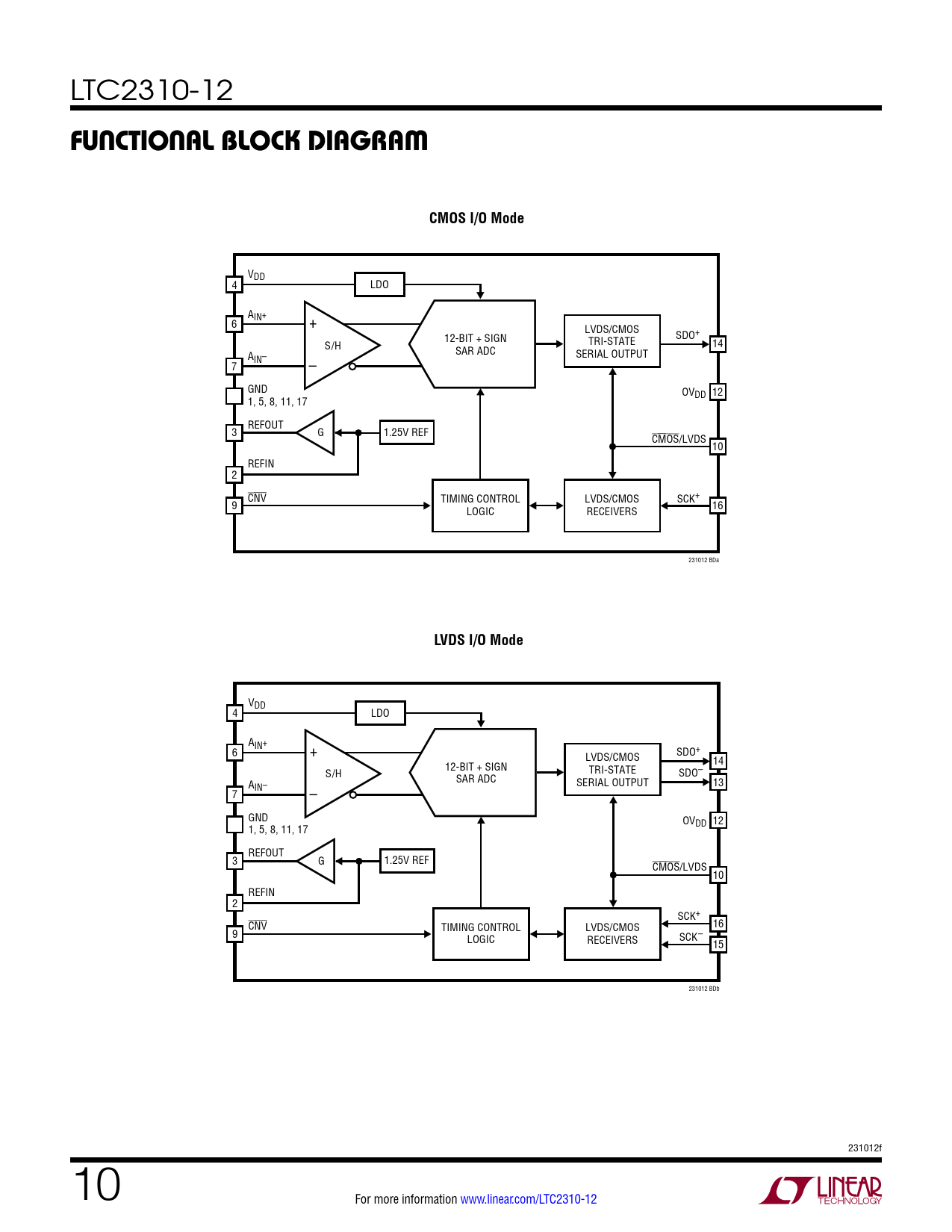

FuncTional block DiagraM. CMOS I/O Mode. LVDS I/O Mode
Model Line for this Datasheet
Text Version of Document
LTC2310-12
FuncTional block DiagraM CMOS I/O Mode
VDD 4 LDO AIN+ 6 + LVDS/CMOS 12-BIT + SIGN TRI-STATE SDO+ S/H 14 SAR ADC A SERIAL OUTPUT IN– 7 – GND OVDD 12 1, 5, 8, 11, 17 REFOUT 3 G 1.25V REF CMOS/LVDS 10 REFIN 2 CNV TIMING CONTROL LVDS/CMOS SCK+ 9 LOGIC RECEIVERS 16 231012 BDa
LVDS I/O Mode
VDD 4 LDO AIN+ 6 + LVDS/CMOS SDO+ 14 12-BIT + SIGN TRI-STATE S/H SAR ADC SDO– A SERIAL OUTPUT 13 IN– 7 – GND OVDD 12 1, 5, 8, 11, 17 REFOUT 3 G 1.25V REF CMOS/LVDS 10 REFIN 2 SCK+ CNV TIMING CONTROL LVDS/CMOS 16 9 LOGIC RECEIVERS SCK– 15 231012 BDb 231012f 10 For more information www.linear.com/LTC2310-12 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Electrical Characteristics Converter Characteristics Dynamic Accuracy Internal Reference Characteristics Digital Inputs And Digital Outputs Power Requirements ADC Timing Characteristics Typical Performance Characteristics Functional Block Diagram Timing Diagram Applications Information Package Description Related Parts
