Datasheet LT3013 (Analog Devices) - 10
| Manufacturer | Analog Devices |
| Description | 250mA, 4V to 80V Low Dropout Micropower Linear Regulator with PWRGD |
| Pages / Page | 20 / 10 — TYPICAL PERFORMANCE CHARACTERISTICS. Load Regulation. Output Noise … |
| File Format / Size | PDF / 233 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Load Regulation. Output Noise Spectral Density. 10Hz to 100kHz Output Noise
Model Line for this Datasheet
Text Version of Document
LT3013

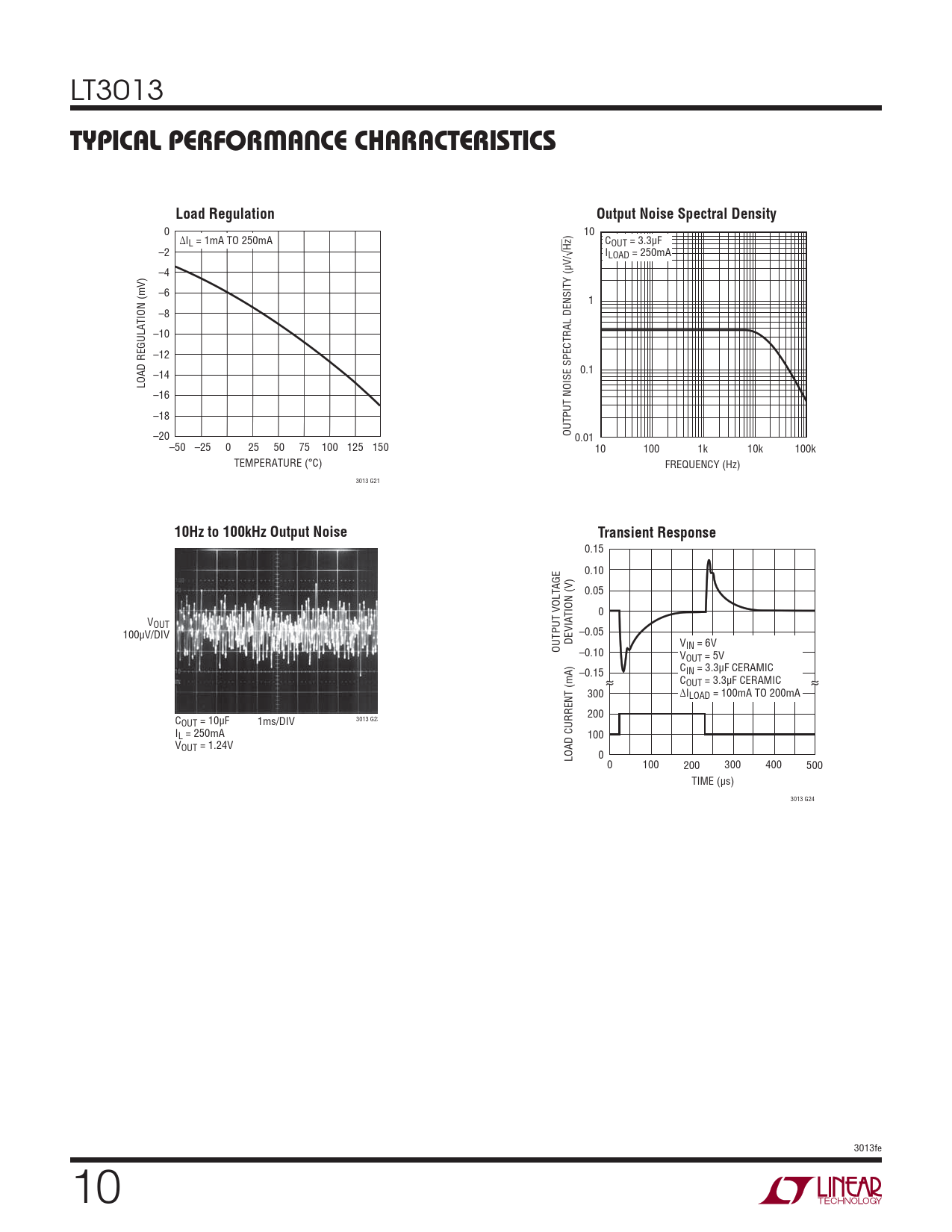

TYPICAL PERFORMANCE CHARACTERISTICS Load Regulation Output Noise Spectral Density
0 ) 10 ΔIL = 1mA TO 250mA Hz COUT = 3.3μF –2 ILOAD = 250mA –4 –6 1 –8 –10 –12 0.1 –14 LOAD REGULATION (mV) –16 –18 OUTPUT NOISE SPECTRAL DENSITY (μV/√ –20 0.01 –50 –25 0 25 50 75 100 125 150 10 100 1k 10k 100k TEMPERATURE (°C) FREQUENCY (Hz) 3013 G21
10Hz to 100kHz Output Noise Transient Response
0.15 0.10 0.05 0 VOUT –0.05 100μV/DIV DEVIATION (V) V OUTPUT VOLTAGE IN = 6V –0.10 VOUT = 5V –0.15 CIN = 3.3μF CERAMIC COUT = 3.3μF CERAMIC 300 ΔILOAD = 100mA TO 200mA 200 COUT = 10μF 1ms/DIV 3013 G23 IL = 250mA 100 VOUT = 1.24V LOAD CURRENT (mA) 0 0 100 200 300 400 500 TIME (μs) 3013 G24 3013fe 10
