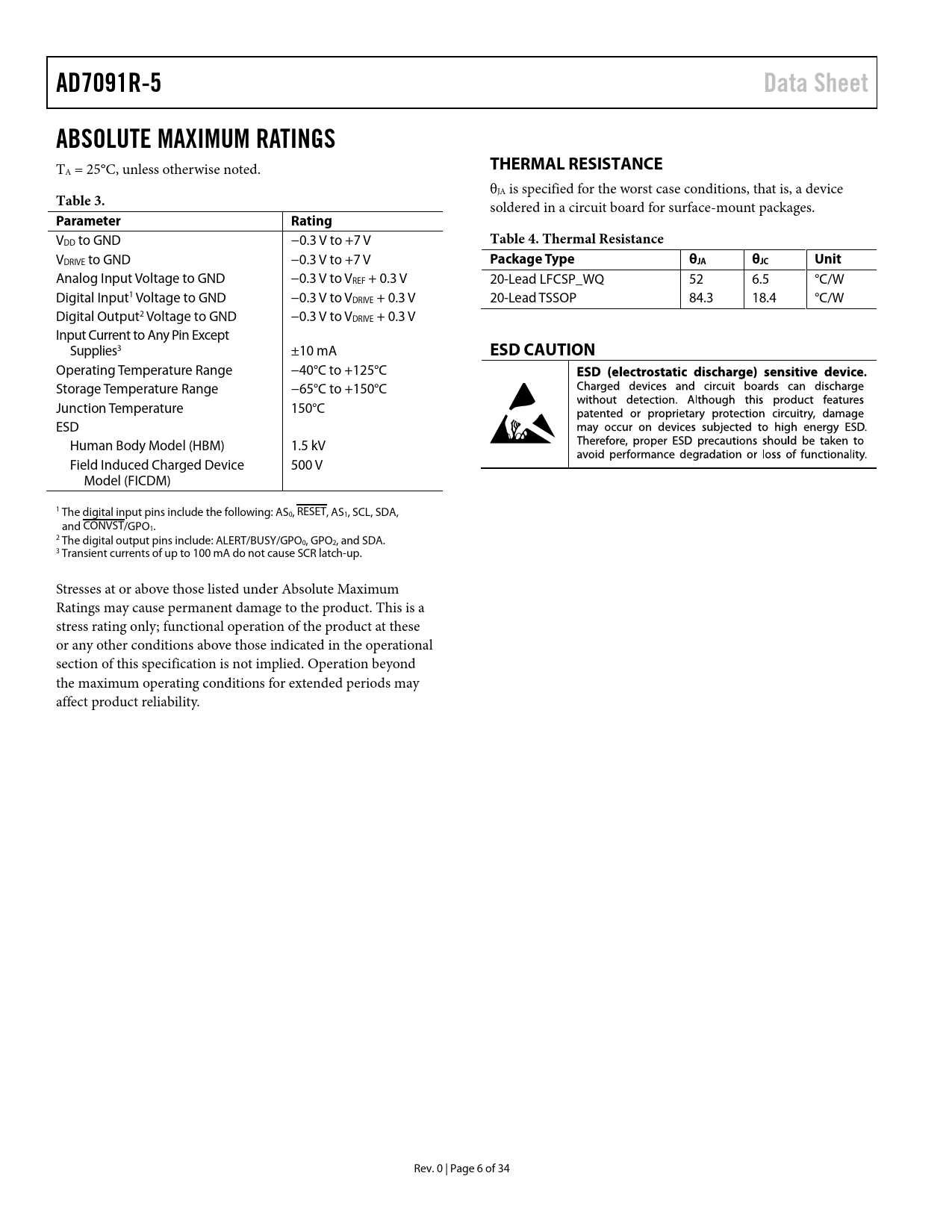

AD7091R-5. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating. Table 4. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
AD7091R-5 Data Sheet ABSOLUTE MAXIMUM RATINGS
T
THERMAL RESISTANCE
A = 25°C, unless otherwise noted. θ
Table 3.
JA is specified for the worst case conditions, that is, a device soldered in a circuit board for surface-mount packages.
Parameter Rating
VDD to GND −0.3 V to +7 V
Table 4. Thermal Resistance
VDRIVE to GND −0.3 V to +7 V
Package Type θJA θJC Unit
Analog Input Voltage to GND −0.3 V to VREF + 0.3 V 20-Lead LFCSP_WQ 52 6.5 °C/W Digital Input1 Voltage to GND −0.3 V to VDRIVE + 0.3 V 20-Lead TSSOP 84.3 18.4 °C/W Digital Output2 Voltage to GND −0.3 V to VDRIVE + 0.3 V Input Current to Any Pin Except Supplies3 ±10 mA
