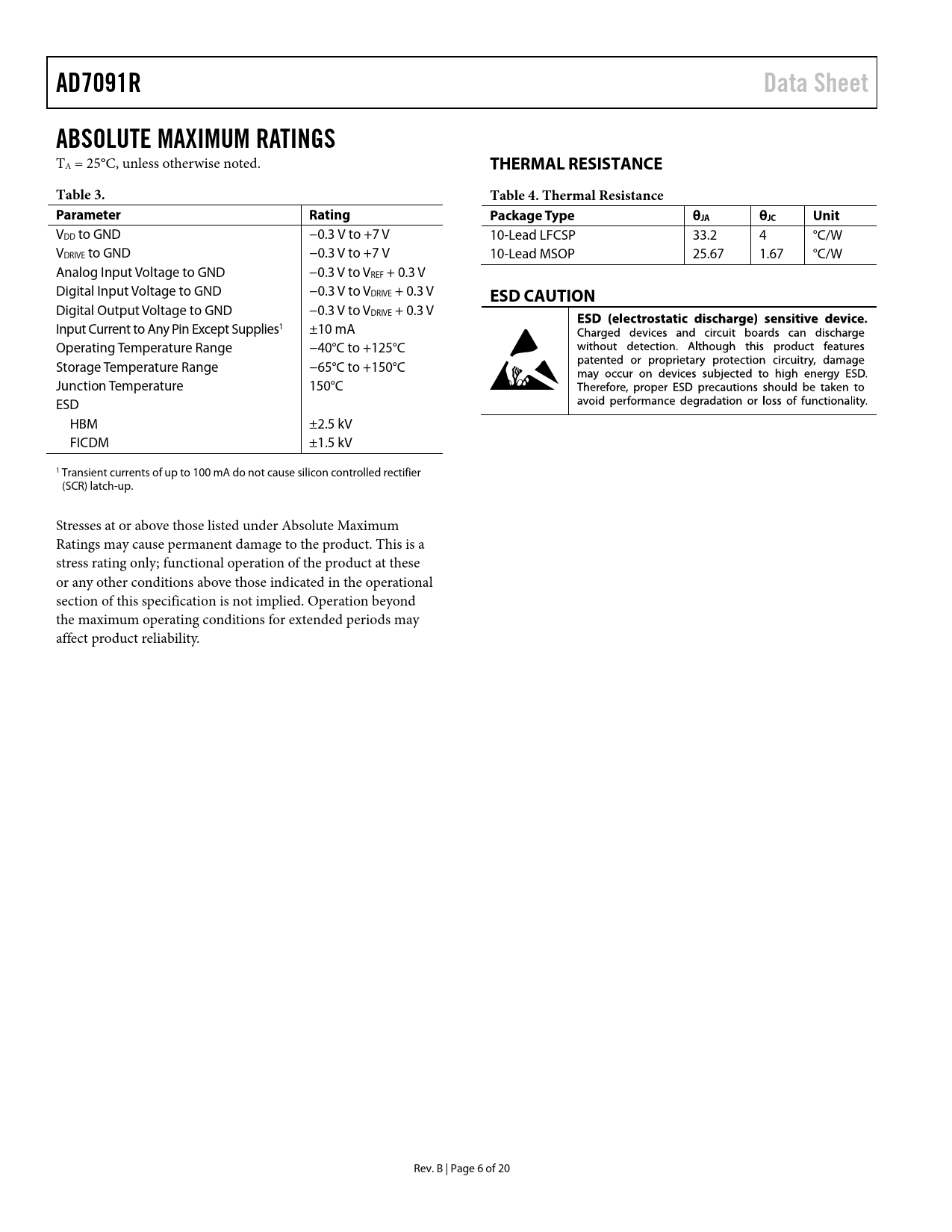

AD7091R. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Table 4. Thermal Resistance. Parameter. Rating
Model Line for this Datasheet
Text Version of Document
AD7091R Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted.
THERMAL RESISTANCE Table 3. Table 4. Thermal Resistance Parameter Rating Package Type θJA θJC Unit
VDD to GND −0.3 V to +7 V 10-Lead LFCSP 33.2 4 °C/W VDRIVE to GND −0.3 V to +7 V 10-Lead MSOP 25.67 1.67 °C/W Analog Input Voltage to GND −0.3 V to VREF + 0.3 V Digital Input Voltage to GND −0.3 V to VDRIVE + 0.3 V
