Datasheet AD7091R (Analog Devices) - 7

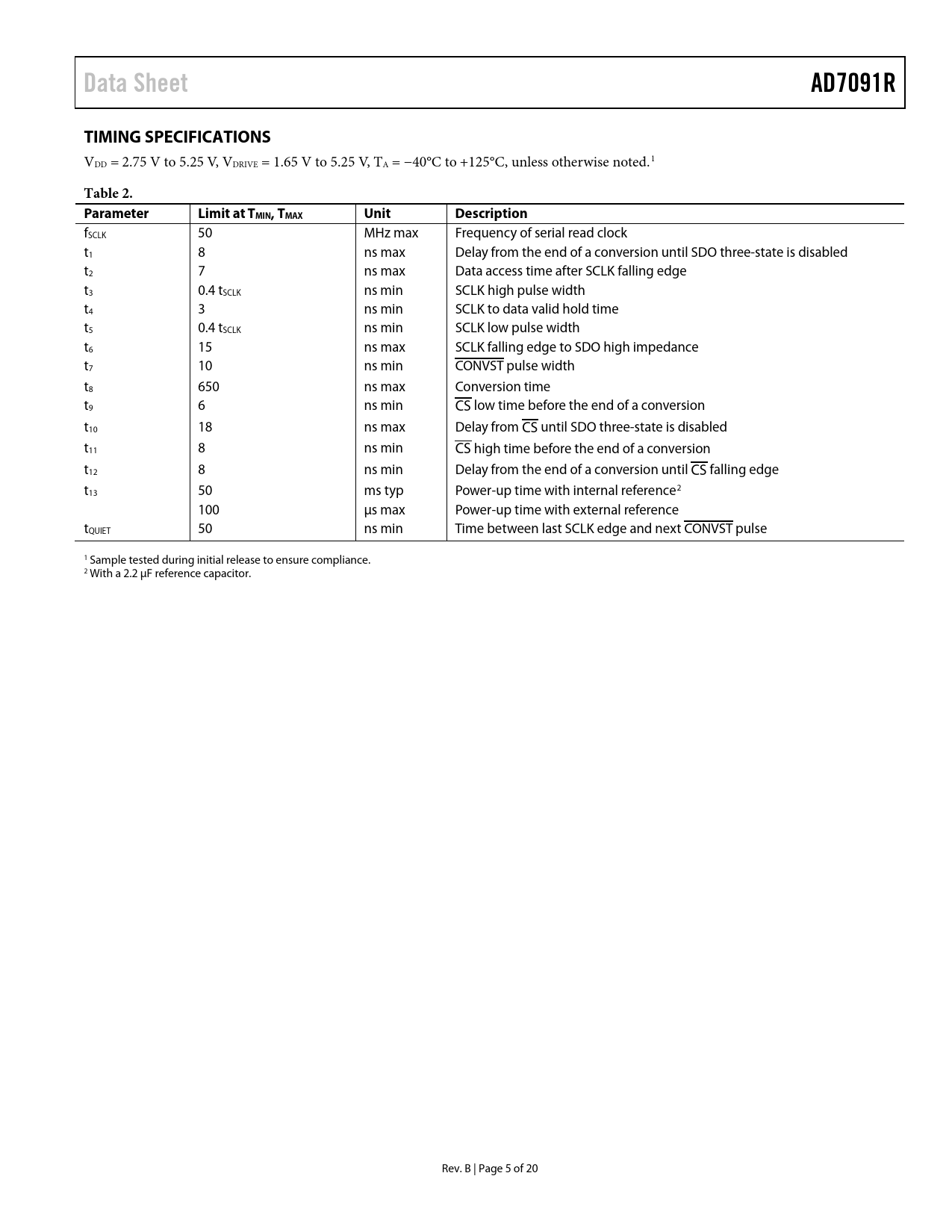

Data Sheet AD7091R TIMING SPECIFICATIONS
VDD = 2.75 V to 5.25 V, VDRIVE = 1.65 V to 5.25 V, TA = −40°C to +125°C, unless otherwise noted.1
Table 2. Parameter Limit at TMIN, TMAX Unit Description
fSCLK 50 MHz max Frequency of serial read clock t1 8 ns max Delay from the end of a conversion until SDO three-state is disabled t2 7 ns max Data access time after SCLK falling edge t3 0.4 tSCLK ns min SCLK high pulse width t4 3 ns min SCLK to data valid hold time t5 0.4 tSCLK ns min SCLK low pulse width t6 15 ns max SCLK falling edge to SDO high impedance t7 10 ns min CONVST pulse width t8 650 ns max Conversion time t9 6 ns min CS low time before the end of a conversion t10 18 ns max Delay from CS until SDO three-state is disabled t11 8 ns min CS high time before the end of a conversion t12 8 ns min Delay from the end of a conversion until CS falling edge t13 50 ms typ Power-up time with internal reference2 100 µs max Power-up time with external reference tQUIET 50 ns min Time between last SCLK edge and next CONVST pulse 1 Sample tested during initial release to ensure compliance. 2 With a 2.2 µF reference capacitor. Rev. B | Page 5 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION CIRCUIT INFORMATION CONVERTER OPERATION ADC TRANSFER FUNCTION INTERNAL/EXTERNAL VOLTAGE REFERENCE TYPICAL CONNECTION DIAGRAM ANALOG INPUT MODES OF OPERATION Normal Mode Power-Down Mode POWER CONSUMPTION Normal Mode Normal and Power-Down Mode Combination SERIAL INTERFACE WITH BUSY INDICATOR WITHOUT BUSY INDICATOR SOFTWARE RESET INTERFACING WITH 8-/16-BIT SPI OUTLINE DIMENSIONS ORDERING GUIDE
