| Description | 2.9 GHz Ultralow Distortion RF/IF Differential Amplifier |
| Pages / Page | 25 / 8 — Data Sheet. ADL5561. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VIP2 1. … |
| Revision | G |
| File Format / Size | PDF / 773 Kb |
| Document Language | English |

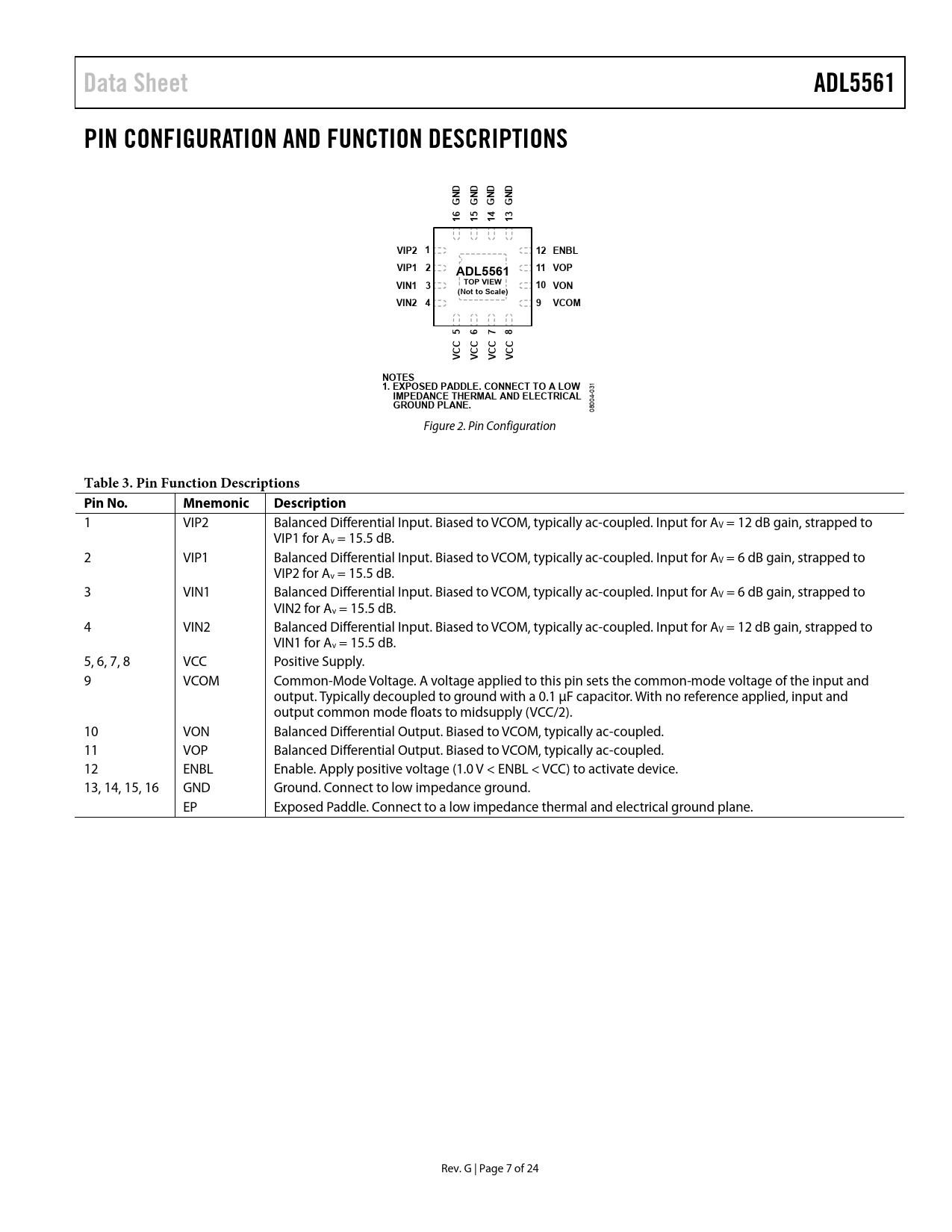

Data Sheet. ADL5561. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VIP2 1. 12 ENBL. VIP1 2. 11 VOP. VIN1 3. TOP VIEW. 10 VON. (Not to Scale)
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5561 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ND ND ND ND G G G G 16 15 14 13 VIP2 1 12 ENBL VIP1 2 11 VOP ADL5561 VIN1 3 TOP VIEW 10 VON (Not to Scale) VIN2 4 9 VCOM 5 6 7 8 VCC VCC VCC VCC NOTES 1. EXPOSED PADDLE. CONNECT TO A LOW IMPEDANCE THERMAL AND ELECTRICAL
031
GROUND PLANE.
08004- Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1 VIP2 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to VIP1 for Av = 15.5 dB. 2 VIP1 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to VIP2 for Av = 15.5 dB. 3 VIN1 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to VIN2 for Av = 15.5 dB. 4 VIN2 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to VIN1 for Av = 15.5 dB. 5, 6, 7, 8 VCC Positive Supply. 9 VCOM Common-Mode Voltage. A voltage applied to this pin sets the common-mode voltage of the input and output. Typically decoupled to ground with a 0.1 µF capacitor. With no reference applied, input and output common mode floats to midsupply (VCC/2). 10 VON Balanced Differential Output. Biased to VCOM, typically ac-coupled. 11 VOP Balanced Differential Output. Biased to VCOM, typically ac-coupled. 12 ENBL Enable. Apply positive voltage (1.0 V < ENBL < VCC) to activate device. 13, 14, 15, 16 GND Ground. Connect to low impedance ground. EP Exposed Paddle. Connect to a low impedance thermal and electrical ground plane. Rev. G | Page 7 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE APPLICATIONS INFORMATION BASIC CONNECTIONS INPUT AND OUTPUT INTERFACING Single-Ended Input to Differential Output GAIN ADJUSTMENT AND INTERFACING ADC INTERFACING LAYOUT CONSIDERATIONS SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
031
GROUND PLANE.
08004- Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1 VIP2 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to VIP1 for Av = 15.5 dB. 2 VIP1 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to VIP2 for Av = 15.5 dB. 3 VIN1 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 6 dB gain, strapped to VIN2 for Av = 15.5 dB. 4 VIN2 Balanced Differential Input. Biased to VCOM, typically ac-coupled. Input for AV = 12 dB gain, strapped to VIN1 for Av = 15.5 dB. 5, 6, 7, 8 VCC Positive Supply. 9 VCOM Common-Mode Voltage. A voltage applied to this pin sets the common-mode voltage of the input and output. Typically decoupled to ground with a 0.1 µF capacitor. With no reference applied, input and output common mode floats to midsupply (VCC/2). 10 VON Balanced Differential Output. Biased to VCOM, typically ac-coupled. 11 VOP Balanced Differential Output. Biased to VCOM, typically ac-coupled. 12 ENBL Enable. Apply positive voltage (1.0 V < ENBL < VCC) to activate device. 13, 14, 15, 16 GND Ground. Connect to low impedance ground. EP Exposed Paddle. Connect to a low impedance thermal and electrical ground plane. Rev. G | Page 7 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION BASIC STRUCTURE APPLICATIONS INFORMATION BASIC CONNECTIONS INPUT AND OUTPUT INTERFACING Single-Ended Input to Differential Output GAIN ADJUSTMENT AND INTERFACING ADC INTERFACING LAYOUT CONSIDERATIONS SOLDERING INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
