Datasheet AD8229-KGD (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 1 nV/√Hz Low Noise 210°C Instrumentation Amplifier |
| Pages / Page | 8 / 6 — AD8229-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. … |
| File Format / Size | PDF / 148 Kb |
| Document Language | English |

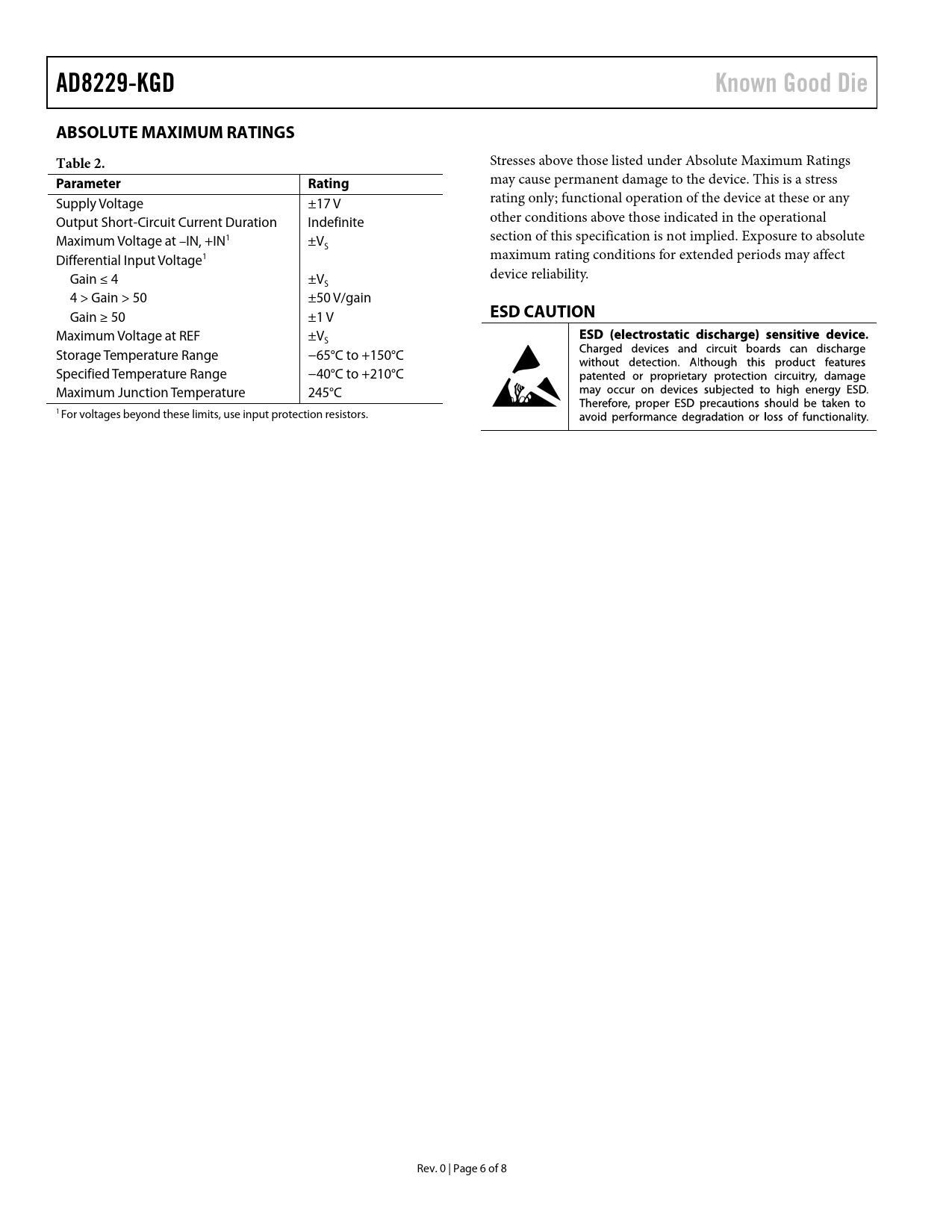

AD8229-KGD. Known Good Die. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6
AD8229-KGD Known Good Die ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage ±17 V rating only; functional operation of the device at these or any Output Short-Circuit Current Duration Indefinite other conditions above those indicated in the operational Maximum Voltage at –IN, +IN1 ±V section of this specification is not implied. Exposure to absolute S Differential Input Voltage1 maximum rating conditions for extended periods may affect Gain ≤ 4 ±V device reliability. S 4 > Gain > 50 ±50 V/gain Gain ≥ 50 ±1 V
ESD CAUTION
Maximum Voltage at REF ±V S Storage Temperature Range −65°C to +150°C Specified Temperature Range −40°C to +210°C Maximum Junction Temperature 245°C 1 For voltages beyond these limits, use input protection resistors. Rev. 0 | Page 6 of 8 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Absolute Maximum Ratings ESD Caution Pad Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
