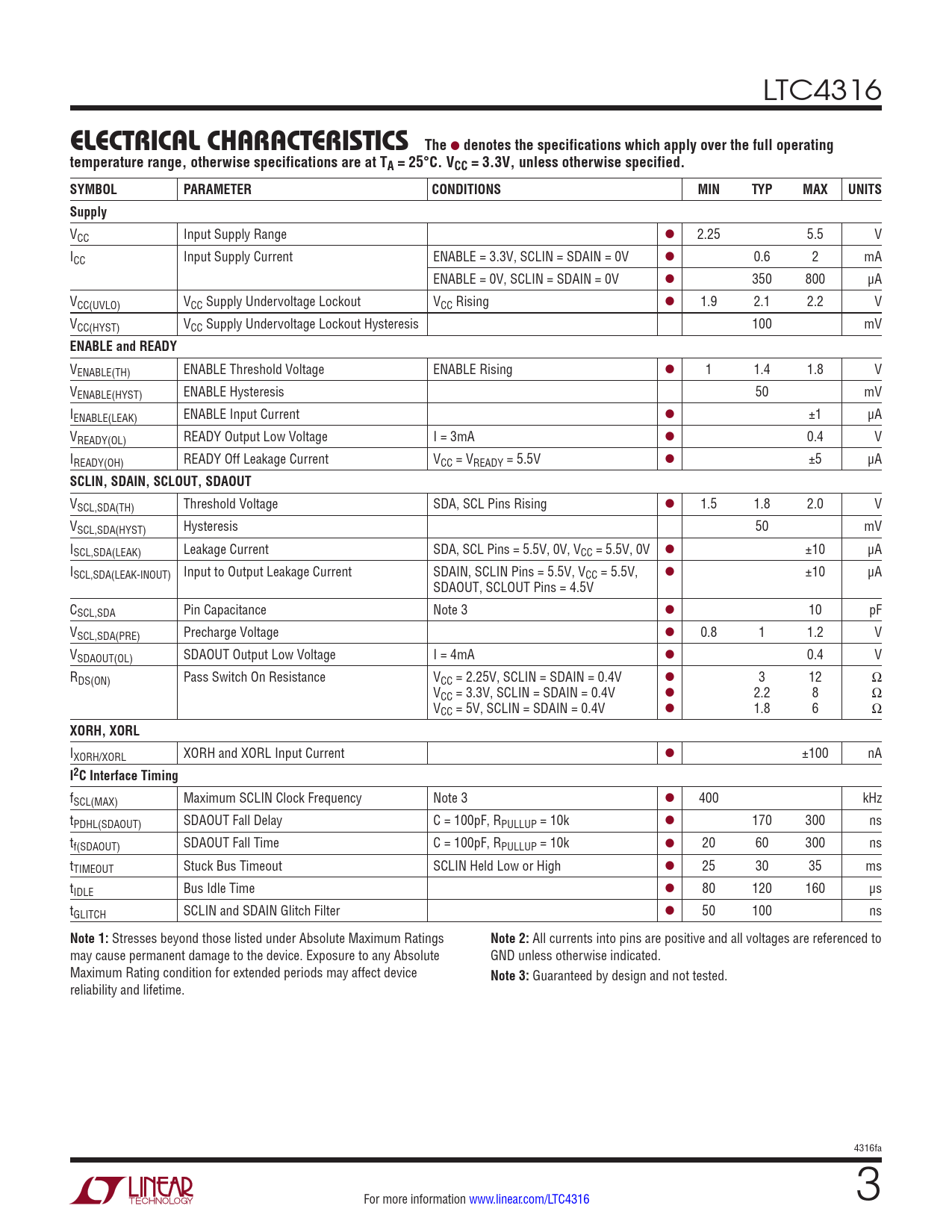

ELECTRICAL. CHARACTERISTICS The. denotes the specifications which apply over the full operating
Model Line for this Datasheet
Text Version of Document
LTC4316
ELECTRICAL CHARACTERISTICS The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at TA = 25°C. VCC = 3.3V, unless otherwise specified. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS Supply
VCC Input Supply Range l 2.25 5.5 V ICC Input Supply Current ENABLE = 3.3V, SCLIN = SDAIN = 0V l 0.6 2 mA ENABLE = 0V, SCLIN = SDAIN = 0V l 350 800 μA VCC(UVLO) VCC Supply Undervoltage Lockout VCC Rising l 1.9 2.1 2.2 V VCC(HYST) VCC Supply Undervoltage Lockout Hysteresis 100 mV
ENABLE and READY
VENABLE(TH) ENABLE Threshold Voltage ENABLE Rising l 1 1.4 1.8 V VENABLE(HYST) ENABLE Hysteresis 50 mV IENABLE(LEAK) ENABLE Input Current l ±1 μA VREADY(OL) READY Output Low Voltage I = 3mA l 0.4 V IREADY(OH) READY Off Leakage Current VCC = VREADY = 5.5V l ±5 μA
SCLIN, SDAIN, SCLOUT, SDAOUT
VSCL,SDA(TH) Threshold Voltage SDA, SCL Pins Rising l 1.5 1.8 2.0 V VSCL,SDA(HYST) Hysteresis 50 mV ISCL,SDA(LEAK) Leakage Current SDA, SCL Pins = 5.5V, 0V, VCC = 5.5V, 0V l ±10 μA ISCL,SDA(LEAK-INOUT) Input to Output Leakage Current SDAIN, SCLIN Pins = 5.5V, VCC = 5.5V, l ±10 μA SDAOUT, SCLOUT Pins = 4.5V CSCL,SDA Pin Capacitance Note 3 l 10 pF VSCL,SDA(PRE) Precharge Voltage l 0.8 1 1.2 V VSDAOUT(OL) SDAOUT Output Low Voltage I = 4mA l 0.4 V RDS(ON) Pass Switch On Resistance VCC = 2.25V, SCLIN = SDAIN = 0.4V l 3 12 Ω VCC = 3.3V, SCLIN = SDAIN = 0.4V l 2.2 8 Ω VCC = 5V, SCLIN = SDAIN = 0.4V l 1.8 6 Ω
XORH, XORL
IXORH/XORL XORH and XORL Input Current l ±100 nA
I2C Interface Timing
fSCL(MAX) Maximum SCLIN Clock Frequency Note 3 l 400 kHz tPDHL(SDAOUT) SDAOUT Fall Delay C = 100pF, RPULLUP = 10k l 170 300 ns tf(SDAOUT) SDAOUT Fall Time C = 100pF, RPULLUP = 10k l 20 60 300 ns tTIMEOUT Stuck Bus Timeout SCLIN Held Low or High l 25 30 35 ms tIDLE Bus Idle Time l 80 120 160 μs tGLITCH SCLIN and SDAIN Glitch Filter l 50 100 ns
