Datasheet ADXL377 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | Small, Low Power, 3-Axis ±200 g Accelerometer |
| Pages / Page | 13 / 6 — Data Sheet. ADXL377. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. UT O. … |
| Revision | B |
| File Format / Size | PDF / 317 Kb |
| Document Language | English |

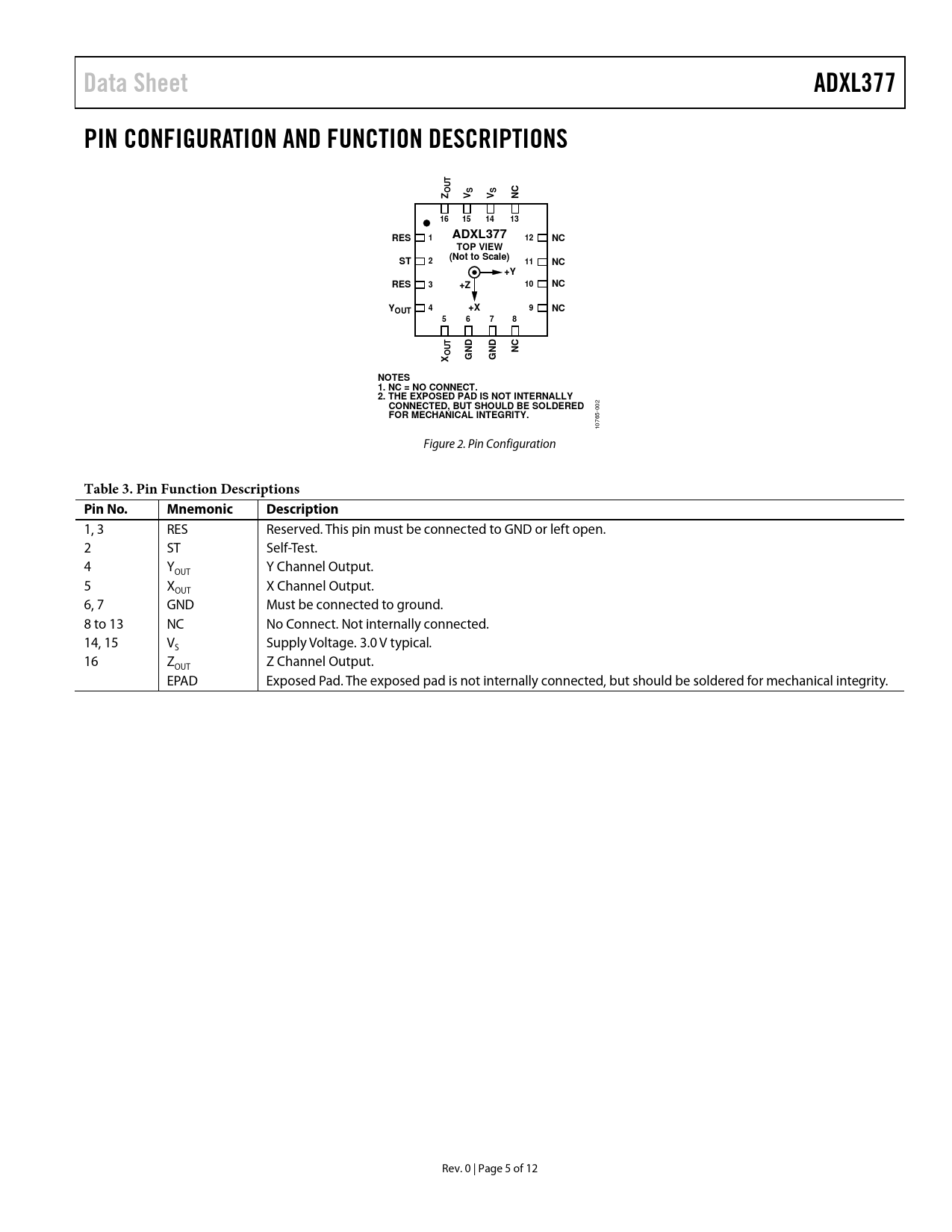

Data Sheet. ADXL377. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. UT O. RES. TOP VIEW. (Not to Scale). YOUT
Model Line for this Datasheet
Text Version of Document
Data Sheet ADXL377 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS UT O S S Z V V NC 16 15 14 13 RES ADXL377 1 12 NC TOP VIEW (Not to Scale) ST 2 11 NC +Y RES 3 10 +Z NC YOUT 4 +X 9 NC 5 6 7 8 UT O ND ND NC X G G NOTES 1. NC = NO CONNECT. 2. THE EXPOSED PAD IS NOT INTERNALLY CONNECTED, BUT SHOULD BE SOLDERED
002
FOR MECHANICAL INTEGRITY.
10765- Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1, 3 RES Reserved. This pin must be connected to GND or left open. 2 ST Self-Test. 4 Y Y Channel Output. OUT 5 X X Channel Output. OUT 6, 7 GND Must be connected to ground. 8 to 13 NC No Connect. Not internally connected. 14, 15 V Supply Voltage. 3.0 V typical. S 16 Z Z Channel Output. OUT EPAD Exposed Pad. The exposed pad is not internally connected, but should be soldered for mechanical integrity. Rev. 0 | Page 5 of 12 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Mechanical Sensor Performance Applications Information Power Supply Decoupling Setting the Bandwidth Using CX, CY, and CZ Self-Test Selecting Filter Characteristics: Noise/Bandwidth Trade-Off Axes of Acceleration Sensitivity Layout and Design Recommendations Outline Dimensions Ordering Guide
