ADIS16209. Data Sheet. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter. Rating. Table 4. Package Characteristics

ADIS16209 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3 Parameter Rating Table 4 Package Characteristics

Model Line for this Datasheet

Text Version of Document

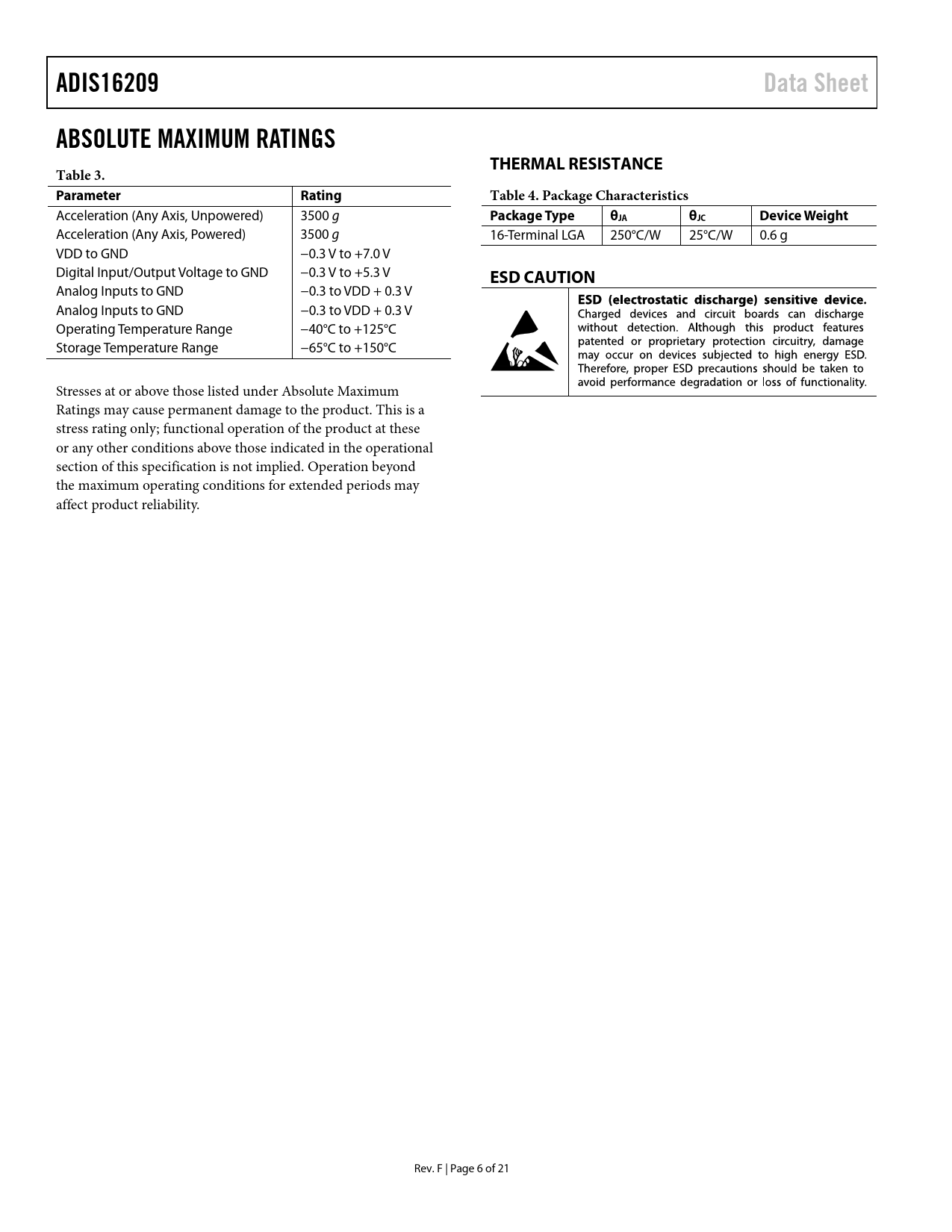

ADIS16209 Data Sheet ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3. Parameter Rating Table 4. Package Characteristics
Acceleration (Any Axis, Unpowered) 3500 g
Package Type θJA θJC Device Weight
Acceleration (Any Axis, Powered) 3500 g 16-Terminal LGA 250°C/W 25°C/W 0.6 g VDD to GND −0.3 V to +7.0 V Digital Input/Output Voltage to GND −0.3 V to +5.3 V
ESD CAUTION
Analog Inputs to GND −0.3 to VDD + 0.3 V Analog Inputs to GND −0.3 to VDD + 0.3 V Operating Temperature Range −40°C to +125°C Storage Temperature Range −65°C to +150°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. F | Page 6 of 21 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS TIMING DIAGRAMS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS RECOMMENDED PAD GEOMETRY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION BASIC OPERATION OUTPUT DATA REGISTERS Accelerometers Horizontal Incline Angle Vertical Incline Angle Internal Temperature Power Supply Auxiliary ADC OPERATION CONTROL REGISTERS Internal Sample Rate Power Management Digital Filtering Digital I/O Lines Data-Ready I/O Indicator Self-Test General-Purpose I/O Auxiliary DAC Global Commands CALIBRATION REGISTERS ALARM REGISTERS Status APPLICATIONS INFORMATION POWER SUPPLY CONSIDERATIONS Power-On-Reset Function Transient Current from VDD Ramp Rate Filter Settling ASSEMBLY INTERFACE BOARD OUTLINE DIMENSIONS ORDERING GUIDE
