DescriptionSingle-Supply, Rail-to-Rail Low Power FET-Input Dual Op Amp
Pages / Page17 / 7 — DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12636
File Format / SizePDF / 101 Kb
Document LanguageEnglish

DLA LAND AND MARITIME. COLUMBUS, OHIO. 16236. V62/12636

DLA LAND AND MARITIME COLUMBUS, OHIO 16236 V62/12636

Model Line for this Datasheet

Text Version of Document

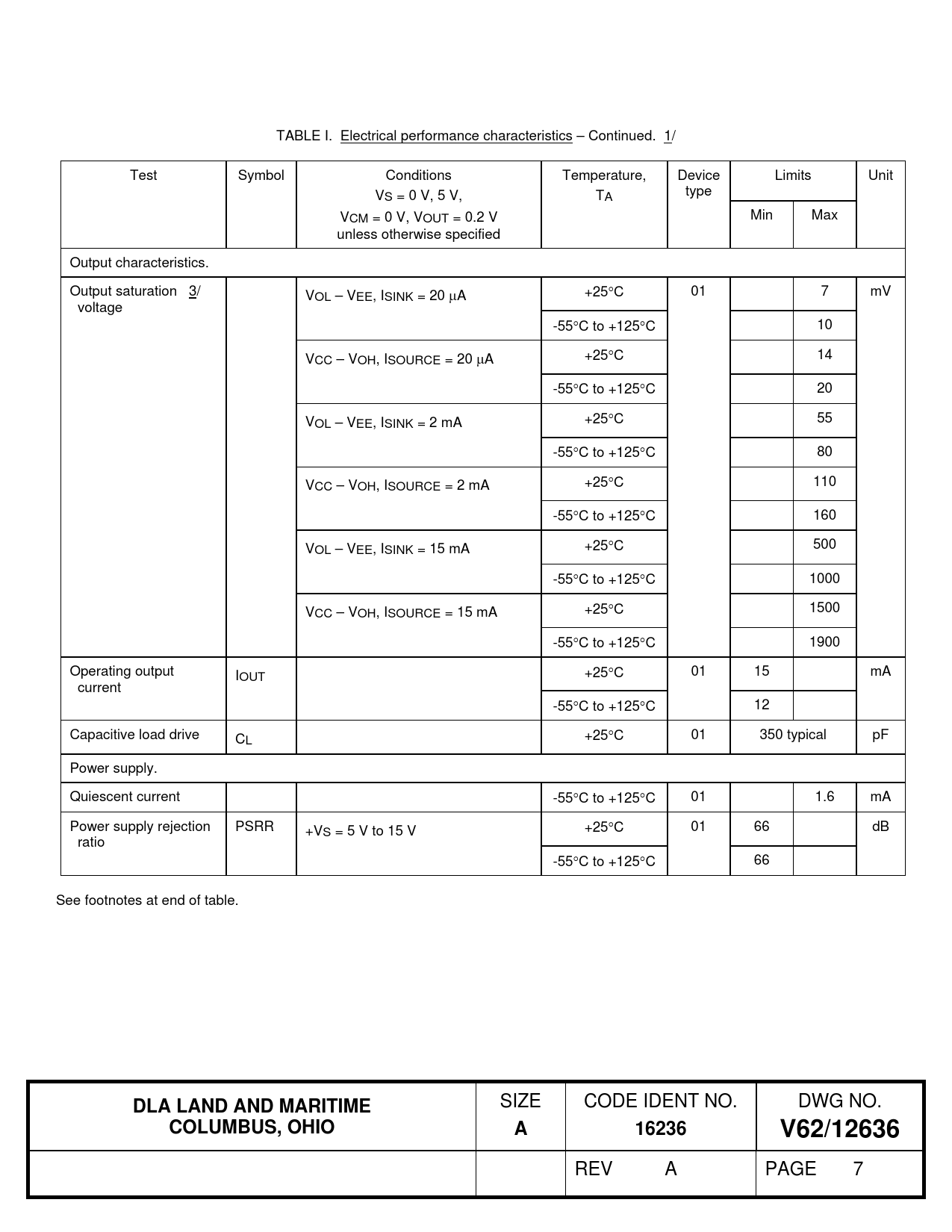

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit VS = 0 V, 5 V, TA type VCM = 0 V, VOUT = 0.2 V Min Max unless otherwise specified Output characteristics. Output saturation 3/ VOL – VEE, ISINK = 20 A +25C 01 7 mV voltage -55C to +125C 10 VCC – VOH, ISOURCE = 20 A +25C 14 -55C to +125C 20 VOL – VEE, ISINK = 2 mA +25C 55 -55C to +125C 80 VCC – VOH, ISOURCE = 2 mA +25C 110 -55C to +125C 160 VOL – VEE, ISINK = 15 mA +25C 500 -55C to +125C 1000 VCC – VOH, ISOURCE = 15 mA +25C 1500 -55C to +125C 1900 Operating output IOUT +25C 01 15 mA current -55C to +125C 12 Capacitive load drive CL +25C 01 350 typical pF Power supply. Quiescent current -55C to +125C 01 1.6 mA Power supply rejection PSRR +VS = 5 V to 15 V +25C 01 66 dB ratio -55C to +125C 66 See footnotes at end of table.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/12636
REV A PAGE 7
