Datasheet RH1016M (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | UltraFast Precision 10ns Comparator |
| Pages / Page | 6 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Positive Supply Current. Negative … |
| File Format / Size | PDF / 119 Kb |
| Document Language | English |

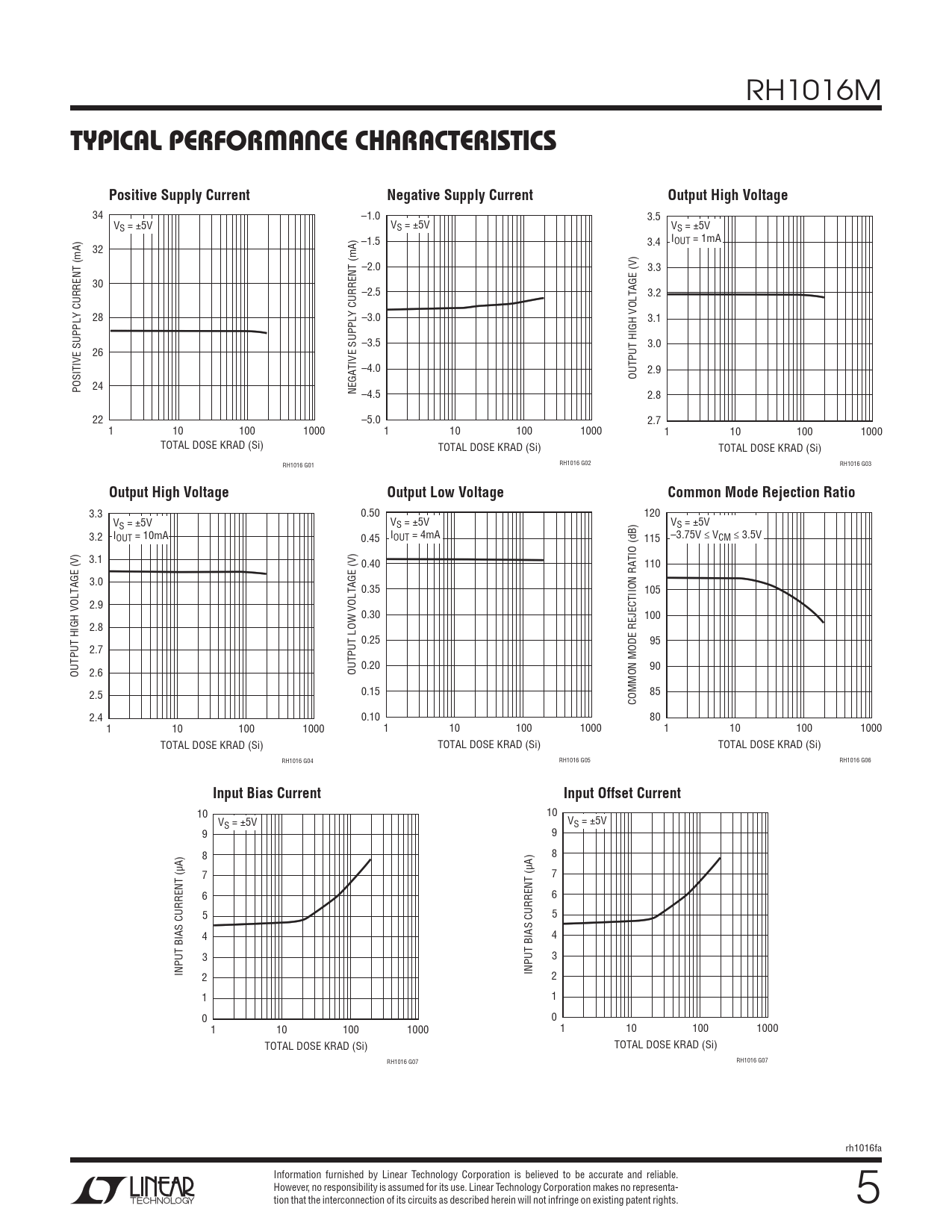

TYPICAL PERFORMANCE CHARACTERISTICS. Positive Supply Current. Negative Supply Current. Output High Voltage. Output Low Voltage
Model Line for this Datasheet
Text Version of Document
RH1016M
TYPICAL PERFORMANCE CHARACTERISTICS Positive Supply Current Negative Supply Current Output High Voltage
34 –1.0 3.5 VS = ±5V VS = ±5V VS = ±5V –1.5 3.4 IOUT = 1mA 32 –2.0 3.3 30 –2.5 3.2 28 –3.0 3.1 –3.5 3.0 26 –4.0 2.9 OUTPUT HIGH VOLTAGE (V) POSITIVE SUPPLY CURRENT (mA) 24 NEGATIVE SUPPLY CURRENT (mA) –4.5 2.8 22 –5.0 2.7 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1016 G01 RH1016 G02 RH1016 G03
Output High Voltage Output Low Voltage Common Mode Rejection Ratio
3.3 0.50 120 VS = ±5V VS = ±5V VS = ±5V 3.2 IOUT = 10mA 0.45 IOUT = 4mA 115 –3.75V ≤ VCM ≤ 3.5V 3.1 0.40 110 3.0 0.35 105 2.9 0.30 100 2.8 0.25 95 2.7 0.20 90 OUTPUT HIGH VOLTAGE (V) 2.6 OUTPUT LOW VOLTAGE (V) 2.5 0.15 85 COMMON MODE REJECTIION RATIO (dB) 2.4 0.10 80 1 10 100 1000 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1016 G04 RH1016 G05 RH1016 G06
Input Bias Current Input Offset Current
10 10 V V S = ±5V S = ±5V 9 9 8 8 7 7 6 6 5 5 4 4 3 3 INPUT BIAS CURRENT (μA) INPUT BIAS CURRENT (μA) 2 2 1 1 0 0 1 10 100 1000 1 10 100 1000 TOTAL DOSE KRAD (Si) TOTAL DOSE KRAD (Si) RH1016 G07 RH1016 G07 rh1016fa Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. 5
