TABLE 4. POST BURN-IN ENDPOINTS AND DELTA LIMIT REQUIREMENTS TA = 25°C. ENDPOINT LIMITS. DELTA LIMITS. PARAMETER. CONDITIONS. MIN
Model Line for this Datasheet
Text Version of Document
RH3080MK DICE/DWF

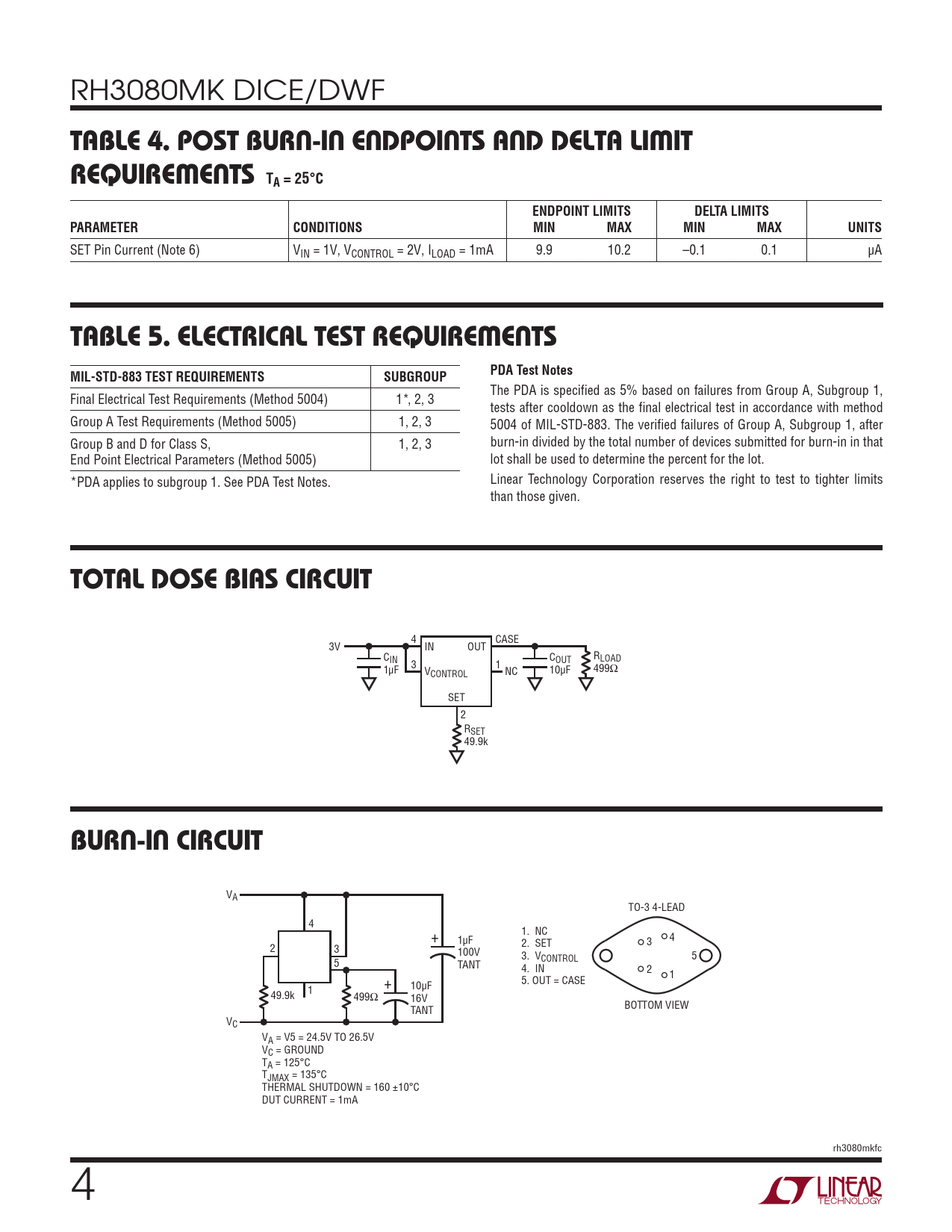

TABLE 4. POST BURN-IN ENDPOINTS AND DELTA LIMIT REQUIREMENTS TA = 25°C ENDPOINT LIMITS DELTA LIMITS PARAMETER CONDITIONS MIN MAX MIN MAX UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 9.9 10.2 –0.1 0.1 µA
TABLE 5. ELECTRICAL TEST REQUIREMENTS MIL-STD-883 TEST REQUIREMENTS SUBGROUP PDA Test Notes
The PDA is specified as 5% based on failures from Group A, Subgroup 1, Final Electrical Test Requirements (Method 5004) 1*, 2, 3 tests after cooldown as the final electrical test in accordance with method Group A Test Requirements (Method 5005) 1, 2, 3 5004 of MIL-STD-883. The verified failures of Group A, Subgroup 1, after Group B and D for Class S, 1, 2, 3 burn-in divided by the total number of devices submitted for burn-in in that End Point Electrical Parameters (Method 5005) lot shall be used to determine the percent for the lot. *PDA applies to subgroup 1. See PDA Test Notes. Linear Technology Corporation reserves the right to test to tighter limits than those given.
TOTAL DOSE BIAS CIRCUIT
4 CASE 3V IN OUT CIN C R 3 1 OUT LOAD 1µF VCONTROL NC 10µF 499Ω SET 2 RSET 49.9k
BURN-IN CIRCUIT
VA TO-3 4-LEAD 4 + 1. NC 1µF 4 3 2 3 2. SET 100V 3. V 5 5 TANT CONTROL 4. IN 2 5. OUT = CASE 1 1 + 10µF 49.9k 499Ω 16V TANT BOTTOM VIEW VC VA = V5 = 24.5V TO 26.5V VC = GROUND TA = 125°C TJMAX = 135°C THERMAL SHUTDOWN = 160 ±10°C DUT CURRENT = 1mA rh3080mkfc 4
TABLE 4. POST BURN-IN ENDPOINTS AND DELTA LIMIT REQUIREMENTS TA = 25°C ENDPOINT LIMITS DELTA LIMITS PARAMETER CONDITIONS MIN MAX MIN MAX UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 9.9 10.2 –0.1 0.1 µA
TABLE 5. ELECTRICAL TEST REQUIREMENTS MIL-STD-883 TEST REQUIREMENTS SUBGROUP PDA Test Notes
The PDA is specified as 5% based on failures from Group A, Subgroup 1, Final Electrical Test Requirements (Method 5004) 1*, 2, 3 tests after cooldown as the final electrical test in accordance with method Group A Test Requirements (Method 5005) 1, 2, 3 5004 of MIL-STD-883. The verified failures of Group A, Subgroup 1, after Group B and D for Class S, 1, 2, 3 burn-in divided by the total number of devices submitted for burn-in in that End Point Electrical Parameters (Method 5005) lot shall be used to determine the percent for the lot. *PDA applies to subgroup 1. See PDA Test Notes. Linear Technology Corporation reserves the right to test to tighter limits than those given.
TOTAL DOSE BIAS CIRCUIT
4 CASE 3V IN OUT CIN C R 3 1 OUT LOAD 1µF VCONTROL NC 10µF 499Ω SET 2 RSET 49.9k
BURN-IN CIRCUIT
VA TO-3 4-LEAD 4 + 1. NC 1µF 4 3 2 3 2. SET 100V 3. V 5 5 TANT CONTROL 4. IN 2 5. OUT = CASE 1 1 + 10µF 49.9k 499Ω 16V TANT BOTTOM VIEW VC VA = V5 = 24.5V TO 26.5V VC = GROUND TA = 125°C TJMAX = 135°C THERMAL SHUTDOWN = 160 ±10°C DUT CURRENT = 1mA rh3080mkfc 4
