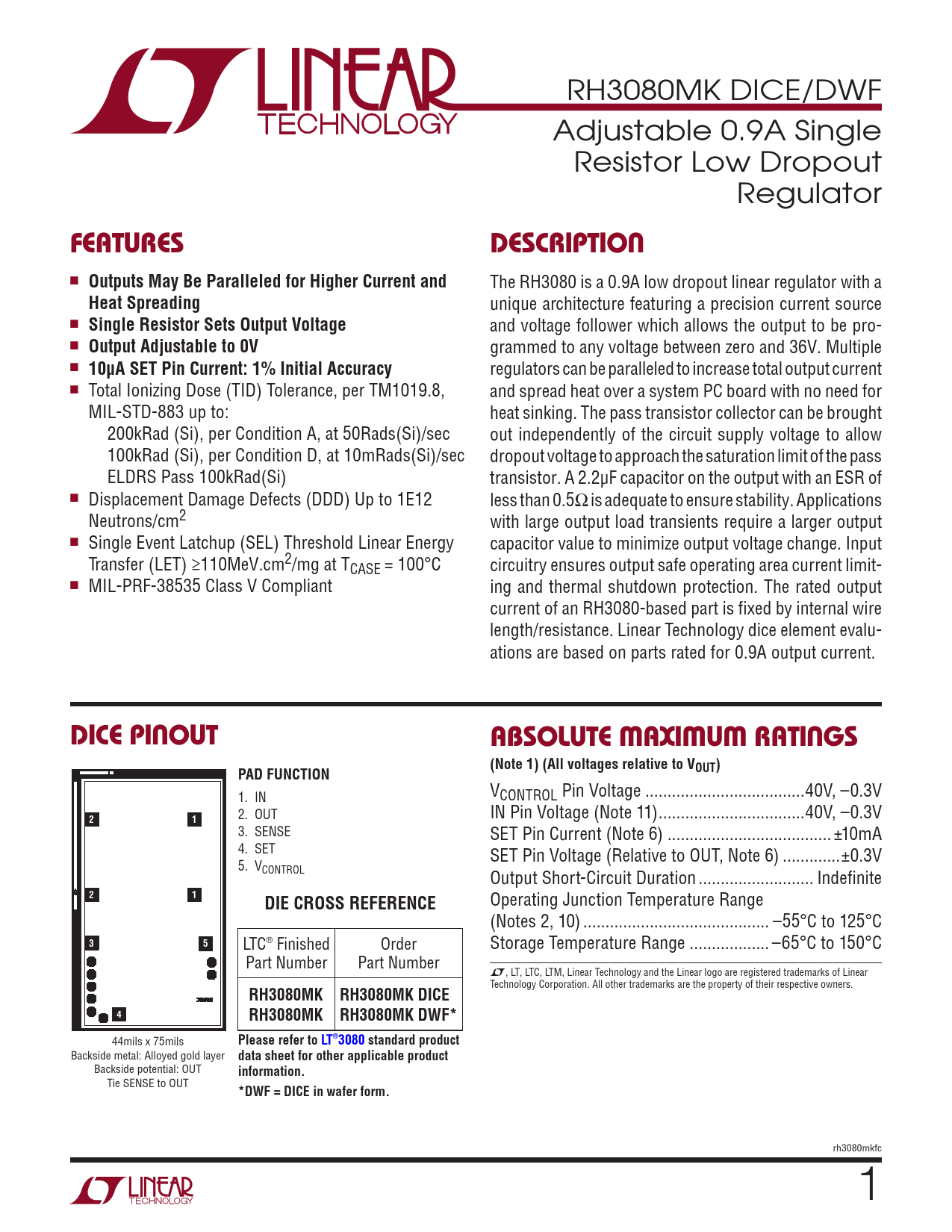

RH3080MK DICE/DWF Adjustable 0.9A Single Resistor Low Dropout Regulator
FEATURES DESCRIPTION
n
Outputs May Be Paralleled for Higher Current and
The RH3080 is a 0.9A low dropout linear regulator with a
Heat Spreading
unique architecture featuring a precision current source n
Single Resistor Sets Output Voltage
and voltage follower which allows the output to be pro- n
Output Adjustable to 0V
grammed to any voltage between zero and 36V. Multiple n
10µA SET Pin Current: 1% Initial Accuracy
regulators can be paralleled to increase total output current n Total Ionizing Dose (TID) Tolerance, per TM1019.8, and spread heat over a system PC board with no need for MIL-STD-883 up to: heat sinking. The pass transistor collector can be brought 200kRad (Si), per Condition A, at 50Rads(Si)/sec out independently of the circuit supply voltage to allow 100kRad (Si), per Condition D, at 10mRads(Si)/sec dropout voltage to approach the saturation limit of the pass ELDRS Pass 100kRad(Si) transistor. A 2.2µF capacitor on the output with an ESR of n Displacement Damage Defects (DDD) Up to 1E12 less than 0.5Ω is adequate to ensure stability. Applications Neutrons/cm2 with large output load transients require a larger output n Single Event Latchup (SEL) Threshold Linear Energy capacitor value to minimize output voltage change. Input Transfer (LET) ≥110MeV.cm2/mg at TCASE = 100°C circuitry ensures output safe operating area current limit- n MIL-PRF-38535 Class V Compliant ing and thermal shutdown protection. The rated output current of an RH3080-based part is fixed by internal wire length/resistance. Linear Technology dice element evalu- ations are based on parts rated for 0.9A output current.
DICE PINOUT ABSOLUTE MAXIMUM RATINGS (Note 1) (All voltages relative to V PAD FUNCTION OUT)
V 1. IN CONTROL Pin Voltage ..40V, –0.3V 2. OUT IN Pin Voltage (Note 11) ...40V, –0.3V
2 1
3. SENSE SET Pin Current (Note 6) ... ±10mA 4. SET SET Pin Voltage (Relative to OUT, Note 6) ...±0.3V 5. VCONTROL Output Short-Circuit Duration .. Indefinite
2 1 DIE CROSS REFERENCE
Operating Junction Temperature Range (Notes 2, 10) .. –55°C to 125°C
3 5
LTC® Finished Order Storage Temperature Range .. –65°C to 150°C Part Number Part Number L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear Technology Corporation. All other trademarks are the property of their respective owners.
RH3080MK RH3080MK DICE 4 RH3080MK RH3080MK DWF*
44mils x 75mils
Please refer to LT®3080 standard product
Backside metal: Alloyed gold layer
data sheet for other applicable product
Backside potential: OUT
information.
Tie SENSE to OUT
*DWF = DICE in wafer form.
rh3080mkfc 1
