| Description | Adjustable 0.9A Single Resistor Low Dropout Regulator |
| Pages / Page | 6 / 2 — TABLE 1. DICE/DWF ELECTRICAL TEST LIMITS TA = 25°C (Notes 2, 5, 8, 9, 12) … |
| File Format / Size | PDF / 319 Kb |
| Document Language | English |

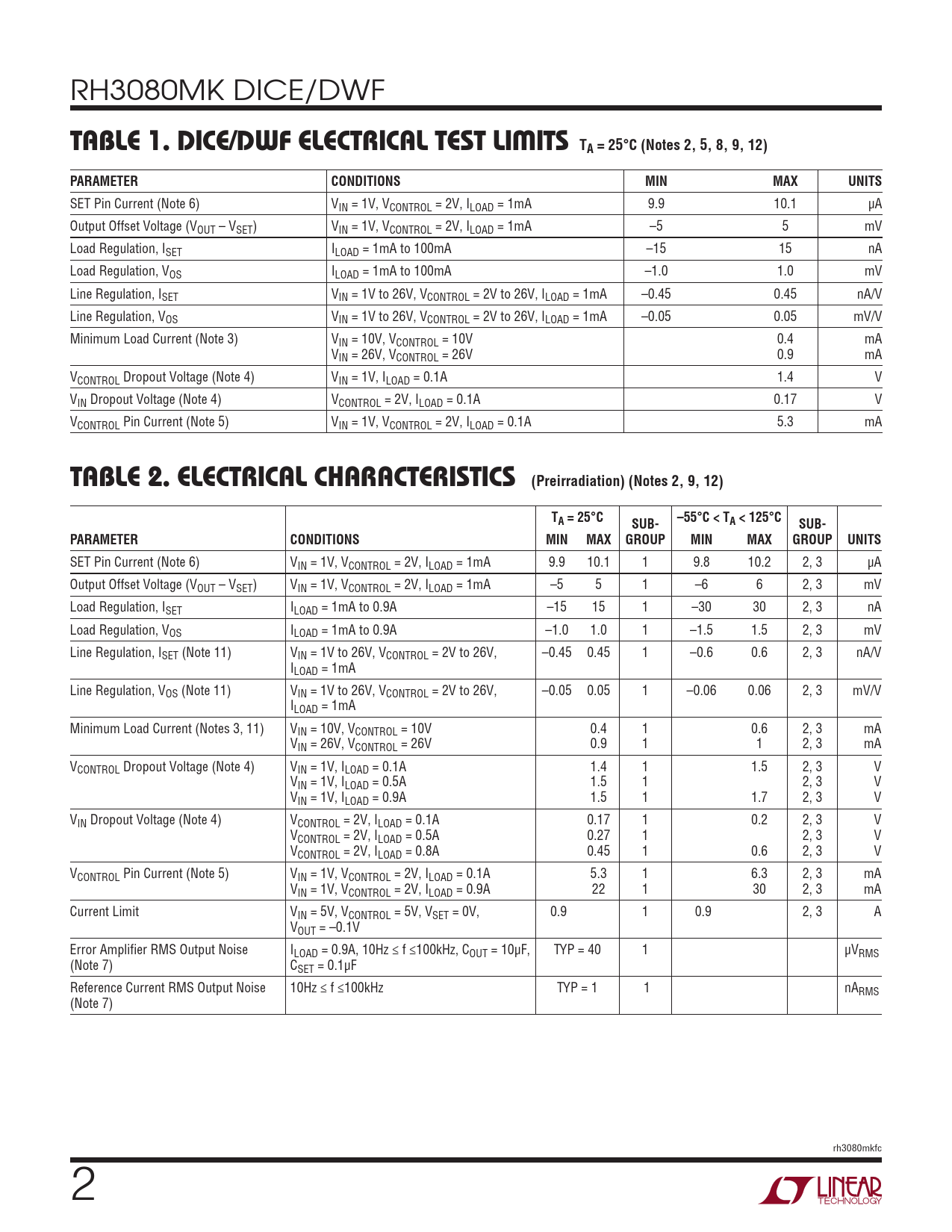

TABLE 1. DICE/DWF ELECTRICAL TEST LIMITS TA = 25°C (Notes 2, 5, 8, 9, 12) PARAMETER. CONDITIONS. MIN. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
RH3080MK DICE/DWF
TABLE 1. DICE/DWF ELECTRICAL TEST LIMITS TA = 25°C (Notes 2, 5, 8, 9, 12) PARAMETER CONDITIONS MIN MAX UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 9.9 10.1 µA Output Offset Voltage (VOUT – VSET) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA –5 5 mV Load Regulation, ISET ILOAD = 1mA to 100mA –15 15 nA Load Regulation, VOS ILOAD = 1mA to 100mA –1.0 1.0 mV Line Regulation, ISET VIN = 1V to 26V, VCONTROL = 2V to 26V, ILOAD = 1mA –0.45 0.45 nA/V Line Regulation, VOS VIN = 1V to 26V, VCONTROL = 2V to 26V, ILOAD = 1mA –0.05 0.05 mV/V Minimum Load Current (Note 3) VIN = 10V, VCONTROL = 10V 0.4 mA VIN = 26V, VCONTROL = 26V 0.9 mA VCONTROL Dropout Voltage (Note 4) VIN = 1V, ILOAD = 0.1A 1.4 V VIN Dropout Voltage (Note 4) VCONTROL = 2V, ILOAD = 0.1A 0.17 V VCONTROL Pin Current (Note 5) VIN = 1V, VCONTROL = 2V, ILOAD = 0.1A 5.3 mA
TABLE 2. ELECTRICAL CHARACTERISTICS (Preirradiation) (Notes 2, 9, 12) TA = 25°C SUB- –55°C < TA < 125°C SUB- PARAMETER CONDITIONS MIN MAX GROUP MIN MAX GROUP UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 9.9 10.1 1 9.8 10.2 2, 3 µA Output Offset Voltage (VOUT – VSET) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA –5 5 1 –6 6 2, 3 mV Load Regulation, ISET ILOAD = 1mA to 0.9A –15 15 1 –30 30 2, 3 nA Load Regulation, VOS ILOAD = 1mA to 0.9A –1.0 1.0 1 –1.5 1.5 2, 3 mV Line Regulation, ISET (Note 11) VIN = 1V to 26V, VCONTROL = 2V to 26V, –0.45 0.45 1 –0.6 0.6 2, 3 nA/V ILOAD = 1mA Line Regulation, VOS (Note 11) VIN = 1V to 26V, VCONTROL = 2V to 26V, –0.05 0.05 1 –0.06 0.06 2, 3 mV/V ILOAD = 1mA Minimum Load Current (Notes 3, 11) VIN = 10V, VCONTROL = 10V 0.4 1 0.6 2, 3 mA VIN = 26V, VCONTROL = 26V 0.9 1 1 2, 3 mA VCONTROL Dropout Voltage (Note 4) VIN = 1V, ILOAD = 0.1A 1.4 1 1.5 2, 3 V VIN = 1V, ILOAD = 0.5A 1.5 1 2, 3 V VIN = 1V, ILOAD = 0.9A 1.5 1 1.7 2, 3 V VIN Dropout Voltage (Note 4) VCONTROL = 2V, ILOAD = 0.1A 0.17 1 0.2 2, 3 V VCONTROL = 2V, ILOAD = 0.5A 0.27 1 2, 3 V VCONTROL = 2V, ILOAD = 0.8A 0.45 1 0.6 2, 3 V VCONTROL Pin Current (Note 5) VIN = 1V, VCONTROL = 2V, ILOAD = 0.1A 5.3 1 6.3 2, 3 mA VIN = 1V, VCONTROL = 2V, ILOAD = 0.9A 22 1 30 2, 3 mA Current Limit VIN = 5V, VCONTROL = 5V, VSET = 0V, 0.9 1 0.9 2, 3 A VOUT = –0.1V Error Amplifier RMS Output Noise ILOAD = 0.9A, 10Hz ≤ f ≤100kHz, COUT = 10µF, TYP = 40 1 µVRMS (Note 7) CSET = 0.1µF Reference Current RMS Output Noise 10Hz ≤ f ≤100kHz TYP = 1 1 nARMS (Note 7) rh3080mkfc 2
TABLE 1. DICE/DWF ELECTRICAL TEST LIMITS TA = 25°C (Notes 2, 5, 8, 9, 12) PARAMETER CONDITIONS MIN MAX UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 9.9 10.1 µA Output Offset Voltage (VOUT – VSET) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA –5 5 mV Load Regulation, ISET ILOAD = 1mA to 100mA –15 15 nA Load Regulation, VOS ILOAD = 1mA to 100mA –1.0 1.0 mV Line Regulation, ISET VIN = 1V to 26V, VCONTROL = 2V to 26V, ILOAD = 1mA –0.45 0.45 nA/V Line Regulation, VOS VIN = 1V to 26V, VCONTROL = 2V to 26V, ILOAD = 1mA –0.05 0.05 mV/V Minimum Load Current (Note 3) VIN = 10V, VCONTROL = 10V 0.4 mA VIN = 26V, VCONTROL = 26V 0.9 mA VCONTROL Dropout Voltage (Note 4) VIN = 1V, ILOAD = 0.1A 1.4 V VIN Dropout Voltage (Note 4) VCONTROL = 2V, ILOAD = 0.1A 0.17 V VCONTROL Pin Current (Note 5) VIN = 1V, VCONTROL = 2V, ILOAD = 0.1A 5.3 mA
