Datasheet RH3080MK DICE/DWF (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Adjustable 0.9A Single Resistor Low Dropout Regulator |
| Pages / Page | 6 / 3 — TABLE 3. ELECTRICAL CHARACTERISTICS (Postirradiation) (Notes 2, 9, 12) |
| File Format / Size | PDF / 319 Kb |
| Document Language | English |

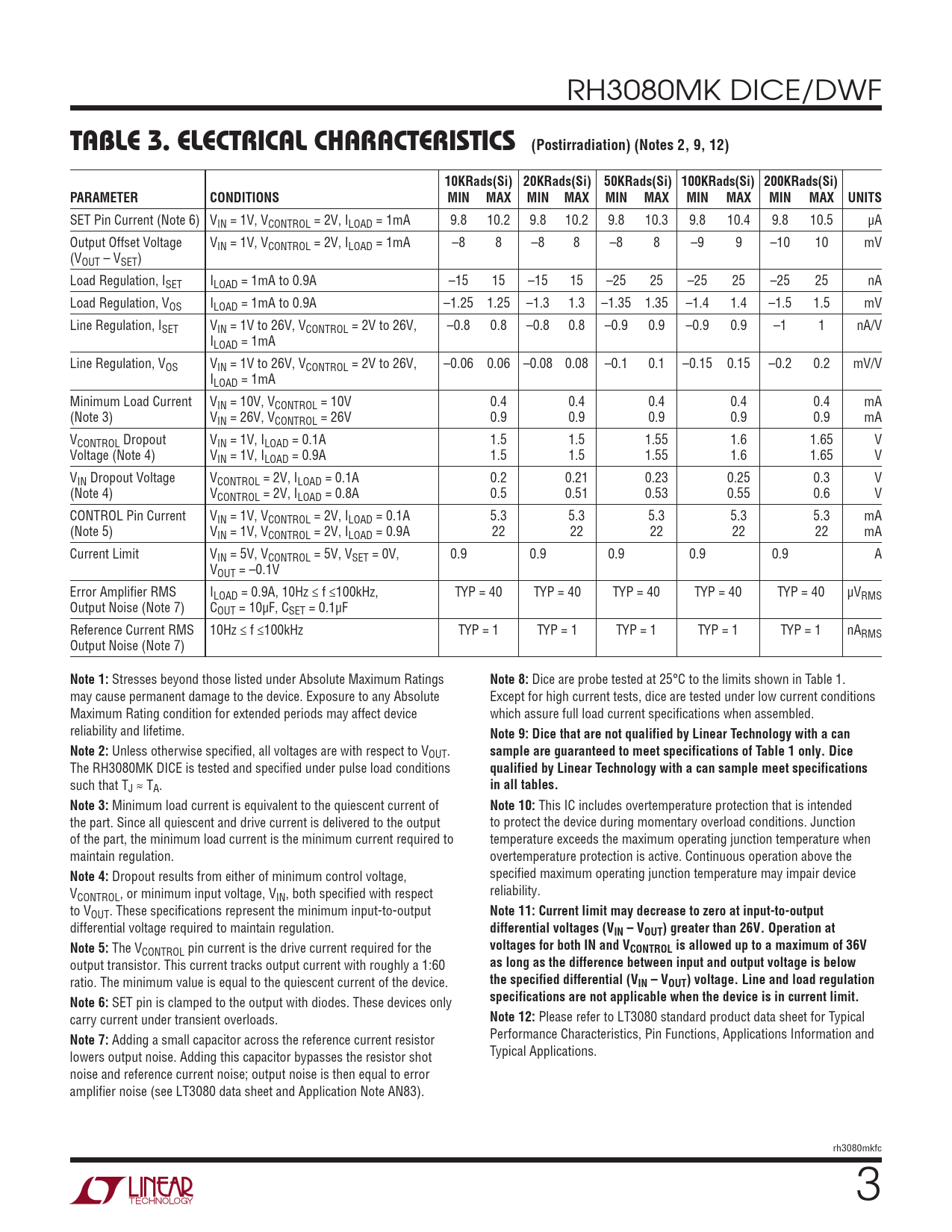

TABLE 3. ELECTRICAL CHARACTERISTICS (Postirradiation) (Notes 2, 9, 12)
Model Line for this Datasheet
Text Version of Document
RH3080MK DICE/DWF
TABLE 3. ELECTRICAL CHARACTERISTICS (Postirradiation) (Notes 2, 9, 12) 10KRads(Si) 20KRads(Si) 50KRads(Si) 100KRads(Si) 200KRads(Si) PARAMETER CONDITIONS MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 9.8 10.2 9.8 10.2 9.8 10.3 9.8 10.4 9.8 10.5 µA Output Offset Voltage VIN = 1V, VCONTROL = 2V, ILOAD = 1mA –8 8 –8 8 –8 8 –9 9 –10 10 mV (VOUT – VSET) Load Regulation, ISET ILOAD = 1mA to 0.9A –15 15 –15 15 –25 25 –25 25 –25 25 nA Load Regulation, VOS ILOAD = 1mA to 0.9A –1.25 1.25 –1.3 1.3 –1.35 1.35 –1.4 1.4 –1.5 1.5 mV Line Regulation, ISET VIN = 1V to 26V, VCONTROL = 2V to 26V, –0.8 0.8 –0.8 0.8 –0.9 0.9 –0.9 0.9 –1 1 nA/V ILOAD = 1mA Line Regulation, VOS VIN = 1V to 26V, VCONTROL = 2V to 26V, –0.06 0.06 –0.08 0.08 –0.1 0.1 –0.15 0.15 –0.2 0.2 mV/V ILOAD = 1mA Minimum Load Current VIN = 10V, VCONTROL = 10V 0.4 0.4 0.4 0.4 0.4 mA (Note 3) VIN = 26V, VCONTROL = 26V 0.9 0.9 0.9 0.9 0.9 mA VCONTROL Dropout VIN = 1V, ILOAD = 0.1A 1.5 1.5 1.55 1.6 1.65 V Voltage (Note 4) VIN = 1V, ILOAD = 0.9A 1.5 1.5 1.55 1.6 1.65 V VIN Dropout Voltage VCONTROL = 2V, ILOAD = 0.1A 0.2 0.21 0.23 0.25 0.3 V (Note 4) VCONTROL = 2V, ILOAD = 0.8A 0.5 0.51 0.53 0.55 0.6 V CONTROL Pin Current VIN = 1V, VCONTROL = 2V, ILOAD = 0.1A 5.3 5.3 5.3 5.3 5.3 mA (Note 5) VIN = 1V, VCONTROL = 2V, ILOAD = 0.9A 22 22 22 22 22 mA Current Limit VIN = 5V, VCONTROL = 5V, VSET = 0V, 0.9 0.9 0.9 0.9 0.9 A VOUT = –0.1V Error Amplifier RMS ILOAD = 0.9A, 10Hz ≤ f ≤100kHz, TYP = 40 TYP = 40 TYP = 40 TYP = 40 TYP = 40 µVRMS Output Noise (Note 7) COUT = 10µF, CSET = 0.1µF Reference Current RMS 10Hz ≤ f ≤100kHz TYP = 1 TYP = 1 TYP = 1 TYP = 1 TYP = 1 nARMS Output Noise (Note 7)
