Datasheet ADM3260 (Analog Devices) - 7

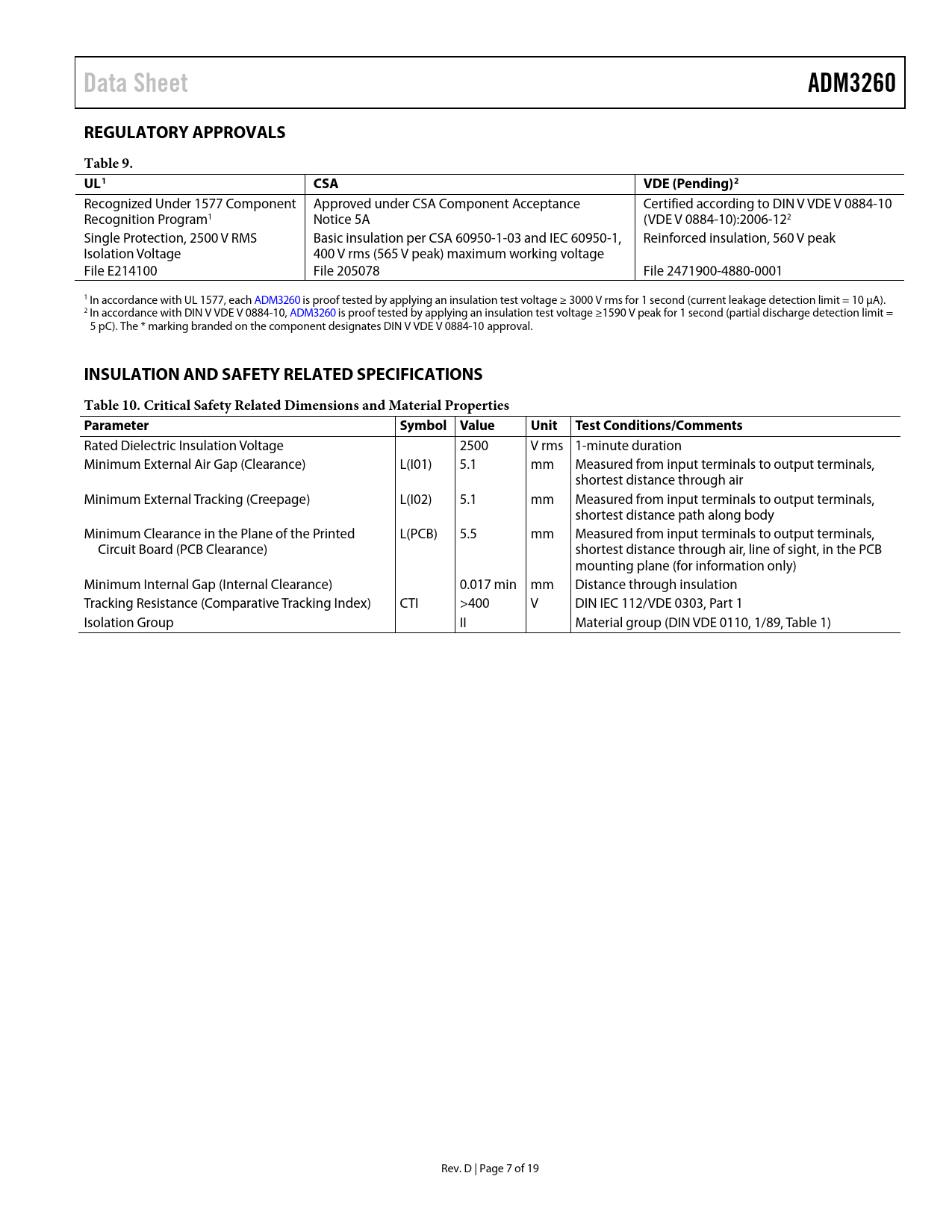

Data Sheet ADM3260 REGULATORY APPROVALS Table 9. UL1 CSA VDE (Pending)2
Recognized Under 1577 Component Approved under CSA Component Acceptance Certified according to DIN V VDE V 0884-10 Recognition Program1 Notice 5A (VDE V 0884-10):2006-122 Single Protection, 2500 V RMS Basic insulation per CSA 60950-1-03 and IEC 60950-1, Reinforced insulation, 560 V peak Isolation Voltage 400 V rms (565 V peak) maximum working voltage File E214100 File 205078 File 2471900-4880-0001 1 In accordance with UL 1577, each ADM3260 is proof tested by applying an insulation test voltage ≥ 3000 V rms for 1 second (current leakage detection limit = 10 µA). 2 In accordance with DIN V VDE V 0884-10, ADM3260 is proof tested by applying an insulation test voltage ≥1590 V peak for 1 second (partial discharge detection limit = 5 pC). The * marking branded on the component designates DIN V VDE V 0884-10 approval.
INSULATION AND SAFETY RELATED SPECIFICATIONS Table 10. Critical Safety Related Dimensions and Material Properties Parameter Symbol Value Unit Test Conditions/Comments
Rated Dielectric Insulation Voltage 2500 V rms 1-minute duration Minimum External Air Gap (Clearance) L(I01) 5.1 mm Measured from input terminals to output terminals, shortest distance through air Minimum External Tracking (Creepage) L(I02) 5.1 mm Measured from input terminals to output terminals, shortest distance path along body Minimum Clearance in the Plane of the Printed L(PCB) 5.5 mm Measured from input terminals to output terminals, Circuit Board (PCB Clearance) shortest distance through air, line of sight, in the PCB mounting plane (for information only) Minimum Internal Gap (Internal Clearance) 0.017 min mm Distance through insulation Tracking Resistance (Comparative Tracking Index) CTI >400 V DIN IEC 112/VDE 0303, Part 1 Isolation Group II Material group (DIN VDE 0110, 1/89, Table 1) Rev. D | Page 7 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY ELECTRICAL CHARACTERISTICS—3.3 V PRIMARY INPUT SUPPLY/3.3 V SECONDARY ISOLATED SUPPLY DC-TO-DC CONVERTER CHARACTERISTICS DIGITAL ISOLATOR DC SPECIFICATIONS DIGITAL ISOLATOR AC SPECIFICATIONS PACKAGE CHARACTERISTICS REGULATORY APPROVALS INSULATION AND SAFETY RELATED SPECIFICATIONS DIN V VDE V 0884-10 (VDE V 0884-10) INSULATION CHARACTERISTICS RECOMMENDED OPERATING CONDITIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION VISO VOLTAGE TRUTH TABLE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CONDITION APPLICATIONS INFORMATION FUNCTIONAL DESCRIPTION DIGITAL ISOLATOR STARTUP TYPICAL APPLICATION DIAGRAM PCB LAYOUT THERMAL ANALYSIS EMI CONSIDERATIONS INSULATION LIFETIME APPLICATIONS EXAMPLE OUTLINE DIMENSIONS ORDERING GUIDE
