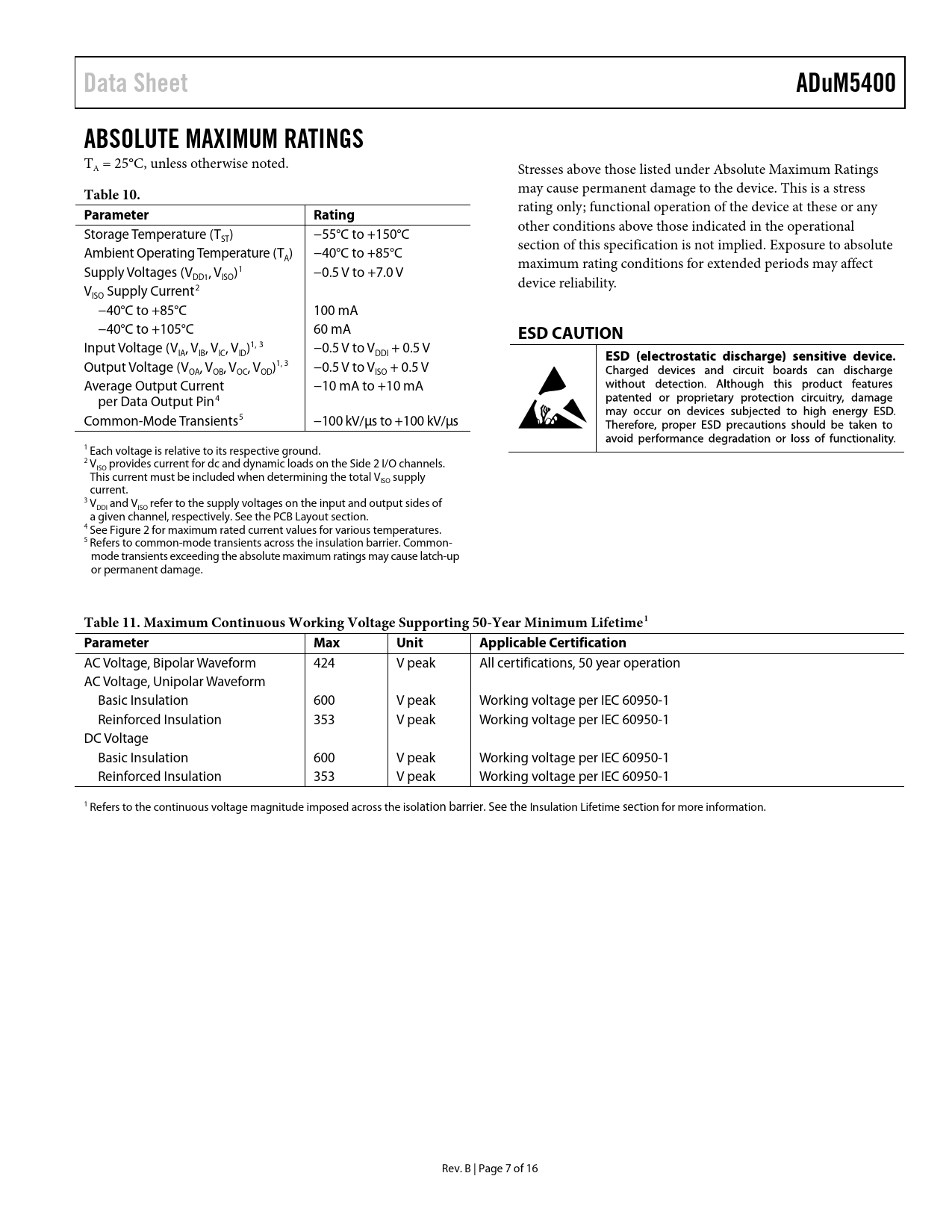

Data Sheet ADuM5400 ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings
Table 10.
may cause permanent damage to the device. This is a stress
Parameter Rating
rating only; functional operation of the device at these or any Storage Temperature (T ) −55°C to +150°C other conditions above those indicated in the operational ST section of this specification is not implied. Exposure to absolute Ambient Operating Temperature (T ) −40°C to +85°C A maximum rating conditions for extended periods may affect Supply Voltages (V , V )1 −0.5 V to +7.0 V DD1 ISO device reliability. V Supply Current2 ISO −40°C to +85°C 100 mA −40°C to +105°C 60 mA
ESD CAUTION
Input Voltage (V , V , V , V )1, 3 −0.5 V to V + 0.5 V IA IB IC ID DDI Output Voltage (V , V , V , V )1, 3 −0.5 V to V + 0.5 V OA OB OC OD ISO Average Output Current −10 mA to +10 mA per Data Output Pin4 Common-Mode Transients5 −100 kV/µs to +100 kV/µs 1 Each voltage is relative to its respective ground. 2 VISO provides current for dc and dynamic loads on the Side 2 I/O channels. This current must be included when determining the total VISO supply current. 3 VDDI and VISO refer to the supply voltages on the input and output sides of a given channel, respectively. See the PCB Layout section. 4 See Figure 2 for maximum rated current values for various temperatures. 5 Refers to common-mode transients across the insulation barrier. Common- mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage.
Table 11. Maximum Continuous Working Voltage Supporting 50-Year Minimum Lifetime1 Parameter Max Unit Applicable Certification
AC Voltage, Bipolar Waveform 424 V peak All certifications, 50 year operation AC Voltage, Unipolar Waveform Basic Insulation 600 V peak Working voltage per IEC 60950-1 Reinforced Insulation 353 V peak Working voltage per IEC 60950-1 DC Voltage Basic Insulation 600 V peak Working voltage per IEC 60950-1 Reinforced Insulation 353 V peak Working voltage per IEC 60950-1 1 Refers to the continuous voltage magnitude imposed across the isolation barrier. See the Insulation Lifetime section for more information. Rev. B | Page 7 of 16 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Electrical Characteristics Package Characteristics Regulatory Information Insulation and Safety Related Specifications IEC 60747-5-2 (VDE 0884, Part 2):2003-01 Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Terminology Applications Information PCB Layout EMI Considerations Propagation Delay Parameters DC Correctness and Magnetic Field Immunity Power Consumption Power Considerations Thermal Analysis Insulation Lifetime Outline Dimensions Ordering Guide
