Datasheet ADUM5400 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | Quad-Channel Isolator with Integrated DC-to-DC Converter |
| Pages / Page | 16 / 8 — ADuM5400. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD1 … |
| Revision | B |
| File Format / Size | PDF / 339 Kb |
| Document Language | English |
ADuM5400. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VDD1 1. 16 VISO. GND1 2. 15 GNDISO. VIA 3. 14 VOA. VIB 4. 13 VOB. TOP VIEW
Model Line for this Datasheet
Text Version of Document
link to page 8 link to page 8

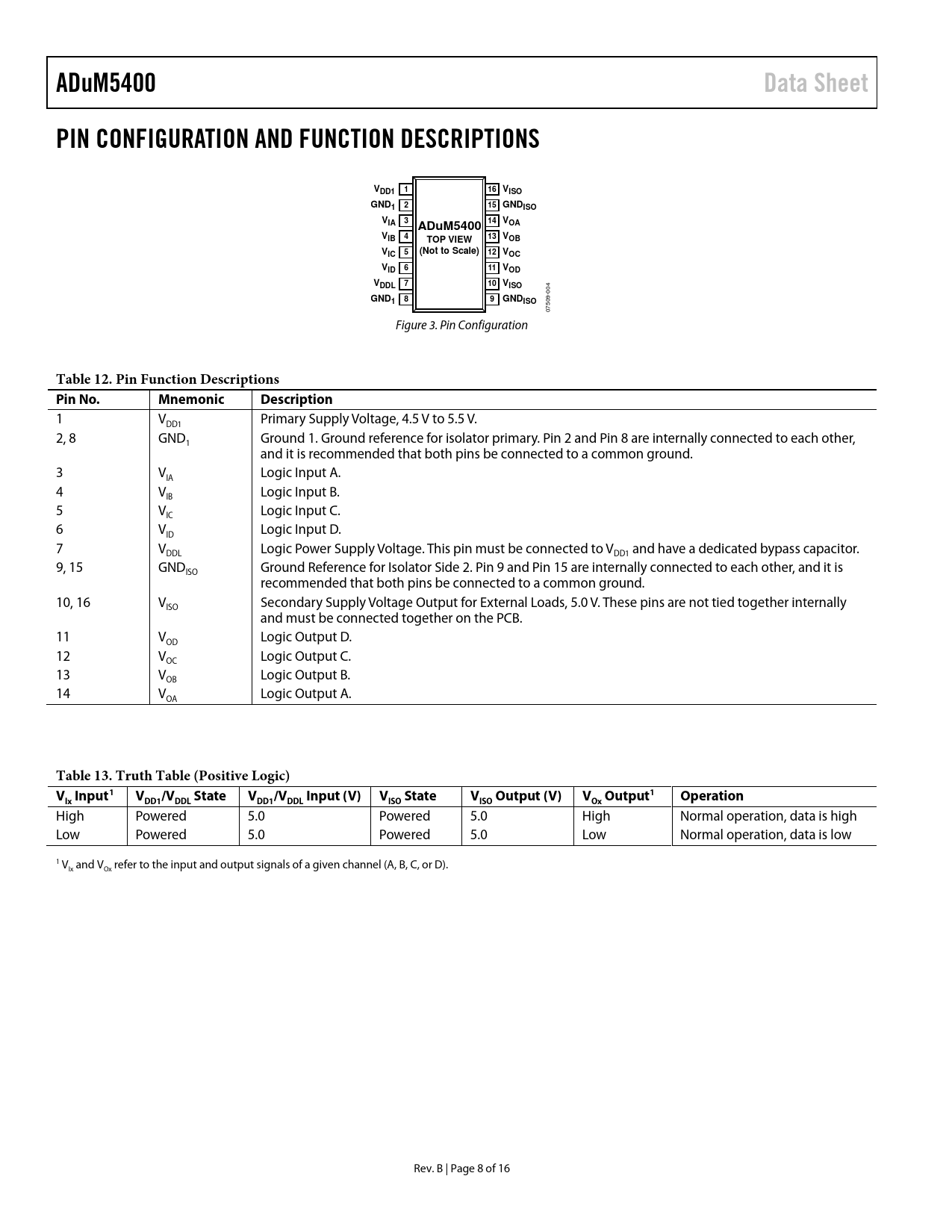

ADuM5400 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VDD1 1 16 VISO GND1 2 15 GNDISO VIA 3 14 VOA ADuM5400 VIB 4 13 VOB TOP VIEW V (Not to Scale) IC 5 12 VOC VID 6 11 VOD VDDL 7 10 VISO
004
GND1 8 9 GNDISO
07509- Figure 3. Pin Configuration
Table 12. Pin Function Descriptions Pin No. Mnemonic Description
1 V Primary Supply Voltage, 4.5 V to 5.5 V. DD1 2, 8 GND Ground 1. Ground reference for isolator primary. Pin 2 and Pin 8 are internally connected to each other, 1 and it is recommended that both pins be connected to a common ground. 3 V Logic Input A. IA 4 V Logic Input B. IB 5 V Logic Input C. IC 6 V Logic Input D. ID 7 V Logic Power Supply Voltage. This pin must be connected to V and have a dedicated bypass capacitor. DDL DD1 9, 15 GND Ground Reference for Isolator Side 2. Pin 9 and Pin 15 are internally connected to each other, and it is ISO recommended that both pins be connected to a common ground. 10, 16 V Secondary Supply Voltage Output for External Loads, 5.0 V. These pins are not tied together internally ISO and must be connected together on the PCB. 11 V Logic Output D. OD 12 V Logic Output C. OC 13 V Logic Output B. OB 14 V Logic Output A. OA
Table 13. Truth Table (Positive Logic) V Input1 V /V State V /V Input (V) V State V Output (V) V Output1 Operation Ix DD1 DDL DD1 DDL ISO ISO Ox
High Powered 5.0 Powered 5.0 High Normal operation, data is high Low Powered 5.0 Powered 5.0 Low Normal operation, data is low 1 VIx and VOx refer to the input and output signals of a given channel (A, B, C, or D). Rev. B | Page 8 of 16 Document Outline Features Applications General Description Functional Block Diagram Table of Contents Revision History Specifications Electrical Characteristics Package Characteristics Regulatory Information Insulation and Safety Related Specifications IEC 60747-5-2 (VDE 0884, Part 2):2003-01 Insulation Characteristics Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Terminology Applications Information PCB Layout EMI Considerations Propagation Delay Parameters DC Correctness and Magnetic Field Immunity Power Consumption Power Considerations Thermal Analysis Insulation Lifetime Outline Dimensions Ordering Guide
