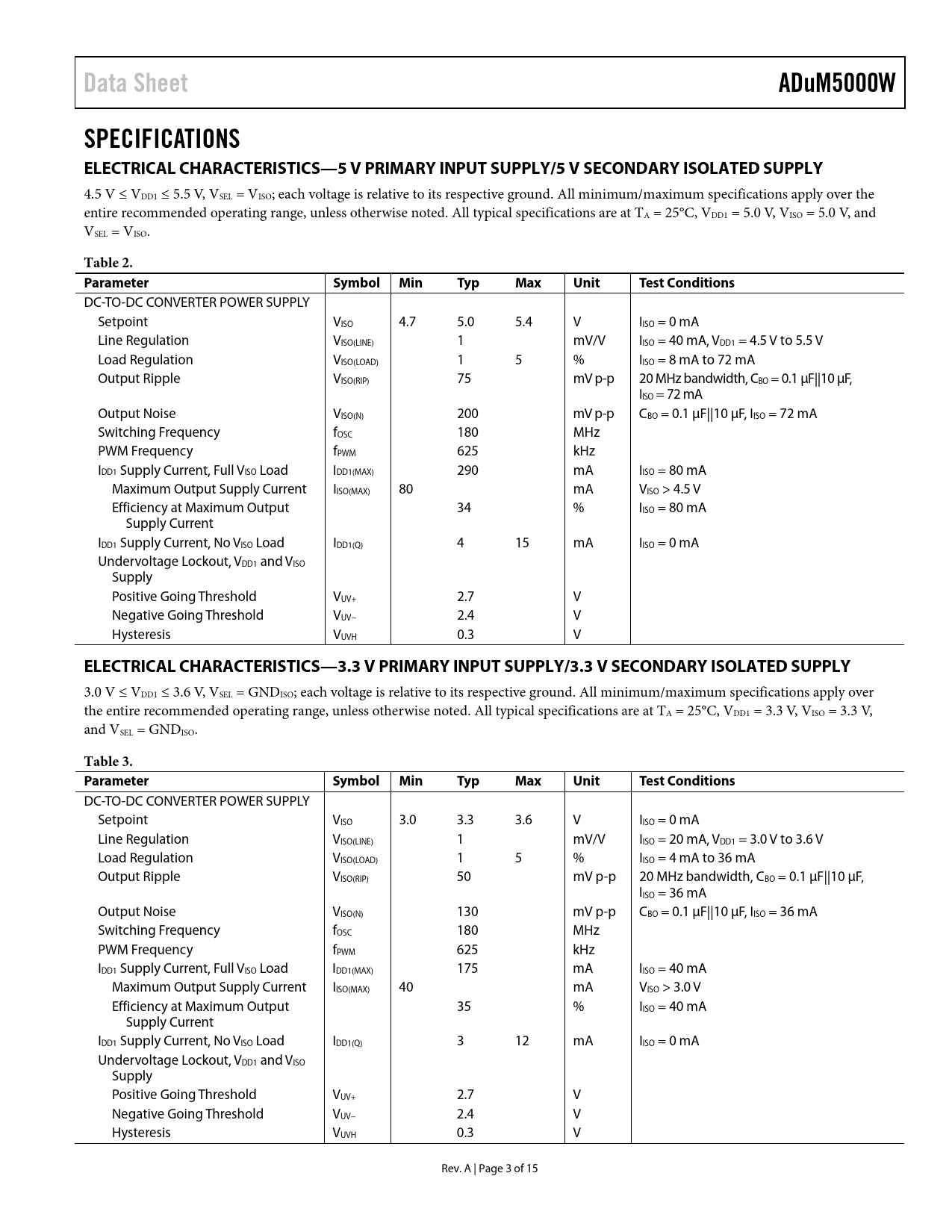

Data Sheet ADuM5000W SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5 V PRIMARY INPUT SUPPLY/5 V SECONDARY ISOLATED SUPPLY
4.5 V ≤ VDD1 ≤ 5.5 V, VSEL = VISO; each voltage is relative to its respective ground. All minimum/maximum specifications apply over the entire recommended operating range, unless otherwise noted. All typical specifications are at TA = 25°C, VDD1 = 5.0 V, VISO = 5.0 V, and VSEL = VISO.
Table 2. Parameter Symbol Min Typ Max Unit Test Conditions
DC-TO-DC CONVERTER POWER SUPPLY Setpoint VISO 4.7 5.0 5.4 V IISO = 0 mA Line Regulation VISO(LINE) 1 mV/V IISO = 40 mA, VDD1 = 4.5 V to 5.5 V Load Regulation VISO(LOAD) 1 5 % IISO = 8 mA to 72 mA Output Ripple VISO(RIP) 75 mV p-p 20 MHz bandwidth, CBO = 0.1 µF||10 µF, IISO = 72 mA Output Noise VISO(N) 200 mV p-p CBO = 0.1 μF||10 μF, IISO = 72 mA Switching Frequency fOSC 180 MHz PWM Frequency fPWM 625 kHz IDD1 Supply Current, Full VISO Load IDD1(MAX) 290 mA IISO = 80 mA Maximum Output Supply Current IISO(MAX) 80 mA VISO > 4.5 V Efficiency at Maximum Output 34 % IISO = 80 mA Supply Current IDD1 Supply Current, No VISO Load IDD1(Q) 4 15 mA IISO = 0 mA Undervoltage Lockout, VDD1 and VISO Supply Positive Going Threshold VUV+ 2.7 V Negative Going Threshold VUV− 2.4 V Hysteresis VUVH 0.3 V
